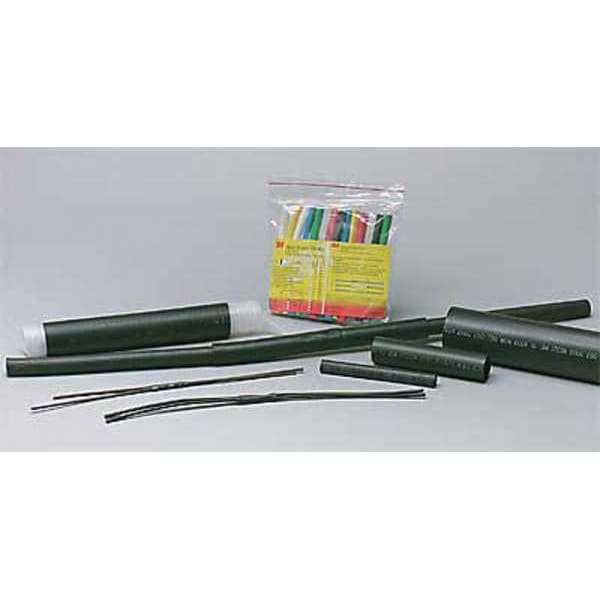

Adhesive Lined Heat Shrink Tube, Thin Wall, 2:1 I.D. Shrink Ratio, 0.13 in I.D. Before Shrinking
| Item | Adhesive Lined Heat Shrink Tube |
|---|---|
| Shrink Ratio | 2:1 |
| Wall Type | Thin Wall |
| Shrink Tubing I.D. Before Shrinking | 1/8 in |
| Shrink Tubing I.D. After Shrinking | 0.06 in |
| Material | Polyolefin |
| Color | Black |
| Length | 6 in |
| Use with Wire Size | 22 to 16 AWG |
| Temp. Range | -67° to 230°F |
| Min. Shrink Temp. | 250°F |
| Shrink Tubing Material Type | Flexible |
| Standards | CSA Certified, RoHS 2011/65/EU, SAE AS23053/4, UL Listed |
| Flame Retardant | Yes |
| Shrink Tubing Wall Thickness After Shrinking | 0.027 in |
| Max. Voltage | 800 V |
| Features | Moisture Seal Protection |
| Tubing Wall Type | Thin Wall |
| Adhesive Lined | Yes |
| Shrink Tubing Properties | Abrasion Resistant, Acid and Alkali Resistant |
| Max. Temp. Rating | 230 deg F |
| Min. Temp. Rating | -67 deg F |
| Package Style | Individual Pieces |
| Dielectric Strength | 600 V |
| Wall Thickness After Shrinking | 0.03 in |
| I.D. After Shrinking | 0.06 in |
| I.D. Before Shrinking | 0.13 in |
| Shrink Tube Material Type | Flexible |
| Package Quantity | 10 |
