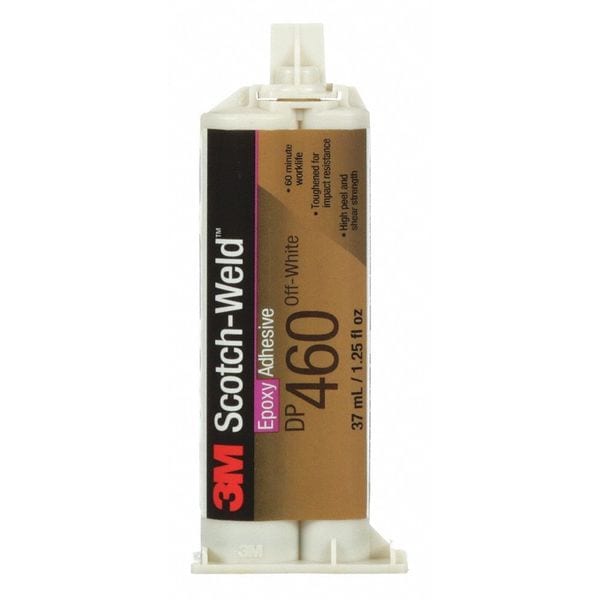

Epoxy Adhesive, DP460 Series, Off-White, Dual-Cartridge, 12 PK, 2:01 Mix Ratio, 4 hr Functional Cure
| Item | Epoxy Adhesive |
|---|---|
| Type | Duo-Pak |
| Application | For use with the 3M(TM) EPX(TM) Plus II Applicator |
| Color | Off-White |
| For Use On | Applicator, Mixing Tip |
| Container Type | Dual-Cartridge |
| Functional Cure | 4 hr |
| Full Cure | 24 hr |
| Mixing Ratio | 2:01 |
| Shear Strength | 4,500 psi |
| Temp. Range | -65 to 300 deg F |
| Working Time | 1 hr |
| Series | DP460 |
| Epoxy Max. Temp | 300 Degrees F and Above |
| Work Life | 1 hr |
| Temp. Range (F) | -65 to 300 |
| Epoxy Color | Off-White |
| Structural Adhesive Type | Epoxy Adhesive |
| Shear Strength (PSI) | 4,500 |
| Epoxy Container | Dual-Cartridge |
| Size | 6.76 fl oz |
| For Use With | Applicator, Mixing Tip |
| Includes | Resin and Hardener |
| Green Environmental Attribute | Does Not Contain Methylene Chloride |
| Coverage | 320 sq ft/gal |
| Resin Type | Epoxy |
| Application Method | No Special Application |
| Interior/Exterior | Exterior, Interior |
| Cured Color | Off-White |
| VOC Content Weight | 0 g/L |
| Compatible Applicator (Grainger Part Number) | 794HJ1 |
| Water Resistance | Not Water-Resistant |
| Total Volume | 200 mL |
| Maximum Viscosity | 50,000 cps |
| Minimum Performance Temperature | -65 deg F |
| Cure Method | Ambient |
| Tensile Strength | 4,500 psi |
| Resin Color | White |
| VOC Content Weight Percentage | 0% |
| Hardness at Full Cure | 75 to 80 Shore D |
| Minimum Viscosity | 8,000 cps |
| Standards | UL 94 HB |
| Hardener Color | Amber |
| Primary Applications | Aerospace |
| Non-Sagging | No |
| Materials Bonded | Ceramic, Concrete, Glass, Masonry, Metal, Plastic, Rubber, Wood |
| Low Odor | No |
| Marine Grade | No |
| Features | High Fatigue Resistant, Impact Resistant |
| Maximum Performance Temperature | 180 deg F |
| Included Components | Hardener, Resin |
| Maximum Application Temperature | 80 deg F |
| Peel Strength | 60 lb/in |
| Compatible Mixer Tip | 3M EPX |
| Full Cure Time | 24 hr |
| Compatible Applicator | 3M EPX |
| Weight | 14 oz |
| Container Type - Adhesives | Dual-Cartridge |
| Country of Origin (subject to change) | United States |
| Package Quantity | 12 |
