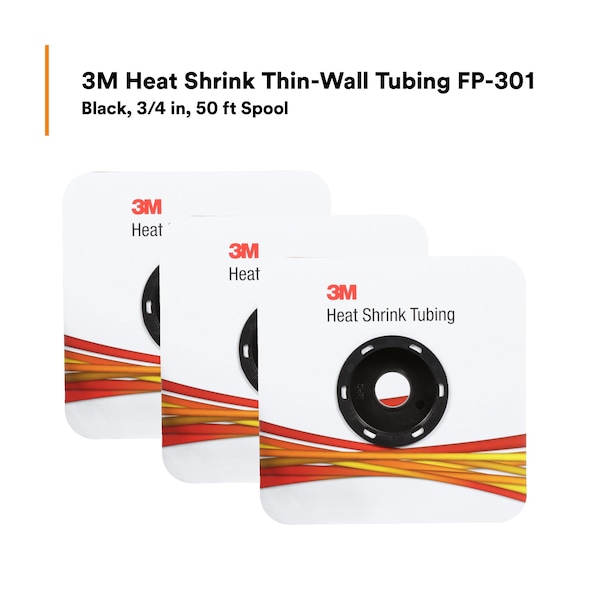

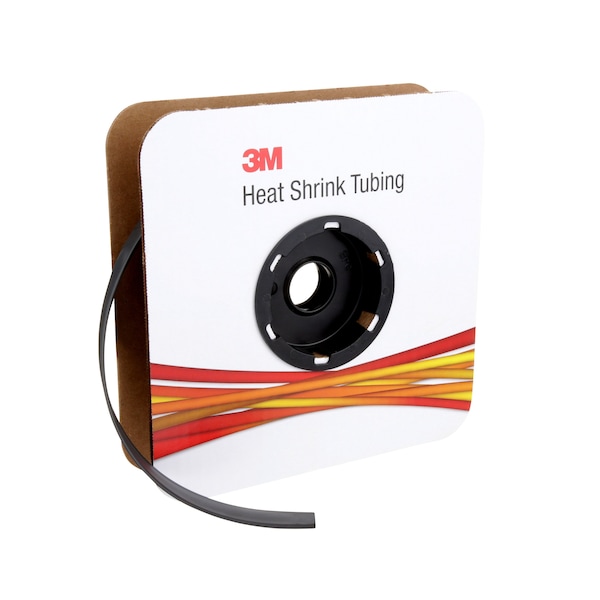

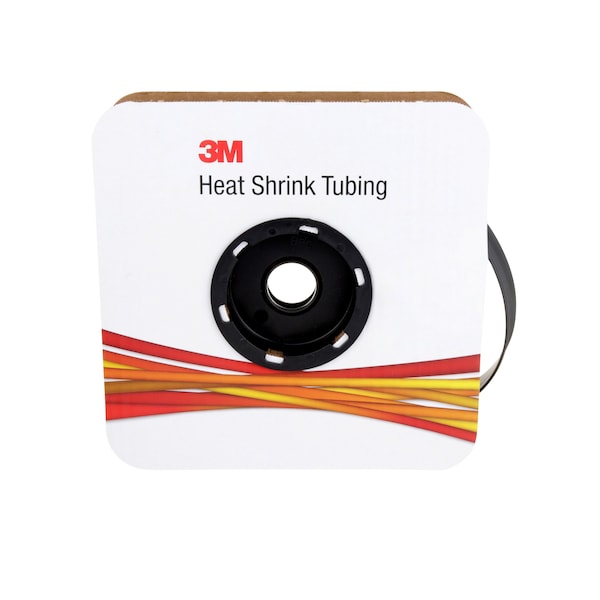

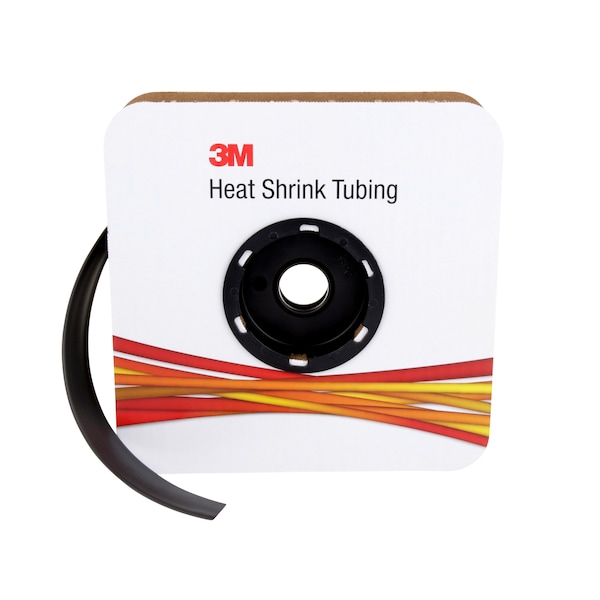

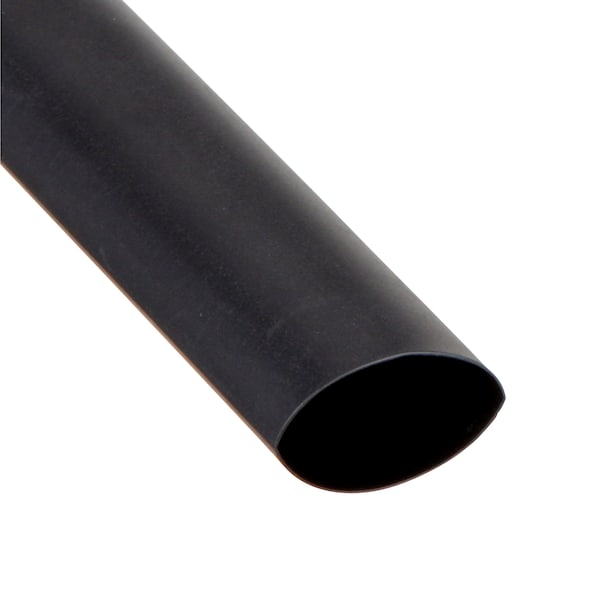

Heat Shrink Tube, Thin Wall, 2:1 I.D. Shrink Ratio, 0.75 in I.D. Before Shrinking, Black, 50 ft
| Item | Heat Shrink Tube |
|---|---|
| Shrink Ratio | 2:1 |
| Wall Type | Thin Wall |
| Shrink Tubing I.D. After Shrinking | 0.38 in |
| Material | Polyolefin |
| Color | Black |
| Length | 50 ft |
| Use with Wire Size | 4 to 3/0 AWG |
| Temp. Range | -67° to 275°F |
| Min. Shrink Temp. | 250°F |
| Standards | CSA Certified, RoHS 2011/65/EU, UL E39100 |
| Shrink Tubing I.D. Before Shrinking | 3/4 in |
| Max. Voltage | 600 V |
| Shrink Tubing Wall Thickness After Shrinking | 0.03 in |
| Features | Balances Electrical, Physical and Chemical Properties, Shrink Fit Protection, Solder Joints, Strain Relief, Terminals and Connections |
| Flame Retardant | Yes |
| Shrink Tubing Material Type | Flexible |
| Tubing Wall Type | Thin Wall |
| Adhesive Lined | No |
| Dielectric Strength | 600 V |
| Max. Temp. Rating | 275 deg F |
| Package Style | Cut to Length |
| Shrink Tubing Properties | Acid and Alkali Resistant, Solvent Resistant |
| Min. Temp. Rating | -67 deg F |
| Wall Thickness After Shrinking | 0.03 in |
| I.D. Before Shrinking | 3/4 in |
| I.D. After Shrinking | 0.38 in |
| Shrink Tube Material Type | Flexible |
| Package Quantity | 1 |
