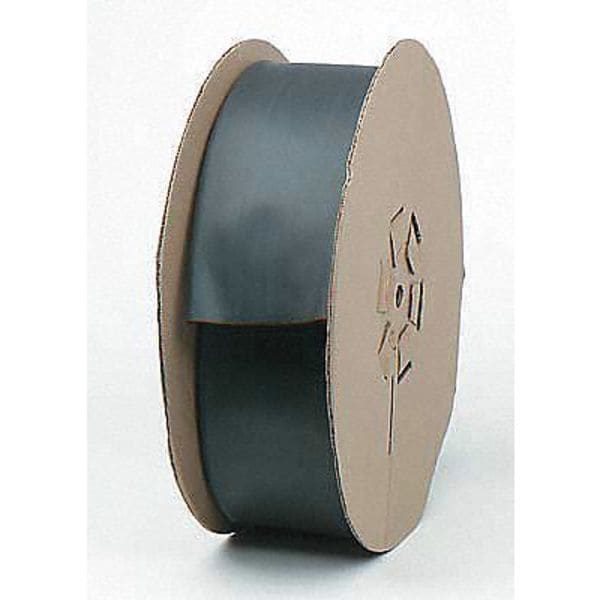

Heat Shrink Tube, Thin Wall, 2:1 I.D. Shrink Ratio, 1.25 in I.D. Before Shrinking, Black, 50 ft
| Item | Heat Shrink Tube |
|---|---|
| Shrink Ratio | 2:1 |
| Wall Type | Thin Wall |
| Shrink Tubing I.D. Before Shrinking | 1-1/4 in |
| Shrink Tubing I.D. After Shrinking | 0.63 in |
| Material | Modified Chlorinated Polyolefin |
| Color | Black |
| Length | 50 ft |
| Use with Wire Size | 500 to 800 MCM |
| Temp. Range | -94° to 250°F |
| Min. Shrink Temp. | 275°F |
| Max. Voltage | 600 V |
| Flame Retardant | Yes |
| Standards | AMS-3623, AMS-R46846, SAE-AMS-DTL-23053/1, Class 1 and 2, SC-X-15112 |
| Shrink Tubing Wall Thickness After Shrinking | 0.087 in |
| Features | Abrasion Resistant, Flame Retardant, Fuel Resistant, Oil Resistant, Solvent Resistant |
| Tubing Wall Type | Thin Wall |
| Adhesive Lined | No |
| Package Style | Cut to Length |
| Min. Temp. Rating | -94 deg F |
| Wall Thickness After Shrinking | 0.09 in |
| Max. Temp. Rating | 250 deg F |
| Shrink Tubing Properties | Abrasion Resistant, Acid and Alkali Resistant, Fuel and Oil Resistant |
| Dielectric Strength | 600 V |
| I.D. After Shrinking | 0.63 in |
| I.D. Before Shrinking | 1-1/4 in |
| Package Quantity | 2 |
