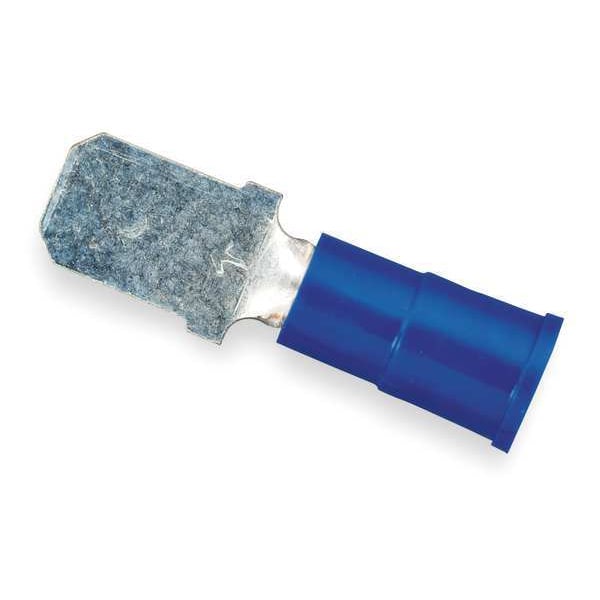

Desconexión macho Scotchlok, Azul, 16-14AWG, paquete de 100
| Item | Male Disconnect |
|---|---|
| Insulation | Partial |
| Material | Plastic |
| Insulation Color | Blue |
| Wire Range | 16 to 14 AWG |
| Connection Type | Crimp |
| Insulation Type | Vinyl |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 0.93 in |
| Seam | Butted |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Barrel Inside Dia. | 0.085 in |
| Standards | CSA Certified, UL Listed |
| Connection Material | Tin-Plated Copper |
| Terminal Type | Tab |
| Shop By | Closeouts |
| Contact Material | Copper |
| Tab Width | 1/4 in |
| Barrel Inside Diameter | 0.085 in |
| Maximum Voltage | 600 V |
| Minimum Operating Temperature | 221 deg F |
| Maximum Wire Size | 14 AWG |
| Seam Style | Butted |
| Termination Style | Crimp |
| Minimum Wire Size | 16 AWG |
| Tab Thickness | 0.032 in |
| Insulation Coverage | Partial Coverage |
| Maximum Operating Temperature (Celsius) | 105°C |
| Disconnect Type | Male |
| Overall Diameter | 0.39 in |
| Fastener Orientation | Male |
| Voltage Application | Low Voltage |
| Pad Width | 1/4 in |
| Connection Width | 1/4 in |
| Maximum Insulation Outer Diameter | 0.17 in |
| Minimum Conductor Size | 16 AWG |
| Solution for | Wireless Network Infrastructure Accessories |
| Male Tab Width (W') | 1/4 in |
| Diameter (D) | 0.39 in |
| Terminal Style | Standard |
| Maximum Conductor Size | 14 AWG |
| Barrel Outside Diameter | 0.39 in |
| UL 94 Flammability Rating | Not Applicable |
| RoHS Compliant | Yes |
| Contact Finish | Tin |
| Special Features | Allows for Quick and Easy Disconnect of Wires |
| Disconnect Style | Tab |
| Insulation Material | Vinyl |
| Package Quantity | 100 |
