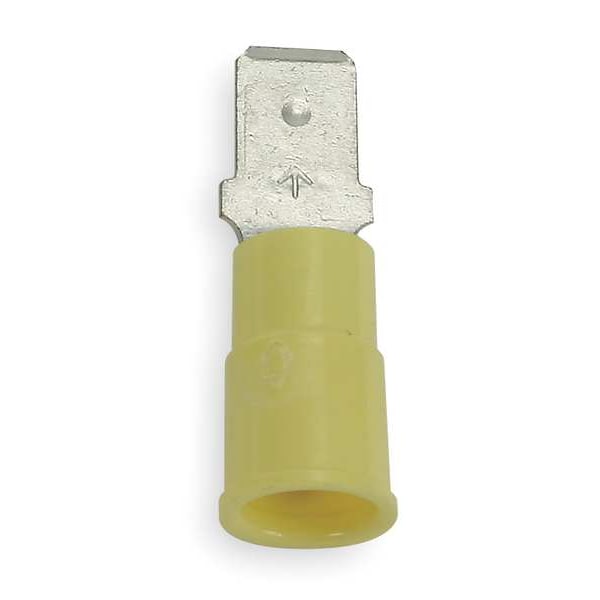

Desconexión macho Scotchlok, amarillo, 12-10 AWG, paquete con 50 unidades.
| Item | Male Disconnect |
|---|---|
| Insulation | Full |
| Material | Plastic |
| Insulation Color | Yellow |
| Insulation Type | Nylon |
| Wire Range | 12 to 10 AWG |
| Connection Type | Crimp |
| Overall Length | 1.05 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Butted |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Barrel Inside Dia. | 0.15 in |
| Connection Material | Tin-Plated Copper |
| Terminal Type | Male Disconnect |
| Maximum Insulation Outer Diameter | 1/4 in |
| Max. Number of Cores | 1 |
| Barrel Inside Diameter | 0.15 in |
| Operating Temperature Range (Celsius) | -40 to 105°C |
| Overall Width | 0.47 in |
| Maximum Conductor Size | 10 AWG |
| Disconnect Type | Male |
| Maximum Operating Temperature (Celsius) | 105°C |
| Terminal Style | Fully Insulated |
| Overall Diameter | 0.39 in |
| Voltage Application | Low Voltage |
| Male Tab Width (W') | 1/4 in |
| Minimum Conductor Size | 12 AWG |
| Fastener Orientation | Male |
| Pad Width | 1/4 in |
| Diameter (D) | 0.39 in |
| Tab Width | 0.187 in |
| Connection Width | 1/4 in |
| Package Quantity | 50 |
