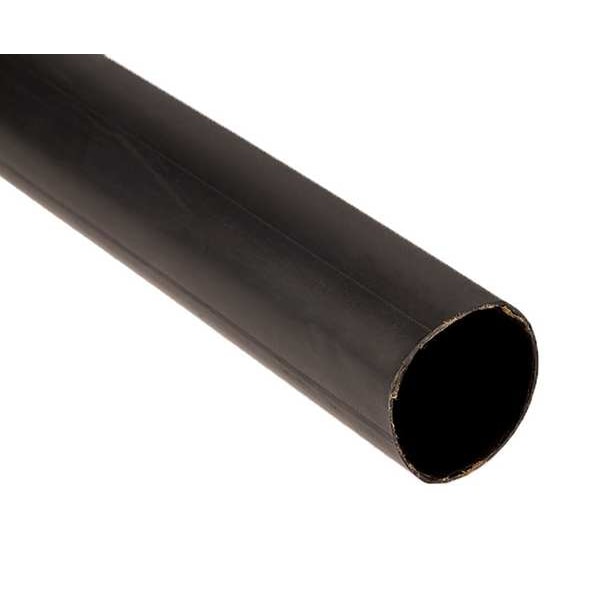

Shrink Tubing, 0.125in ID, Black, 6in, PK100
| Item | Heat Shrink Tubing |
|---|---|
| Shrink Ratio | 2.5:1 |
| Shrink Tubing Wall Type | Thin Wall |
| Shrink Tubing I.D. Before Shrinking | 1/8 in |
| Material | Polyolefin with Adhesive |
| Color | Black |
| Length | 6 in |
| Temp. Range | -67 to 230 deg F |
| Min. Shrink Temp. | 275 deg F |
| Standards | CSA Certified, RoHS 2011/65/EU, SAE SAE AS23053/4, Class 1, UL Listed |
| Shrink Tubing Type | Heat Shrink Tubing |
| Flame Retardant | No |
| Use Shrink Tubing With Wire Size | 22 to 16 AWG |
| Shrink Tubing Wall Thickness After Shrinking | 0.038 in |
| Max. Voltage | 900 V |
| Shrink Tubing Usable Temp. Range | -131 to 275 deg F |
| Shrink Tubing Length | 6 in |
| Shrink Tubing Material | Polyolefin |
| I.D. After Shrinking | 0.02 in |
| Shrink Tubing Adhesive Lined | Yes |
| Shrink Tube Material Type | Semi Rigid |
| I.D. Before Shrinking | 0.13 in |
| Features | Multiple Wall is Co-Extruded and Cross-Linked To Offer A Meltable Inner Wall, Offers A Skintight Fit and Strain-Relief Sealing Of Electrical Connections, Wire Splices and Components |
| Adhesive Lined | Yes |
| Use With Wire Size | 22 AWG to 16 AWG |
| Tubing Wall Type | Thin Wall |
| Package Style | Individual Pieces |
| Min. Temp. Rating | -67 deg F |
| Shrink Tubing Properties | Acid and Alkali Resistant |
| Dielectric Strength | 600 V |
| Max. Temp. Rating | 230 deg F |
| Wall Thickness After Shrinking | 0.04 in |
| Length (Straight Wireway) | 6 in |
| Package Quantity | 100 |
