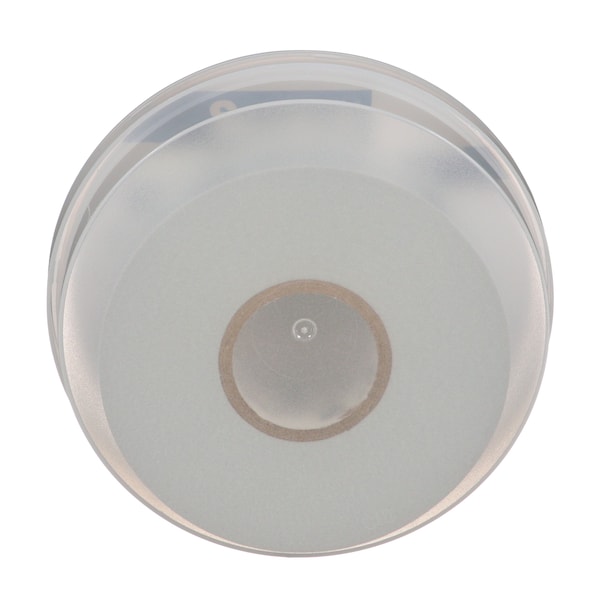

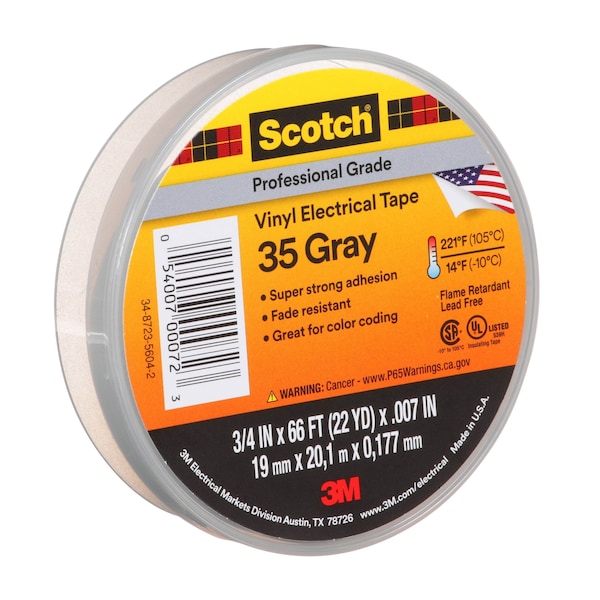

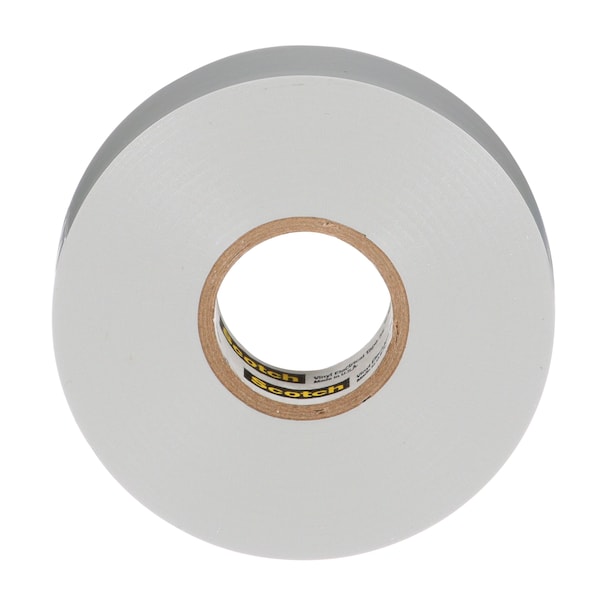

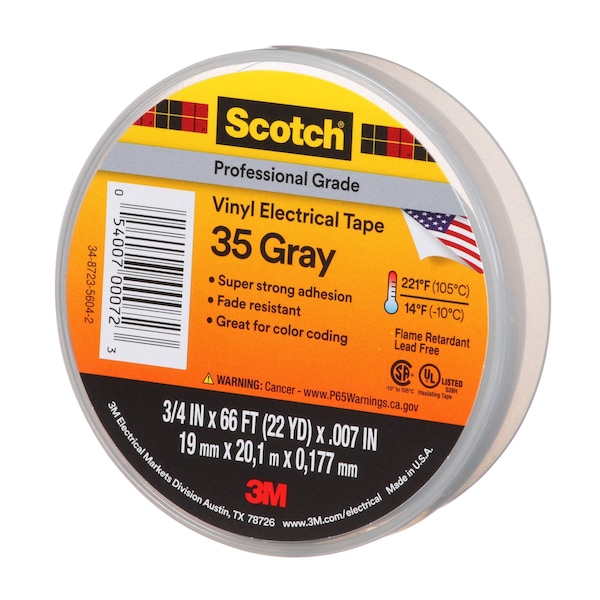

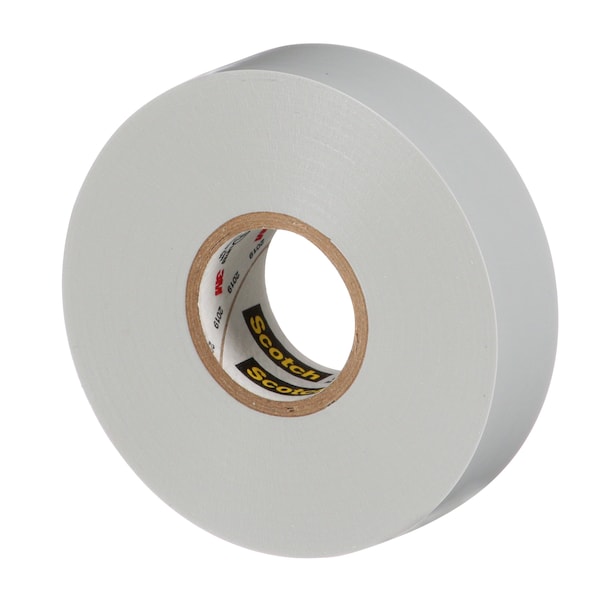

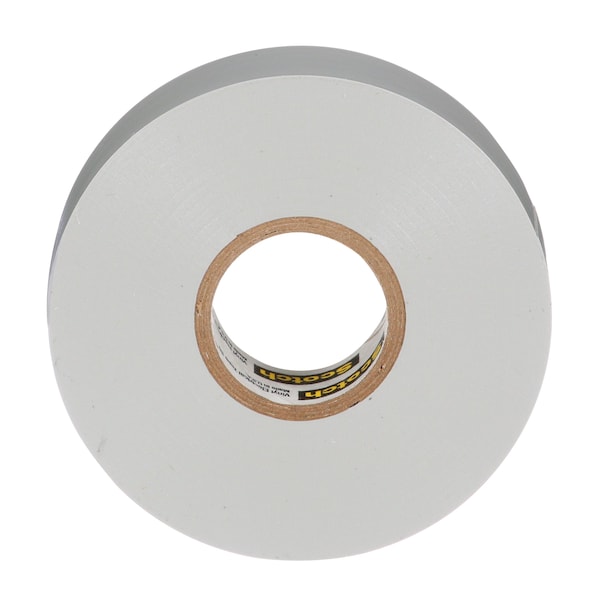

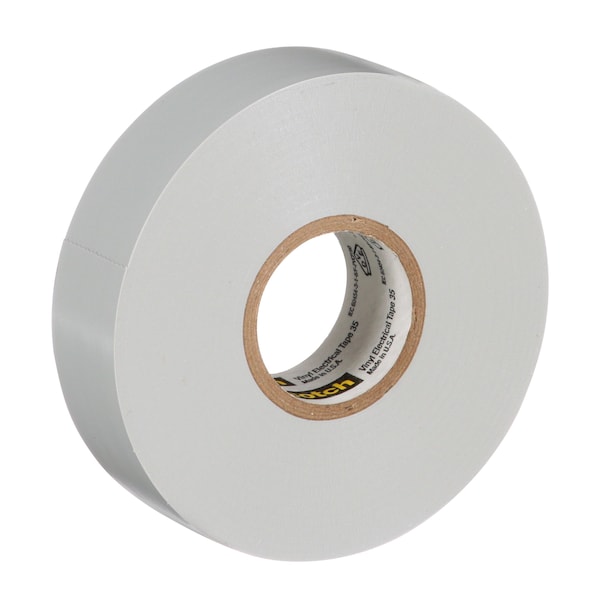

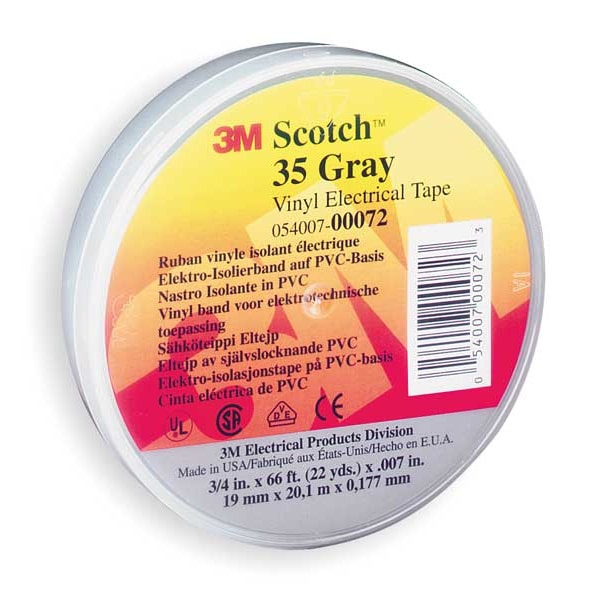

Vinyl Electrical Tape, 35, Scotch, 3/4 in W x 66 ft L , 7 mil thick, Gray, 1 Pack
| Tape Color | Gray |
|---|---|
| Series | 35 |
| Tape Thickness | 7 mil |
| Performance Temp. | Up to 220 Degrees F |
| Item | Insulating Electrical Tape |
| Tape Tensile Strength | 17 lb/in |
| Color | Gray |
| Width | 3/4 in |
| Length | 66 ft |
| Standards | ASTM, ASTM D1000, CSA, RoHS, RoHS 2002/95/EC, UL 510, VDE, VDE 0340-TEIL1 |
| Material | Backing: Vinyl; Adhesive: Rubber Resin |
| Duct Tape Adhesive | Rubber |
| Temperature Range | 32 to 220 deg F |
| Adhesion Strength | 20 oz/in |
| Shape | Continuous Roll |
| UV Resistance | No |
| Max. Voltage | 600 |
| Tape Backing Material | Vinyl |
| Duct Tape Grade | Premium |
| Duct Tape Type | PVC tape |
| Adhesion to Steel | 20 oz/in |
| Metric Tape Length | 20.17 m |
| Product Form | Continuous Roll |
| Sub-Brand | Scotch |
| Metric Tape Width | 19.05 mm |
| Breaking Strength | 17 lb/in |
| Environment | Outdoor, Indoor |
| Self-extinguishing | Not Self-Extinguishing |
| Maximum Tape Performance Temperature | 221 deg F |
| Adhesive Properties | Pressure Sensitive Adhesive, Aggressive Adhesive |
| Tape Properties | Pressure Sensitive Adhesive |
| Insulation Resistance | 1.00 x 10^6 megaohm |
| Tape Backing Construction | Film |
| Minimum Tape Performance Temperature | 32 deg F |
| Specifications Met | ASTM, CSA, RoHS, UL, VDE |
| Imperial Tape Length | 66 ft |
| Elongation | 225% |
| Tape Brand | 3M(TM) |
| Tape Resistance Properties | Abrasion-Resistant, Flame-Resistant, Moisture-Resistant, UV-Resistant |
| Tape Adhesive Format | Single-Sided |
| Tape Adhesive Material | Rubber |
| Package Quantity | 1 |
| Tape Type | Film |
| Imperial Tape Width | 3/4 in |
| Tape Conformability | Conformable at Low Temperature |
| Tape Sub-Type | General Purpose |
| National Stock No. | 5,970,004,822,559 |
| Dielectric Strength | 1,250 V/mil |
| Printed Message | Unprinted |
| Breakdown Voltage | 8,750 V |
| Voltage Rating | 600 V |
| Products By Industry | Electrical |
| Pre-Cut Length | Not Applicable |
| Pre-Cut Shape | Not Applicable |
| Pre-Cut Diameter | Not Applicable |
| Pre-Cut Width | Not Applicable |
| Country of Origin (subject to change) | United States |
