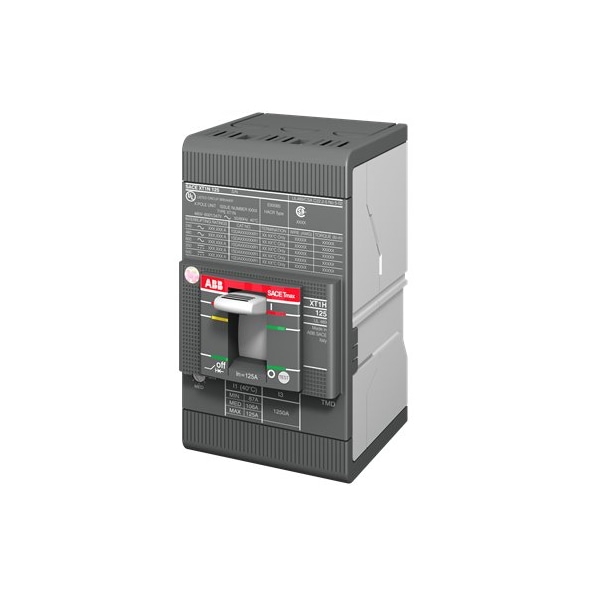

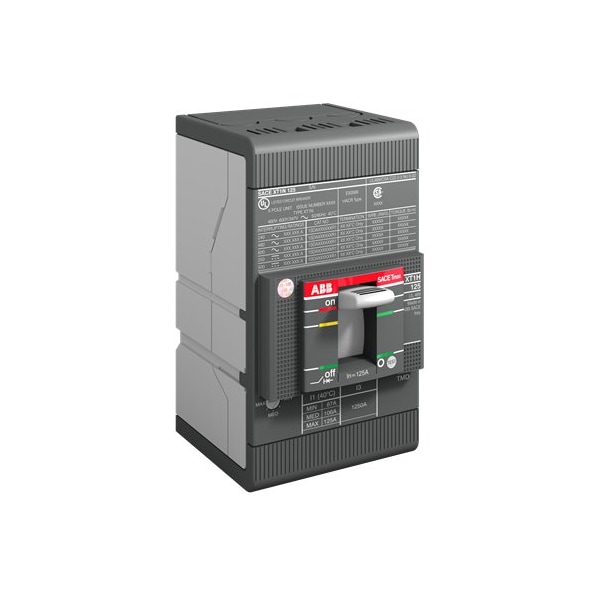

Circuit Breaker, XT1H Series, 70A, 3 Pole, 347V AC, 100kA
| Item | Circuit Breaker |
|---|---|
| Series | XT1H |
| Amps | 70A |
| Number of Poles | 3 |
| AC Voltage Rating | 347V AC |
| Max. AIR Rating | 100kA |
| Trip Type | Fixed Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Bolt |
| Frame Size | 125A, XT1 |
| Width | 76.2 mm |
| Depth | 70 mm |
| Height | 130 mm |
| DC Voltage Rating | 500V DC |
| Standards | UL 80% rated, IEC dual rated |
| Dimensions | 5.63 x 5.04 x 5.31 |
| Features | Feature high specific let-through current |
| Application | Ideal solution for all distribution levels from the main low voltage switchboard to the subswitchboards in the installation |
| Package Quantity | 1 |
