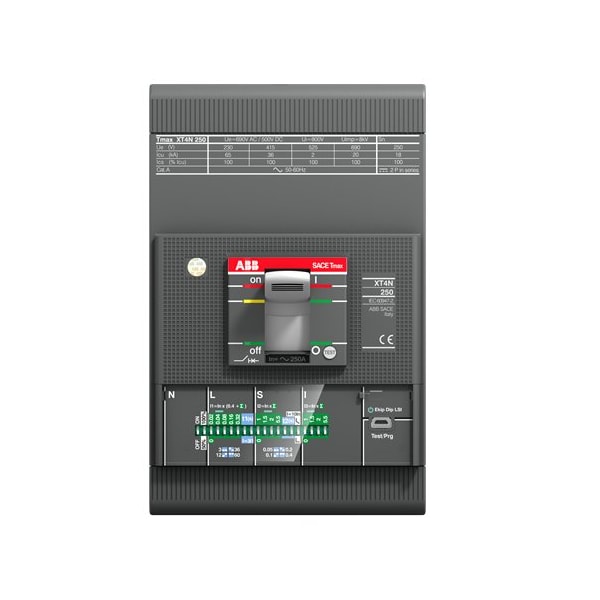

Molded Case Circuit Breaker, XT4N Series, 250A, 3 Pole, 600V AC, 65kA
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | XT4N |
| Amps | 250A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Max. AIR Rating | 65kA |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Bolt |
| Frame Size | 250A, XT4 |
| Width | 105 mm |
| Depth | 82.5 mm |
| Height | 160 mm |
| DC Voltage Rating | Not Rated |
| Standards | UL 80% rated, IEC dual rated |
| Features | Feature high specific let-through current |
| Application | Ideal solution for all distribution levels from the main low voltage switchboard to the subswitchboards in the installation |
| Dimensions | 6.614 x 5.709 x 8.268 |
| Package Quantity | 1 |
