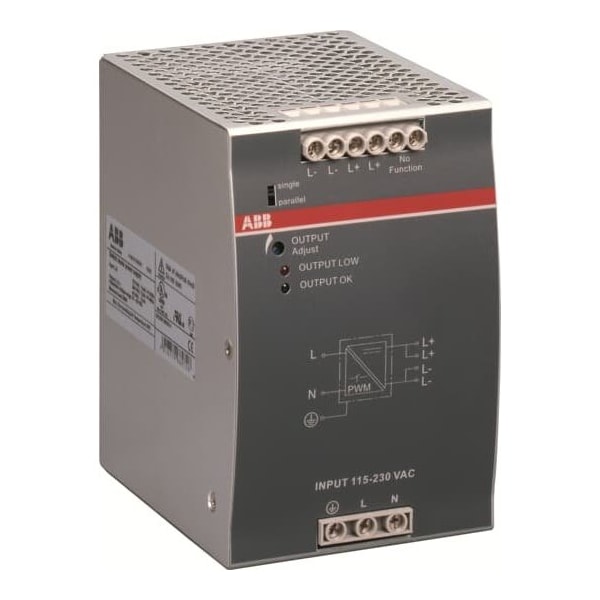

Power Supply, 90/132V AC; 180/264V AC; 210/375V DC, 48V DC, 240W, 4A, DIN Rail
| Item | Power Supply |
|---|---|
| Input Voltage | 90/132V AC; 180/264V AC; 210/375V DC |
| Output Voltage | 48V DC |
| Power Rating | 240 W |
| Output Amps | 4 A |
| Mounting | DIN Rail |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 123.6 mm |
| Width | 83 mm |
| Depth | 123.6 mm |
| Hz | 50 Hz |
| IP Rating | IP20 |
| Standards | ANSI/ISA-12.12, CAN/CSA C22.2 No.107.1, CAN/CSA C22.2 No.213, CAN/CSA C22.2 No.60950, IEC/EN 63000, IEC 60950-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508, UL 60950 |
| Output | U/I Characteristic Curve |
| Package Quantity | 1 |
