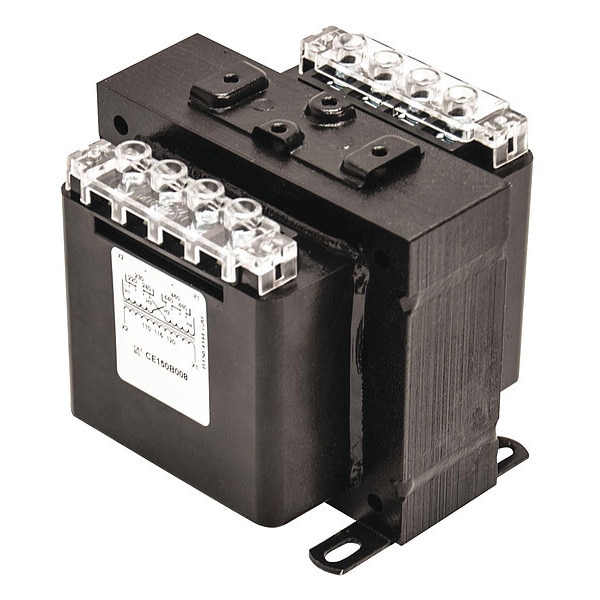

Control Transformer, 200 VA, Not Rated, 110/115/120V AC, 550/575/600V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 550/575/600V AC |
| Mounting - Transformer | Foot, Plate |
| Hz - Electrical | 50/60 Hz |
| Standards | cUL Listed, UL Listed |
| Protective Device | None |
| Manufacturers Warranty Length | 20 yr |
| Enclosure Finish | Epoxy Resin Varnish |
| Height | 3-3/4 in |
| Depth | 4 in |
| VA Rating - Transformer | 200 VA |
| Phase - Electrical | 1 |
| Width | 4-1/2 in |
| Enclosure Style - Transformer | Open, Finger-Safe |
| Output Voltage - Transformer | 110/115/120V AC |
| Temp. Rise | Not Rated |
| Includes | Not Applicable |
| Weight | 5.75 lb |
| Certified Listed | UL ListedcUL Listed |
| Construction | Encapsulated |
| Application | Acme's TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer's windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme's TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Pallet Quantity | 72 |
| Carton Quantity | 1 |
| Features | Encapsulated design protects core & coil assembly from potentially damaging contaminants |
| Primary Voltage | 550/575/600 V |
| Package Quantity | 1 |
