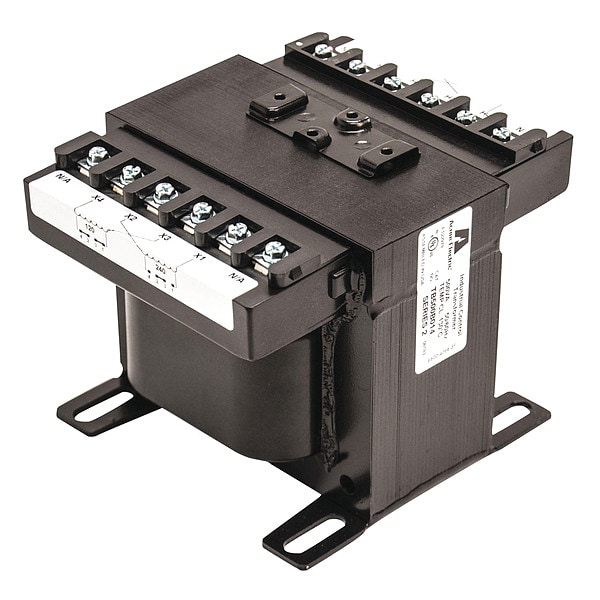

Control Transformer, 750 VA, Not Rated, 115/24V AC, 208/230/460V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 208/230/460V AC |
| Mounting - Transformer | Foot, Plate |
| Hz - Electrical | 50/60 Hz |
| Color | Black |
| VA Rating - Transformer | 750 VA |
| Phase - Electrical | 1 |
| Height | 6.9 in |
| Enclosure Style - Transformer | Open |
| Temp. Rise | Not Rated |
| Output Voltage - Transformer | 115/24V AC |
| Manufacturers Warranty Length | 20 yr |
| Protective Device | Primary and Secondary Fuse |
| Width | 7 in |
| Enclosure Finish | Epoxy Resin Varnish |
| Depth | 7.23 in |
| Standards | cUL Listed, UL Listed |
| Includes | Factory Installed Primary Fuse Block and Secondary Fuse Clips |
| Weight | 38.6 lb |
| Certified Listed | UL ListedcUL Listed |
| Features | Encapsulated design protects core & coil assembly from potentially damaging contaminants; Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency; Integrally molded terminal blocks with isolation barriers to prevent arc over |
| Carton Quantity | 1 |
| Pallet Quantity | 48 |
| Application | Acme's TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer's windings and internal terminations are encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme's TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Primary Voltage | 208/230/460 V |
| Package Quantity | 1 |
