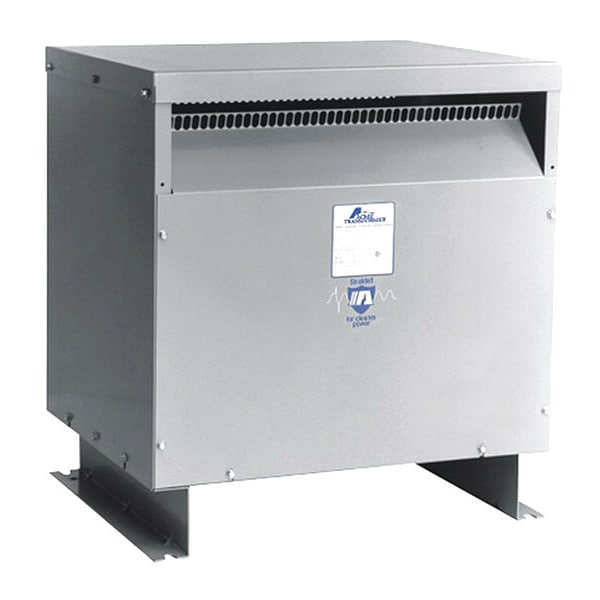

Drive Isolation Transformer, 63 kVA, NEMA 2, 150°C, 266/460V, 460V
| Item | Drive Isolation Transformer |
|---|---|
| Input Voltage - Transformer | 460V |
| Mounting - Transformer | Floor |
| Hz - Electrical | 60 |
| Depth | 22.37 in |
| Output Voltage - Transformer | 266/460V |
| Width | 28.15 in |
| Enclosure Rating | NEMA 2 |
| Winding Material - Transformer | Aluminum |
| Phase - Electrical | 3 |
| Temp. Rise | 150 deg C |
| VA Rating - Transformer | 63 kVA |
| Height | 29.9 in |
| Electrostatic Shield | Shielded |
| Max Temperature Rise | 150 Degrees Celsius |
| CSA Standard | C22.2 No. 47 |
| BNFC Taps | 2 |
| Construction | Ventilated |
| UL Insulation Class | 220°C |
| Taps % Steps | 0.025 |
| Primary Voltage | 460D V |
| ANFC Taps | 2 |
| Material type | ZFIN |
| UL Standard | UL 1561 |
| Product Category | Drive Isolation Transformer |
| Features | Copper terminations for trouble free operation; Wound core and strip winding for low losses; Electrostatic shield for enhanced protection |
| Carton Quantity | 1 |
| Package Quantity | 1 |
