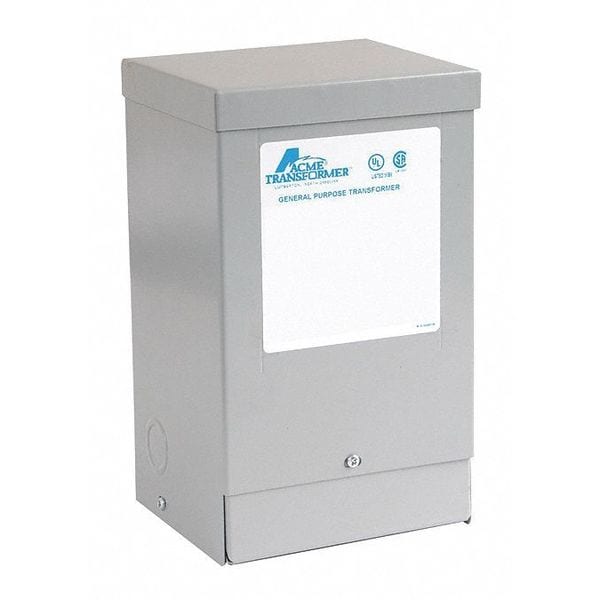

Industrial Control Transformer, 5 kVA, NEMA 3R, 55°C, 120V AC, 240/480V AC
| Item | Industrial Control Transformer |
|---|---|
| Input Voltage - Transformer | 240/480V AC |
| Mounting - Transformer | Wall |
| Hz - Electrical | 50/60 Hz |
| VA Rating - Transformer | 5 kVA |
| Height | 13.85 in |
| Width | 13-1/4 in |
| Output Voltage - Transformer | 120V AC |
| Standards | CSA C22.2 No. 47; UL 506 |
| Enclosure Rating | NEMA 3R |
| Enclosure Type | Encapsulated |
| Temp. Rise | 55 deg C |
| Depth | 10.19 in |
| Winding Material - Transformer | Copper |
| Insulation Max. Temp. | 155 °C |
| Carton Quantity | 1 |
| Primary Voltage | 240 X 480 V |
| Product Category | Industrial Control Transformer |
| Construction | Encapsulated |
| UL Standard | UL 506 |
| CSA Standard | C22.2 No 47 |
| Features | Designed for outside control panel installation |
| UL Insulation Class | 155°C |
| Max Temperature Rise | 55 Degrees Celsius |
| Package Quantity | 1 |
