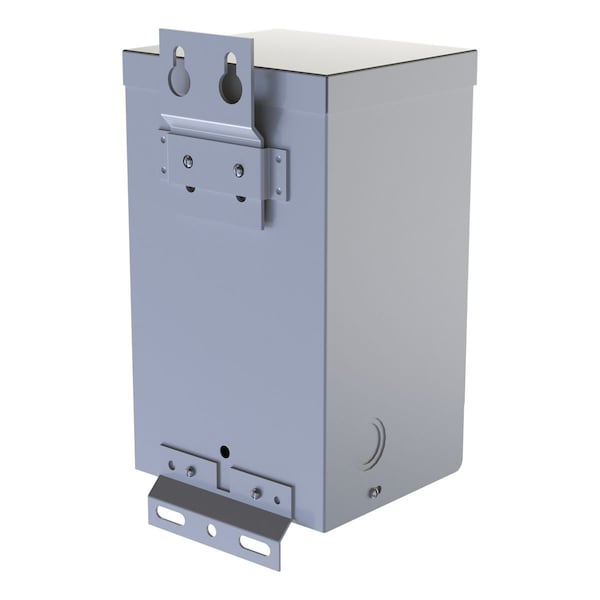

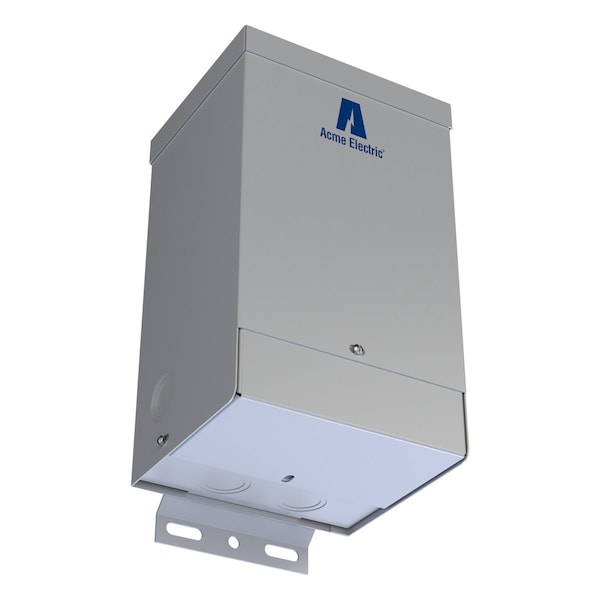

Low Voltage Distribution Transformer, 100 VA, NEMA 3R, 80°C, 120/240V AC, 240/480V AC
| CAD Available | Yes |
|---|---|
| Item | Low Voltage Distribution Transformer |
| Input Voltage - Transformer | 240/480V AC |
| Mounting - Transformer | Wall |
| Hz - Electrical | 60 |
| IP Rating | IP14 |
| Outdoor Rated - Transformer | Yes |
| Winding Material | Copper |
| Color | Gray |
| Standards | CSA C22.2 No. 47, UL 506 |
| Width | 3.89 in |
| Voltage Function - Transformer | Step Down |
| Enclosure Material | Steel |
| Depth | 3.67 in |
| VA Rating - Transformer | 100 VA |
| Temp. Rise | 80 deg C |
| Manufacturers Warranty Length | 10 yr |
| Knockout Size - Transformer | 1/2 in |
| Enclosure Rating | NEMA 3R |
| Output Voltage - Transformer | 120/240V AC |
| Enclosure Finish | Powder Polyurethane Paint |
| Winding Material - Transformer | Copper |
| Phase - Electrical | 1 |
| Height | 7.16 in |
| Includes | Not Applicable |
| Insulation Max. Temp. | 130 °C |
| Max Temperature Rise | 115 Degrees Celsius |
| Primary Voltage | 240 X 480 |
| Carton Quantity | 3 |
| Construction | Encapsulated |
| UL Standard | UL 506 |
| CSA Standard | C22.2 No. 47 |
| UL Insulation Class | 130°C |
| Features | Quiet operation with sound levels below NEMA standards; Electrostatic shield for enhanced protection |
| Product Category | Dry Type Distribution Transformer |
| Sound Level | 40 dB |
| Includes Knockouts | Knockouts Included |
| Package Quantity | 1 |
