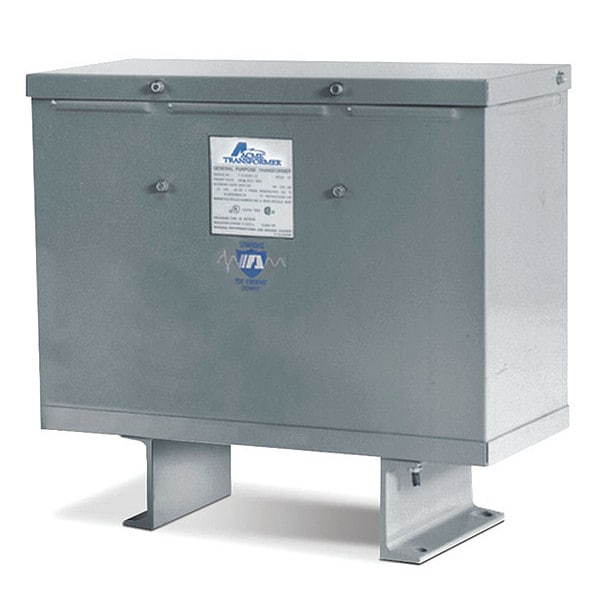

Low Voltage Distribution Transformer, 15 kVA, NEMA 3R, 115°C, 127/220V, 380V
| Item | Low Voltage Distribution Transformer |
|---|---|
| Input Voltage - Transformer | 380V |
| Mounting - Transformer | Floor |
| Hz - Electrical | 50 |
| VA Rating - Transformer | 15 kVA |
| Height | 20.8 in |
| Temp. Rise | 115 deg C |
| Depth | 10.2 in |
| Winding Material - Transformer | Aluminum |
| Width | 20.9 in |
| Enclosure Rating | NEMA 3R |
| Phase - Electrical | 3 |
| Output Voltage - Transformer | 127/220V |
| BNFC Taps | 2 |
| CSA Standard | C22.2 No. 47 |
| UL Insulation Class | 180°C |
| Taps % Steps | 0.05 |
| Max Temperature Rise | 115 Degrees Celsius |
| Primary Voltage | 380D V |
| Material type | ZFIN |
| UL Standard | UL 506 |
| Electrostatic Shield | Shielded |
| Construction | Encapsulated |
| Features | Quiet operation with sound levels below NEMA standards; Electrostatic shield for enhanced protection |
| Product Category | Dry Type Distribution Transformer |
| Package Quantity | 1 |
