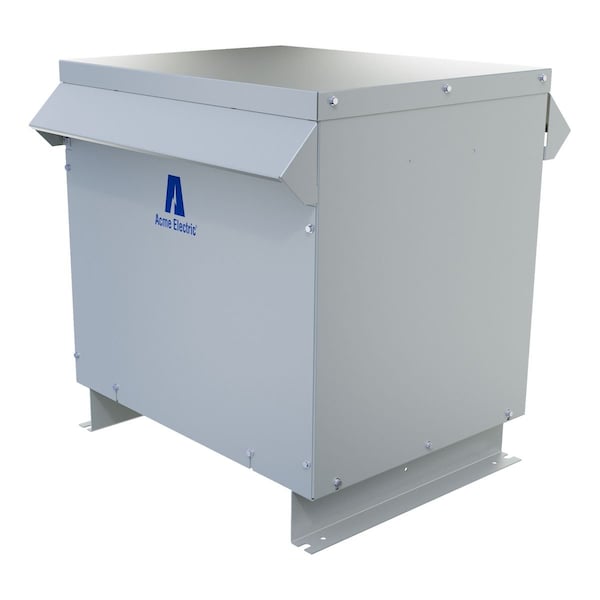

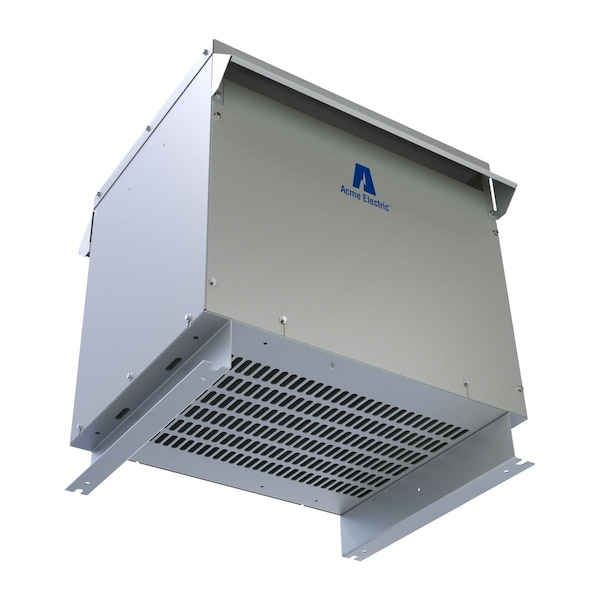

Low Voltage Distribution Transformer, 30 kVA, NEMA 3R, 150°C, 120/208V AC, 480V AC
| Item | Low Voltage Distribution Transformer |
|---|---|
| Input Voltage - Transformer | 480V AC |
| Mounting - Transformer | Floor |
| Hz - Electrical | 60 |
| IP Rating | IP14 |
| Outdoor Rated - Transformer | Yes |
| Winding Material | Aluminum |
| Color | Gray |
| Output Voltage - Transformer | 120/208V AC |
| Phase - Electrical | 3 |
| Width | 24.39 in |
| Standards | CSA C22.2 No. 47, Meets or Exceed U.S. DOE 10 CFR Part 431, UL 1561 |
| VA Rating - Transformer | 30 kVA |
| Winding Material - Transformer | Aluminum |
| Voltage Function - Transformer | Step Down |
| Enclosure Material | Steel |
| Temp. Rise | 150 deg C |
| Height | 25-1/2 in |
| Knockout Size - Transformer | No Knockout |
| Depth | 19.37 in |
| Includes | Weathershield |
| Enclosure Rating | NEMA 3R |
| Enclosure Finish | Powder Polyurethane Paint |
| Material type | ZFIN |
| Efficiency | 0.9823 |
| UL Standard | UL 1561 |
| Max Temperature Rise | 150 Degrees Celsius |
| ANFC Taps | 2 |
| Construction | Ventilated |
| Dept of Energy Regulation | Meets or exceed U.S. DOE 10 CFR Part 431 |
| CSA Standard | C22.2 No. 47 |
| Primary Voltage | 480D V |
| Taps % Steps | 0.025 |
| UL Insulation Class | 220°C |
| BNFC Taps | 4 |
| Features | Quiet operation with sound levels below NEMA standards |
| Product Category | Dry Type Distribution Transformer |
| Carton Quantity | 1 |
| Sound Level | 45 dB |
| Includes Knockouts | No Knockouts |
| Package Quantity | 1 |
