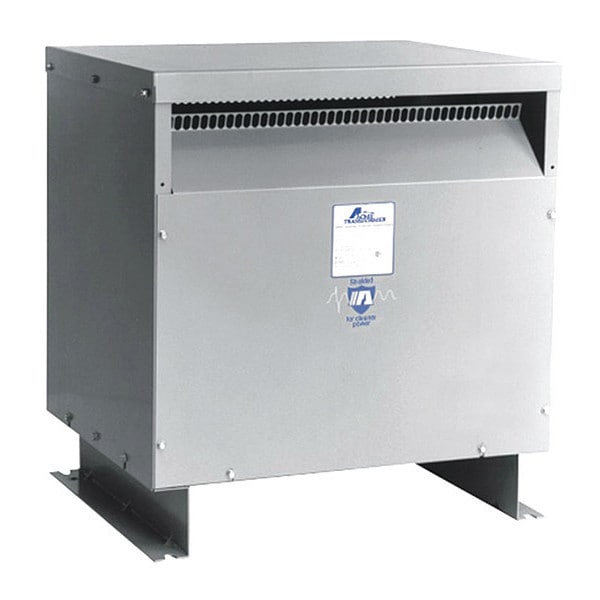

Low Voltage Distribution Transformer, 50 kVA, NEMA 2, 150°C, 120/240V AC, 240/480V AC
| Item | Low Voltage Distribution Transformer |
|---|---|
| Input Voltage - Transformer | 240/480V AC |
| Mounting - Transformer | Floor |
| Hz - Electrical | 60 |
| IP Rating | IP11 |
| Outdoor Rated - Transformer | No |
| Winding Material | Copper |
| Color | Gray |
| Width | 24.39 in |
| VA Rating - Transformer | 50 kVA |
| Winding Material - Transformer | Aluminum |
| Enclosure Rating | NEMA 2 |
| Knockout Size - Transformer | No Knockout |
| Manufacturers Warranty Length | 10 yr |
| Voltage Function - Transformer | Step Down |
| Enclosure Finish | Powder Polyurethane Paint |
| Depth | 19.37 in |
| Standards | CSA C22.2 No. 47, UL 506 |
| Output Voltage - Transformer | 120/240V AC |
| Height | 25-1/2 in |
| Temp. Rise | 150 deg C |
| Enclosure Material | Steel |
| Phase - Electrical | 1 |
| Includes | Not Applicable |
| Insulation Max. Temp. | 220 °C |
| BNFC Taps | 4 |
| Taps % Steps | 0.025 |
| Carton Quantity | 1 |
| UL Insulation Class | 220°C |
| Max Temperature Rise | 150 Degrees Celsius |
| Electrostatic Shield | Shielded |
| ANFC Taps | 2 |
| Primary Voltage | 240 X 480 V |
| CSA Standard | C22.2 No. 47 |
| Product Category | Dry Type Distribution Transformer |
| Construction | Ventilated |
| UL Standard | UL 506 |
| Includes Knockouts | No Knockouts |
| Sound Level | 45 dB |
| Package Quantity | 1 |
