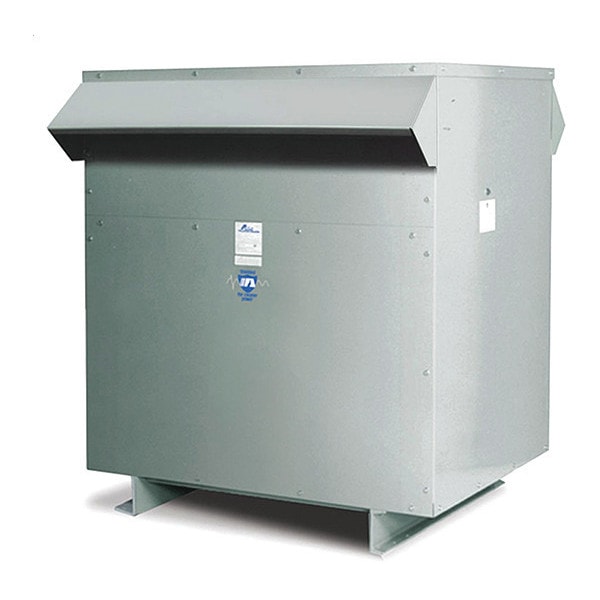

Low Voltage Distribution Transformer, 500 kVA, NEMA 3R, 115°C, 120/208V, 480V
| Item | Low Voltage Distribution Transformer |
|---|---|
| Input Voltage - Transformer | 480V |
| Mounting - Transformer | Floor |
| Hz - Electrical | 60 |
| Width | 45.6 in |
| Height | 57.8 in |
| Enclosure Rating | NEMA 3R |
| Winding Material - Transformer | Aluminum |
| Depth | 41-1/2 in |
| Temp. Rise | 115 deg C |
| Output Voltage - Transformer | 120/208V |
| Phase - Electrical | 3 |
| VA Rating - Transformer | 500 kVA |
| UL Standard | UL 1561 |
| Efficiency | 0.9914 |
| Dept of Energy Regulation | Meets or exceed U.S. DOE 10 CFR Part 431 |
| BNFC Taps | 4 |
| ANFC Taps | 2 |
| CSA Standard | C22.2 No. 47 |
| Taps % Steps | 0.025 |
| Electrostatic Shield | Shielded |
| Material type | ZFIN |
| UL Insulation Class | 180°C |
| Construction | Ventilated |
| Primary Voltage | 480D V |
| Max Temperature Rise | 115 Degrees Celsius |
| Features | Quiet operation with sound levels below NEMA standards; Electrostatic shield for enhanced protection |
| Product Category | Dry Type Distribution Transformer |
| Package Quantity | 1 |
