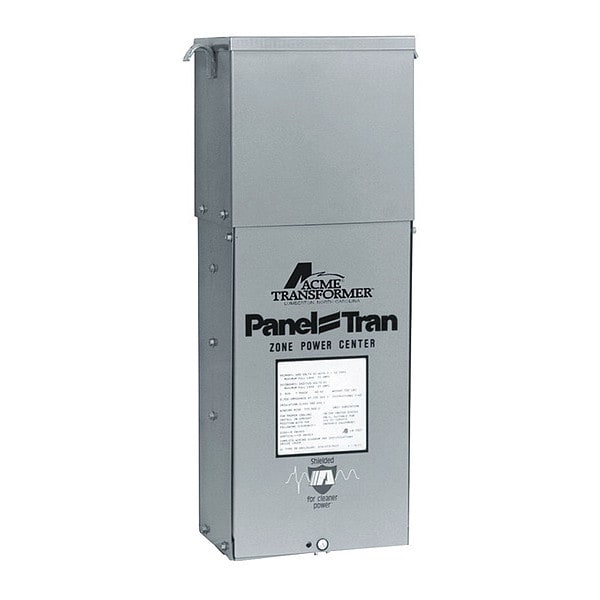

Toroidal Transformer, 10 kVA, NEMA 3R, 115°C, 120/240V AC, 480V
| Item | Toroidal Transformer |
|---|---|
| Input Voltage - Transformer | 480V |
| Mounting - Transformer | Wall |
| Hz - Electrical | 60 |
| VA Rating - Transformer | 10 kVA |
| Temp. Rise | 115 deg C |
| Depth | 11 in |
| Winding Material - Transformer | Copper |
| Height | 34.38 in |
| Output Voltage - Transformer | 120/240V AC |
| Standards | CSA C22.2 No. 47; UL 1062 |
| Phase - Electrical | 1 |
| Width | 15.88 in |
| Enclosure Rating | NEMA 3R |
| Enclosure Type | Encapsulated |
| Insulation Max. Temp. | 180 °C |
| Taps % Steps | 0.05 |
| Carton Quantity | 1 |
| UL Standard | UL 1062 |
| BNFC Taps | 2 |
| Electrostatic Shield | Shielded |
| Primary Breaker | ED42B035L (35A) |
| Secondary Breaker | Q250 (50A) |
| Product Category | Panel-Tran Zone Power Centers |
| UL Insulation Class | 180°C |
| CSA Standard | C22.2 No 47 |
| Max Temperature Rise | 115 Degrees Celsius |
| Primary Voltage | 480 |
| Construction | Encapsulated |
| Package Quantity | 1 |
