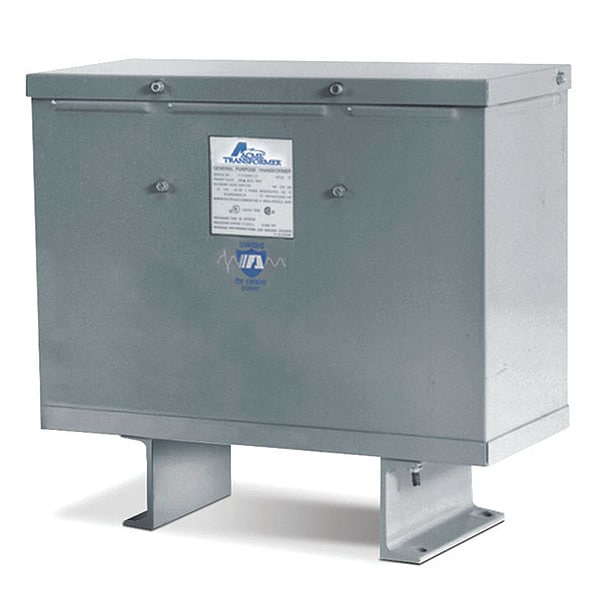

Transformer, 75/60 kVA, NEMA 3R, 115°C, 380/480V, 480/600V
| Item | Transformer |
|---|---|
| Input Voltage - Transformer | 480/600V |
| Mounting - Transformer | Floor |
| Hz - Electrical | 50/60 Hz |
| Depth | 9.03 in |
| Enclosure Rating | NEMA 3R |
| Height | 18.86 in |
| Width | 20.3 in |
| Output Voltage - Transformer | 380/480V |
| Phase - Electrical | 3 |
| Winding Material - Transformer | Aluminum |
| VA Rating - Transformer | 75/60 kVA |
| Temp. Rise | 115 deg C |
| UL Insulation Class | 180°C |
| BNFC Taps | 2 |
| CSA Standard | C22.2 No. 47 |
| Construction | Encapsulated |
| Material type | ZFIN |
| Taps % Steps | 0.05 |
| UL Standard | UL 506 |
| Primary Voltage | 600/480 V |
| Max Temperature Rise | 115 Degrees Celsius |
| Product Category | Dry Type Distribution Transformer |
| Carton Quantity | 1 |
| Package Quantity | 1 |
