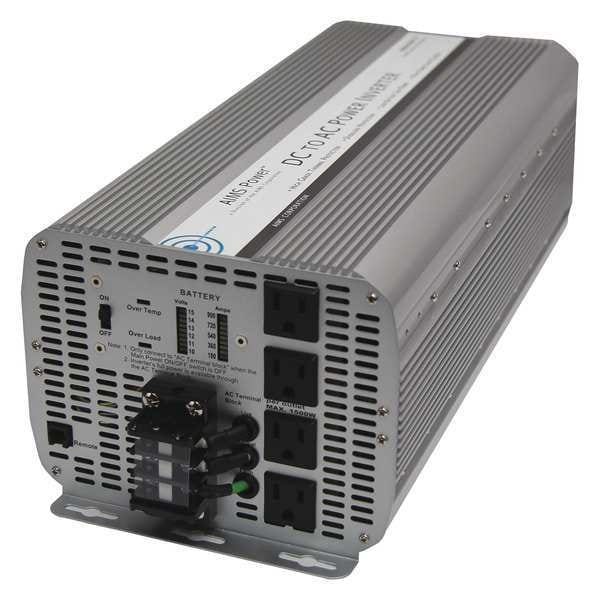

Power Inverter, Modified Sine Wave, 16,000 W Peak, 8,000 W Continuous, 4 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 16,000 W |
| Continuous Output Power | 8,000 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 10 to 15V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | 2 to 3-Prong Outlet |
| DC Connection | Terminal Bock |
| Number of Outlets | 4 |
| Case Material | Aluminum |
| Features | 8000W max continuous power;Modified sine wave;Volt meter on front panel to monitor your battery voltage;Amp meter on front panel to monitor your current use (rate at which battery is drained);Over Temperature LED indicator;Over Load LED indicator;AC direct connect terminal block;On/off switch;Over Temperature protection;Over Load protection;Single cooling fan thermally controlled;Internally fuse protected;AC output short circuit protection;Auto reset on most fault conditions;Aluminum case for optimal cooling;Pre-wired for remote on/off switch;Pre-slotted mounting plate;Instruction manual;Free 1 year tech support;1 Year Warranty Parts and Labor |
| Depth | 19.02 in |
| Width | 7.76 in |
| Height | 6.02 in |
| Nominal Output Power | 8,000 W |
| Inveter Output Voltage | 120V AC |
| Specification | Continuous output power: 8000 Watts;Surge power capability (peak power): 16000 Watts;dc input / operating voltage: 10 to 15 Volts;Output voltage: 120 Volts ac +/- 10%;Output wave form: modified sine wave with phase correction;Output frequency: 60 Hz +/- 1 Hz;Battery low voltage alarm: 10.5 +/- 0.5 Volts;Battery low voltage shutdown: 10.0 +/- 0.5 Volts;No load current: < 1.3 DC amps;Full load efficiency: 90%;1/3 load efficiency: 95%;No load minimum operating temperature: 30ºF;Full load maximum operating temperature: 140ºF;AC Output Socket Type: quadruple Type 2 -3 prong;High input voltage protection: 15V-17V;Low input voltage shutdown: 10V Internal fuse protection;Product size (L x W x H): 19.02"X 7.76"X 6.02";Weight: unit 19.8 lbs boxed 24 lbs;UL maximum recommended per outlet 1500W;This inverter requires 2 sets of 4 AWT cable if you are going to run at 8000 watts. |
| Package Quantity | 1 |
