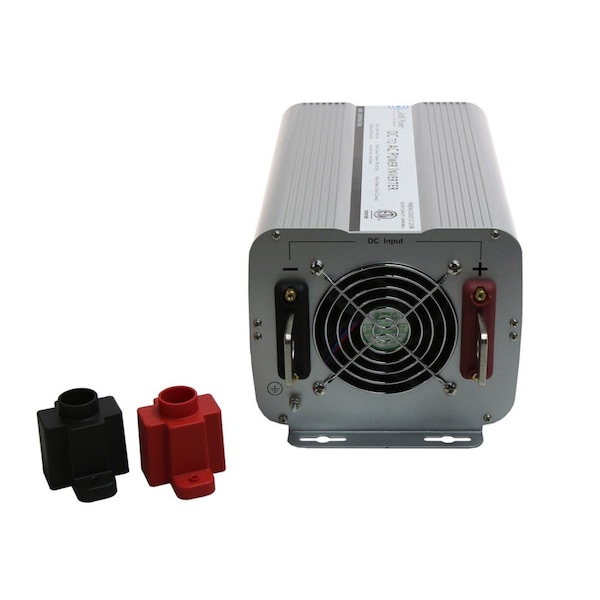

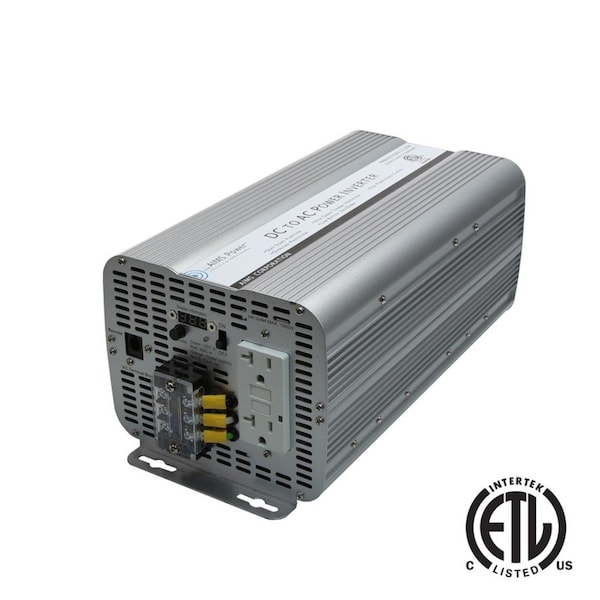

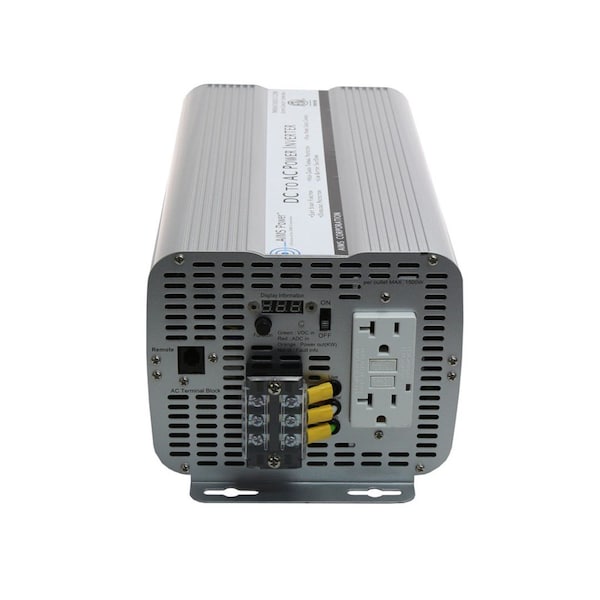

Power Inverter, Modified Sine Wave, 6,000 W Peak, 3,000 W Continuous, 2 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 6,000 W |
| Continuous Output Power | 3,000 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 10 to 15V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | GFCI |
| DC Connection | Terminal Bock |
| Number of Outlets | 2 |
| Application | Back-up power systems for homes, boats, cabins, solar, vehicle outfitters and other OEM type applications that require a UL 458 listing |
| Depth | 5.88 in |
| Includes | Power Inverter |
| Features | 3000W max continuous power, Modified sine wave, Digital Display, LED Monitoring Lights, Dual GFCI Outlet, AC Direct connect terminal block, Over Temperature protection, Over Load protection, Thermal Cooling fan operation, Internally fuse protected, ac output short circuit protection, Aluminum case for optimal cooling, Pre-slotted mounting plate, Instruction manual, Free tech support, 2 Year Warranty Parts and Labor, ETL Listed to UL 458 Standards and CSA 22.2 |
| Standards | UL 1741-SA I CSA 22.2 No.107-01 I UL1998 I UL1699B |
| Width | 6.63 in |
| Nominal Output Power | 3,000 W |
| Length | 14-3/4 in |
| Output Frequency | 60 Hz +/1.5 Hz |
| Specification | Specifications: Continuous output power: 3000 WattsSurge power capability (peak power): 6000 Wattsdc input / operating voltage: 10 to 15 VoltsOutput voltage: 120 Volts acOutput frequency: 60 Hz +/1 .5 HzBattery low voltage alarm: 10.5 +/- 0.5 VoltsBattery low voltage shutdown: 10.0 +/- 0.5 VNo load minimum operating temperature: 25 degrees FFull load maximum operating temperature: 140 degrees F (automatic shutdown)Efficiency: 90%No load draw: <1.4AAC amps: 30DC amps: 300AC Output Socket Type: dual GFCI and AC direct connect terminalHigh input voltage protection: 15VLow input voltage shutdown: 10VInternal fuse protectionProduct size (L x W x H): 14.5 X 6.62 X 5.6Weight: Unit: 8.38 lbs Boxed: 12 lbsETL Listed to UL458 Standards – CSA 22.2 |
| Color | Gray |
| Package Quantity | 1 |
