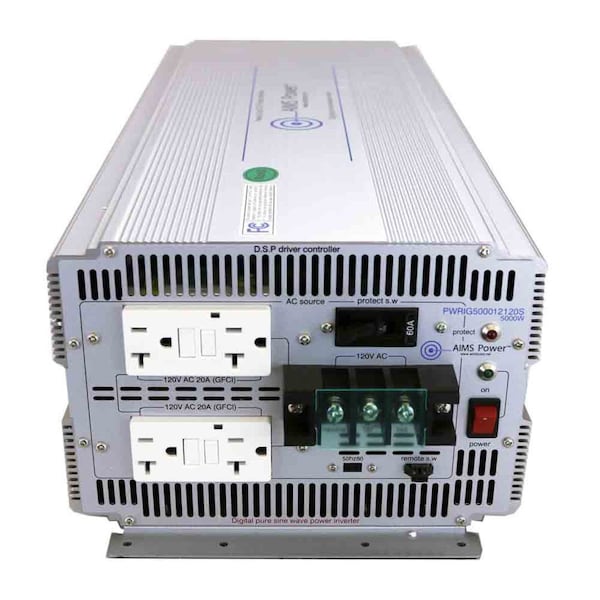

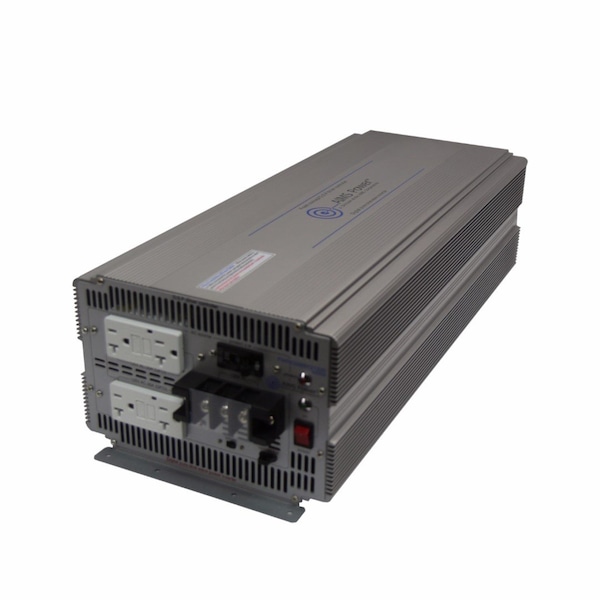

Power Inverter, Pure Sine, 1,0000 W Peak, 5,000 W Continuous, 4 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 10,000 W |
| Continuous Output Power | 5,000 W |
| Inverter Output Form | Pure Sine |
| Inverter Input Voltage | 48V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Standard 3-Prong / Hardwire |
| DC Connection | Battery Cables |
| Number of Outlets | 4 |
| Width | 8.88 in |
| Height | 6-1/4 in |
| Features | 5000 Watt continuous power, 10000 Watt surge for 0.5 second, 48 Volt DC input, Pure sine wave, 60hz or 50hz switch, Highly efficient – improved ouptut at low voltage, 2 – GFCI Dual Outlet, Direct connect AC Terminal Block, Connector and cable for remote on/off switch, Isolated ground & neutral, Short circuit protection (GFCI and AC Breaker), On/off switch, 5 Function Protection LED indicator, AC Breaker, DC volt meter included, Dual cooling fans thermally controlled, Instruction manual, 1 year tech support, 1 Year Warranty Parts and Labor replacement |
| Standards | N/A |
| Includes | Power Inverter |
| Nominal Output Power | 5,000 W |
| Application | Off-grid home back up power systems, solar, boat, work vehicles and RVs |
| Depth | 23-3/4 in |
| Length | 23-3/4 in |
| Inveter Output Voltage | 120V AC |
| Specification | Specifications;DC Input Voltage 48 V (41V-60V);Output Voltage no load 120Vac +/- 3%;Continuous 5000 Watts;Surge 10000 Watts;90% Efficiency @ full load;No Load Current (Fan Off) 0.60A 48V;No Load Current (Fan On) 1.08A 48V;Low Battery Shut Down: 40.0V;Low Battery Return on Power: 42.5V;High Battery Shut Down: 62.9V;High battery return on Power: 58.8V;Frequency Selection 50/60hz;Over Temperature Protection: -25ºC – 79ºC;Cooling Fan on Temperature: 40ºC;GFCI Outlets rated at 20A per block.;Dimensions (inches) 23.75 x 8.88 x 6.25;Weight: 27lbs |
| Efficiency (@ full load) | 0.9 |
| Color | Gray |
| Package Quantity | 1 |
