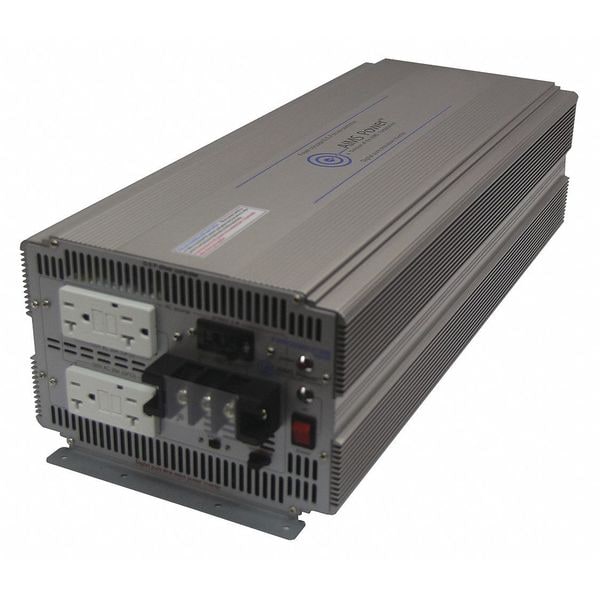

Power Inverter, Pure Sine Wave, 10,000 W Peak, 5,000 W Continuous, 4 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 10,000 W |
| Continuous Output Power | 5,000 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 13.2V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | GFCI, Hardwired |
| DC Connection | Terminal Posts |
| Number of Outlets | 4 |
| Depth | 23-3/4 in |
| Height | 6-1/4 in |
| Nominal Output Power | 5,000 W |
| Width | 8.88 in |
| Case Material | Aluminum |
| Power Factor | 89% |
| Standards | FCC Certified |
| Features | 5 Function Protection LED Indicator, AC Breaker, Direct Connect AC Terminal Block, Dual Cooling Fans Thermally Controlled, Efficient Output At Low Voltage, Isolated Ground and Neutral, On/Off Switch, Short Circuit Protection |
| Includes | Cable, Connector, DC Volt Meter |
| Application | Boats, Circuit Boards, Computer Servers, Cordless Drill Battery Chargers, Laserjet Printers, Medical Equipment, Microwaves, Off-Grid Home Back Up Power Systems, RVs, Sensitive Electronics, Small Compressors, Solar, Variable Speed Motors, Work Vehicles |
| Overall Width | 8-7/8 in |
| Overall Height | 6-1/4 in |
| Inveter Output Voltage | 120V AC |
| Output Frequency | 50/60 Hz |
| Output Current | 20 A, 83.3 A, 41.7 A |
| Number of USB Ports | 0 |
| NEMA Rating | NEMA 1 |
| Maximum Operating Temperature | 174 deg F |
| Output Form | Pure Sine Wave |
| Phase | Single Phase |
| Input Current | 463 A |
| Minimum Operating Temperature | -13 deg F |
| Input Voltage | 13.2V DC |
| Output Connection | (4) NEMA 5-20R; Terminal Block |
| Number of USB-C Ports | 0 |
| Overall Depth | 23-3/4 in |
| Inverter DxWxH | 23-3/4 in x 8-7/8 in x 6-1/4 in |
| IP Rating | IP20 |
| Fused | Yes |
| Input Connection | Input Terminals |
| Temperature Rise | 115 deg F |
| Output Voltage | 120 V AC |
| Efficiency | 91% |
| Type of Indicator | LED |
| Specification | Specifications;DC Input Voltage 13.2 V (10.5V-15V);Output Voltage no load 120Vac +/- 3%;Continuous 5000 Watts;Surge 10000 Watts (1/2 second);91% Efficiency @ full load;No Load Current (Fan Off) 2.6A 12V;No Load Current (Fan On) 4.4A 12V;Low Battery Shut Down: 10.0V;Low Battery Return on Power: 11.2V;High Battery Shut Down: 15.9V;High battery return on Power: 15.0V;Frequency Selection 50/60hz;Over Temperature Protection: -25ºC – 79ºC;Cooling Fan on Temperature: 40ºC;GFCI Outlets rated at 20A per block.;Dimensions (inches) 23.75 x 8.88 x 6.25;Weight: 27lbs |
| Package Quantity | 1 |
