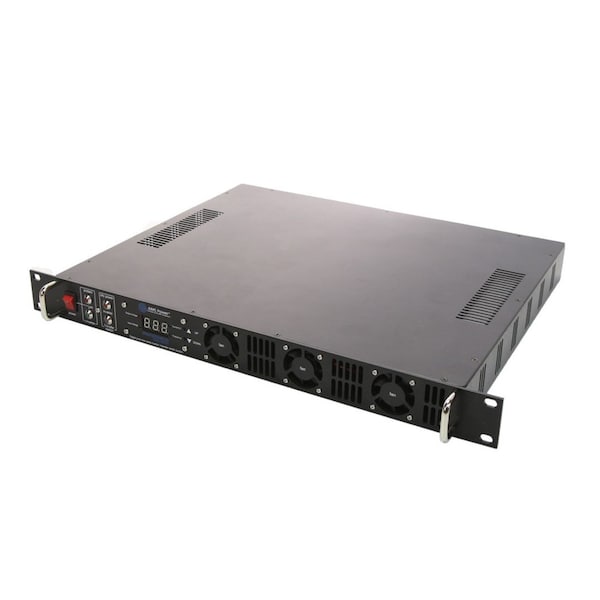

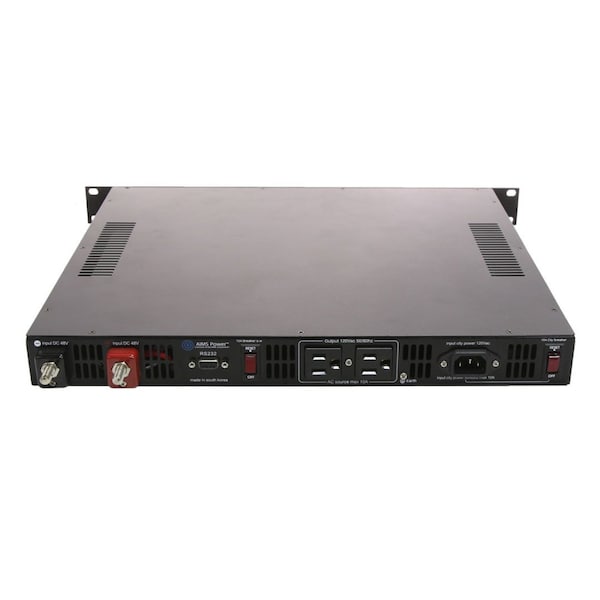

Power Inverter, Pure Sine Wave, 2,000 W Peak, 1,000 W Continuous, 2 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 2,000 W |
| Continuous Output Power | 1,000 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 21 to 30V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | 2 to 3-Prong Outlet |
| DC Connection | Battery Cables |
| Number of Outlets | 2 |
| Width | 1.7 in |
| Includes | Power Inverter |
| Depth | 19 in |
| Application | Backup power to equipment |
| Nominal Output Power | 1,000 W |
| Height | 14 in |
| Features | 1000W continuous power – 24 volt to 120 volt, Pure sine wave, 1U Rack Mount Inverter, FCC Class B, RS232 Communication Port – Monitored from a PC, Digital Status Display – Toggle, Dual ac receptacle, On/off switch, Utility Power Bypass, Automatic Transfer Switch, Over temperature indicator, Overload protection, Low battery voltage warning/shutdown, High input voltage protection with automatic shutdown, Over load indicator, Short circuit protection, Thermal and Load based fan, ac output short circuit protection, Instruction manual, Free 1 year tech support, 1 Year Warranty Parts and Labor |
| Standards | N/A |
| Length | 19 in |
| Inveter Output Voltage | 120V AC |
| Specification | Specifications: Continuous output power: 1000 Watts;Surge power capability (peak power): 2000 Watts;dc input / operating voltage: 21.0 to 30.0 Volts;Output voltage: 120 Volts ac;Output wave form: pure sine wave;Output frequency: 60 Hz;Low battery voltage shutdown: 20.0Volts;Low battery voltage recovery: 22.4 Volts;Low battery voltage warning/shutdown;No load power consumption: Fan Off 0.38A dc – Fan On 0.47A dc;Frequency: 60hz;Efficiency: 91%;Over temperature protection low: -4 degrees F ± 5 degrees F;Over temperature protection high: 172 degrees F ± 5 degrees F;Operating temperature recovery: 136 degrees F (automatic shutdown);AC Output Socket Type: dual Type 2 -3 prong;RS232 Communication Port;High input voltage protection: 31.3V;Low input voltage shutdown: 20V;AC Output and Bypass Protected 10A Breaker;FCC Class B – F690501/RF-EMC000376(H)Unit Weight: 11 lbs.Unit Size L x W x H: 19 x 1.7 x 14 inches;Unit Weight: 11 lbs.;Unit Size L x W x H: 19 x 1.7 x 14 inches |
| Color | Black |
| Package Quantity | 1 |
