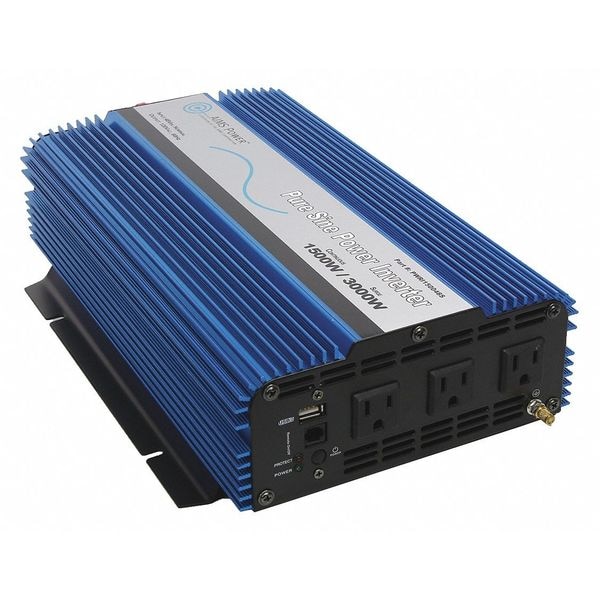

Power Inverter, Pure Sine Wave, 3,000 W Peak, 1,500 W Continuous, 3 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 3,000 W |
| Continuous Output Power | 1,500 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 48V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Standard 3-Prong Outlet |
| DC Connection | Terminal Posts |
| Number of Outlets | 3 |
| Nominal Output Power | 1,500 W |
| Depth | 15-7/8 in |
| Case Material | Aluminum |
| Width | 8-3/8 in |
| Height | 3-7/8 in |
| Includes | Remote Port, USB Port |
| Application | Boats, Buses, RVs, Vans, Vehicles |
| Power Factor | 89% |
| Features | AC Output Short Circuit Protection, High Input Voltage Protection With Automatic Shutdown, Low Battery Voltage Warning/Shutdown, Over Load Indicator, Over Temperature Indicator, Short Circuit Protection |
| Overall Height | 3-7/8 in |
| Overall Width | 8-3/8 in |
| Inveter Output Voltage | 120V AC |
| Output Frequency | 60 Hz |
| Temperature Rise | 115 deg F |
| Efficiency | 90% |
| IP Rating | IP20 |
| Input Current | 35 A |
| Input Voltage | 38 to 62V DC |
| Number of USB Ports | 1 |
| Fused | Yes |
| Number of USB-C Ports | 1 |
| Phase | Single Phase |
| Inverter DxWxH | 15-7/8 in x 8-3/8 in x 3-7/8 in |
| Output Form | Pure Sine Wave |
| Input Connection | Input Terminals |
| Type of Indicator | LED |
| Output Current | 12.5 A, 25 A, 900 mAh |
| Output Voltage | 120 V AC |
| NEMA Rating | NEMA 1 |
| Overall Depth | 15-7/8 in |
| Maximum Operating Temperature | 104 deg F |
| Output Connection | (3) Type B Socket; USB |
| Minimum Operating Temperature | 32 deg F |
| Specification | Continuous output power 1500 watts;Surge power 3000 watts;Input voltage range 38-62v;Output voltage 120v;DC input 48v;Output wave form Pure sine wave 60Hz (THD ≤3%)\;Efficiency 90%;USB Output 5VDC, Max, 1A;Input over-voltage shutdown 62 ± 1VDC;Input under-voltage shutdown 38 ± 1VDC;Input under-voltage alarm 39.2 ± 1VDC;Over temperature protection 149 ± 8°F;Over-load protection 1700W ± 200W;No Load currents 0.5A;Working Temperature 32-104°F;Storage temperature 14-113°F;Intelligent cooling (the cooling fan will start running when the case temperature reaches 104°F);Dimension (L x W x H) 15.875 x 8.375 x 3.875 in.;Unit Weight 10 lbs;Shipping weight 12 lbs;Remote port for optional remote |
| Package Quantity | 1 |
