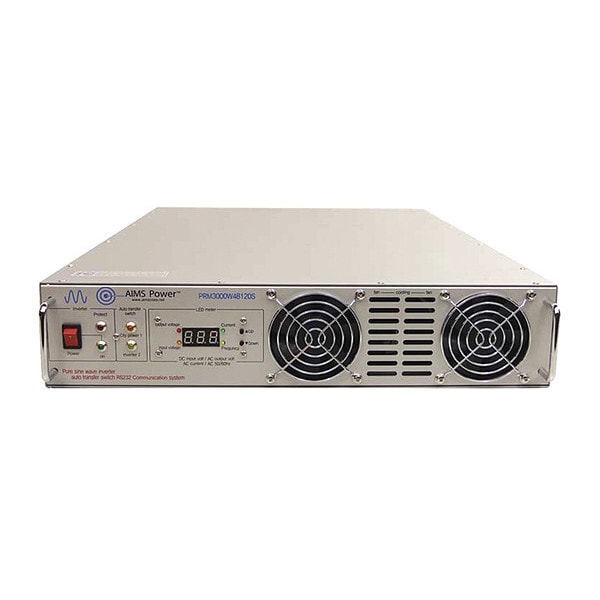

Power Inverter, Pure Sine Wave, 6,000 W Peak, 3,000 W Continuous, 2 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 6,000 W |
| Continuous Output Power | 3,000 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 24V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | 2 to 3-Prong Outlet |
| Number of Outlets | 2 |
| Features | Features: 3000W continuous power – 24 volt to 120 volt;Pure sine wave;2U Rack Mount Inverter;FCC Class B;RS232 Communication Port – Monitored from a PCInput dc voltageOutput ac voltageFrequencyAC Current;Input dc voltage;Output ac voltage;Frequency;AC Current;Digital Status Display – ToggleInput dc voltageOutput ac voltageFrequencyAC Current;Input dc voltage;Output ac voltage;Frequency;AC Current;Dual ac receptacle;On/off switch;Utility Power Bypass;Automatic Transfer Switch;Over temperature indicator;Overload protection;Low battery voltage warning/shutdown;High input voltage protection with automatic shutdown;Over load indicator;Short circuit protection;Thermal and Load based fan;ac output short circuit protection;Instruction manual;Free 1 year tech support;1 Year Warranty Parts and Labor |
| Nominal Output Power | 3,000 W |
| Specification | Specifications: Dimensions: Continuous output power: 3000 Watts;Surge power capability (peak power): 6000 Watts;dc input / operating voltage: 21.0 to 30.0 Volts;Output voltage: 120 Volts ac;Output wave form: pure sine wave;Output frequency: 60 Hz;Low battery voltage shutdown: 20.0 Volts;High battery voltage shutdown: 31.7 Volts;High battery voltage power return: 30.0Volts;Low battery voltage recovery: 22.4 Volts;Low battery voltage warning/shutdown;No load power consumption: Fan Off 0.60A dc – Fan On 1.5A dc;Frequency: 60hz;Efficiency: 91%;Over temperature protection low: -4 degrees F ± 5 degrees F;Over temperature protection high: 172 degrees F ± 5 degrees F;Operating temperature recovery: 136 degrees F (automatic shutdown);AC Output Socket Type: dual Type 2 -3 prong;RS232 Communication Port;High input voltage protection: 31.3V;Low input voltage shutdown: 20V;Transfer Switch Time: 16-18 msec (program controlled);AC Output and Bypass Protected 34A Breaker;FCC Class B – F690501/RF-EMC000376(H);Unit Weight: 27.6 lbs.;Unit Size L x H x W: 20.9 x 16.5 x 3.5 inches |
| Package Quantity | 1 |
