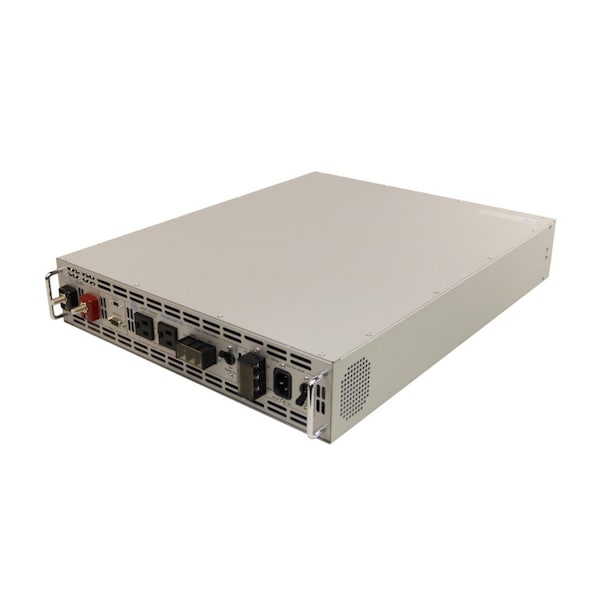

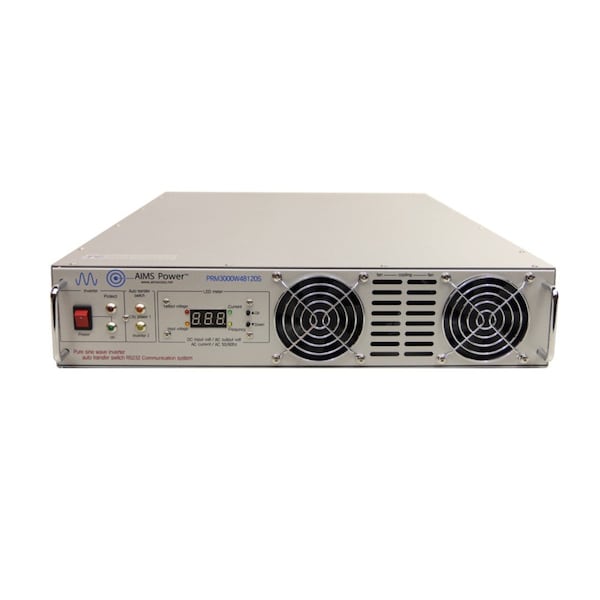

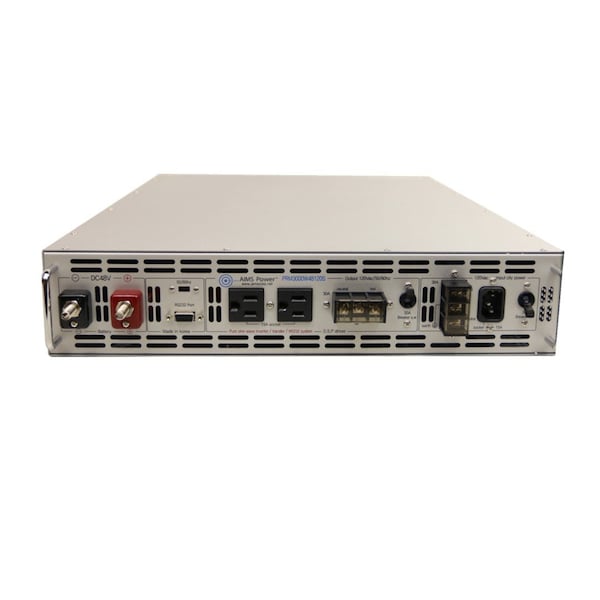

Power Inverter, Pure Sine Wave, 6,000 W Peak, 3,000 W Continuous, 2 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 6,000 W |
| Continuous Output Power | 3,000 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 48V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | 2 to 3-Prong Outlet |
| Number of Outlets | 2 |
| Length | 21-3/4 in |
| Depth | 3.63 in |
| Standards | N/A |
| Width | 16-1/2 in |
| Nominal Output Power | 3,000 W |
| Includes | Power Inverter |
| Application | Backup power to equipment |
| Features | 3000W continuous power, 48 volt to 120 volt, Pure sine wave, 2U Rack Mount Inverter, FCC Class B, RS232 Communication Port – Monitored from a PC, Digital Status Display – Toggle, Dual ac receptacle, On/off switch, Utility Power Bypass, Automatic Transfer Switch, Over temperature indicator, Overload protection, Low battery voltage warning/shutdown, High input voltage protection with automatic shutdown, Over load indicator, Short circuit protection, Thermal and Load based fan, ac output short circuit protection, Instruction manual, Free 1 year tech support, 1 Year Warranty Parts and Labor |
| Specification | Specifications: Dimensions: Continuous output power: 3000 Watts;Surge power capability (peak power): 6000 Watts;dc input / operating voltage: 41.0 to 60.0 Volts;Output voltage: 120 Volts ac;Output wave form: pure sine wave;Output frequency: 60 Hz;Low battery voltage shutdown: 40.6 Volts;Low battery voltage recovery: 42.5 Volts;High battery shutdown: 61 Volts;High battery power return: 59 Volts;Low battery voltage warning/shutdown;No load power consumption: Fan Off 0.30A dc – Fan On 0.42A dc;Frequency: 60hz;Efficiency: 91%;Over temperature protection low: -4 degrees F ± 5 degrees F;Over temperature protection high: 172 degrees F ± 5 degrees F;Transfer Switch Time: 16-18 msec s F;Operating temperature recovery: 136 degrees F (automatic shutdown) ± 5 degrees F;AC Output Socket Type: dual Type 2 -3 prong;RS232 Communication Port;AC Output and Bypass Protected 34A Breaker;FCC Class B – F690501/RF-EMC000377(H);Unit Weight: 27.6 lbs.;Unit Size L x W x H: 20.9 x 16.5 x 3.5 inches |
| Color | Gray |
| Package Quantity | 1 |
