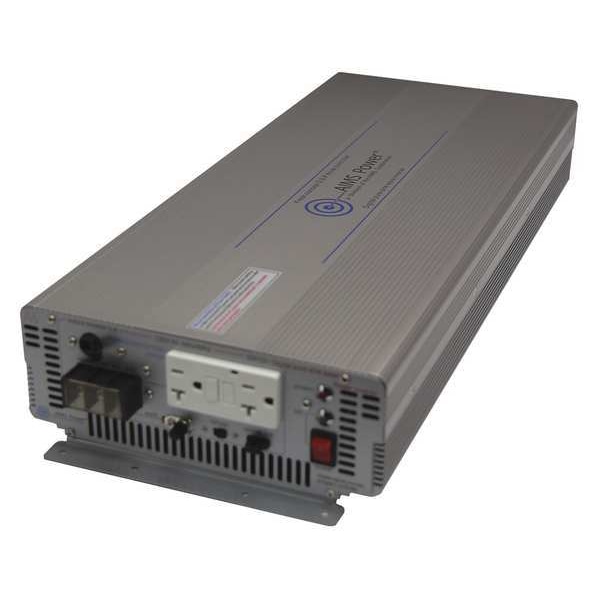

Power Inverter, Pure Sine Wave, 6,000 W Peak, 3,000 W Continuous, 2 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 6,000 W |
| Continuous Output Power | 3,000 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 10.5 to 16V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | GFCI |
| DC Connection | Terminal Posts |
| Number of Outlets | 2 |
| Height | 3-1/2 in |
| Nominal Output Power | 3,000 W |
| Depth | 20.47 in |
| Case Material | Aluminum |
| Width | 8.86 in |
| Standards | FCC Certified |
| Power Factor | 89% |
| Features | 5 Function Protection LED Indicator, AC Breaker, Direct Connect AC Terminal Block, Dual Cooling Fans Thermally Controlled, Improved Output At Low Voltage, Isolated Ground and Neutral, On/Off Switch, Short Circuit Protection |
| Application | Boats, Circuit Boards, Computer Servers, Cordless Drill Battery Chargers, Laserjet Printers, Medical Equipment, Microwaves, Off-Grid Home Back Up Power Systems, RVs, Sensitive Electronics, Small Compressors, Solar, Variable Speed Motors, Work Vehicles |
| Includes | Cable, Connector, DC Volt Meter |
| Overall Width | 8-7/8 in |
| Overall Height | 3-1/2 in |
| Inveter Output Voltage | 120V AC |
| Output Frequency | 50/60 Hz |
| Number of USB-C Ports | 0 |
| Temperature Rise | 115 deg F |
| NEMA Rating | NEMA 1 |
| Type of Indicator | LED |
| Overall Depth | 20-1/2 in |
| Input Current | 278 A |
| Fused | Yes |
| Output Form | Pure Sine Wave |
| Number of USB Ports | 0 |
| Output Current | 20 A, 50 A, 25 A |
| Phase | Single Phase |
| Inverter DxWxH | 20-1/2 in x 8-7/8 in x 3-1/2 in |
| Input Voltage | 10.5 to 16V DC |
| Output Connection | (2) NEMA 5-20R; Terminal Block |
| Minimum Operating Temperature | -4 deg F |
| IP Rating | IP20 |
| Output Voltage | 120 V AC |
| Maximum Operating Temperature | 176 deg F |
| Input Connection | Input Terminals |
| Efficiency | 90% |
| Specification | Specifications: Continuous output power: 3000 Watts;Surge power capability (peak power): 6000 Watts;Dc input / operating voltage: 10.5-16 Volts;Output voltage: 120 Volts ac;Output voltage regulation: +/- 3%;Output wave form: pure sine wave;Output frequency: 50/60 Hz;Battery low voltage alarm: 10.5 +/- 0.5 Volts;Battery low voltage shutdown: 10.0 v +/- 0.5 Volts;No load power consumption: fan off <0.9 DC amps or fan on <1.37 DC amps;THD: <5%;Full load efficiency: 90%;1/3 load efficiency: 95%;No load minimum operating temperature: -4 degrees Farenheit;Full load maximum operating temperature: 176 degrees Farenheit (automatic shutdown);GFCI Resetable AC Outlet;High input voltage shutdown: 17V;Low input voltage shutdown: 10V;Internal blade fuse protection;Product size (L x W x H): 20.47" x 8.86" x 3.50";Weight: 16.09 lbs unit boxed 20 lbs |
| Package Quantity | 1 |
