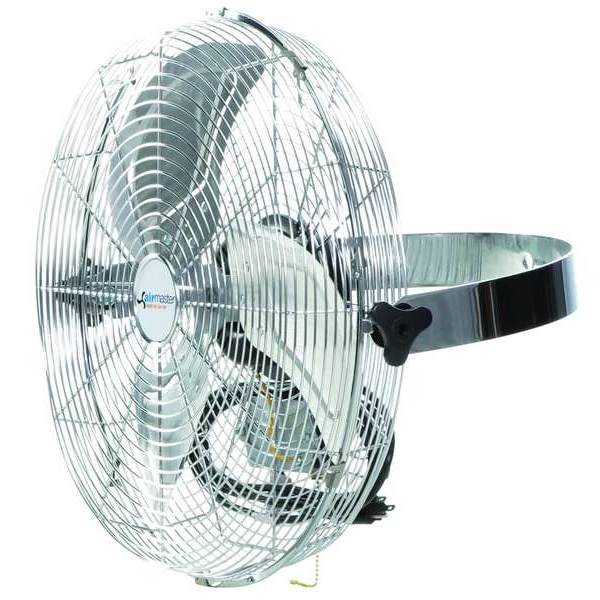

Light Duty Industrial Fan, Ceiling, Wall Mount, 20 in Blade Dia, 115V, 4,387/5,020/5,950 cfm
| Blade Diameter | 20 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 3 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.2 HP |
| Air Flow | 4,387/5,020/5,950 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Sound Level | 71/68/65 dBA |
| Item | Industrial Fan |
| Requires | Assembly |
| Width | 25 in |
| Motor Enclosure | Open Dripproof |
| Max. Ambient Temp. | 105 deg F |
| Standards | cUL/OSHA |
| Includes | Pull Cord Speed Selection Switch |
| Fan Accessory Style | Standard |
| Wire Guard Finish | Nickel Chrome |
| Application | Spot Cooling and People Cooling |
| Fan Style | Light Duty |
| Thermal Protection | Automatic |
| Max. Depth | 9 in |
| Mobile/Stationary | Stationary |
| Shaft Dia. | 3/8 in |
| NEMA Plug Configuration | 5-15p |
| Fan Mounting Location | Wall, Ceiling |
| Height | 23-1/2 in |
| CFM Low | 2,295 |
| Outside Dia. | 22-1/2 in |
| Environmental Applications | Commercial |
| Guard Material | Steel |
| Assembled | No |
| Number of Blades | 3 |
| Motor RPM | 1,600 RPM |
| Hz | 60 |
| Motor Type | Shaded pole |
| Number of Conductors | 3 |
| Housing Material | Steel |
| CFM Medium | 2,755 |
| CFM High | 3,390 |
| Motor Insulation | Class B |
| Bearing Type | Ball |
| Wheeled Base | Stationary |
| Material | Steel |
| Amps | 1.9 |
| Fan Cord Length | 8 ft |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
