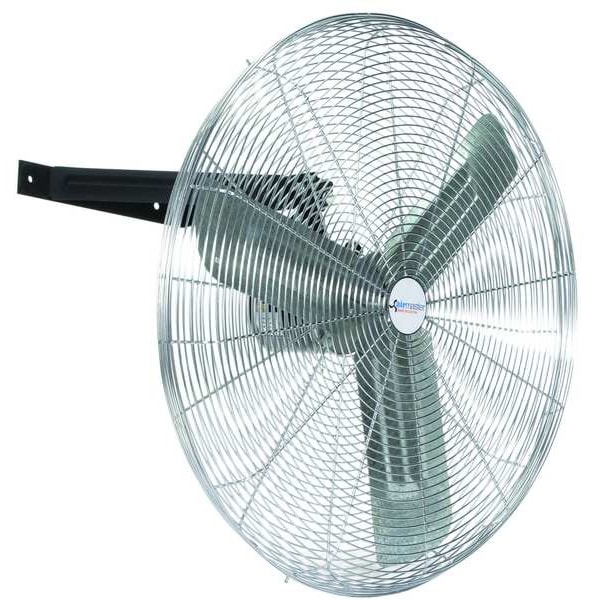

Standard Duty Air Circulator, Ceiling, Wall Mount, 30 in Blade Dia, 115V, 2,700/4,400/6,100 cfm
| Blade Diameter | 30 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 3 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.25 HP |
| Air Flow | 2,700/4,400/6,100 cfm |
| Drive Type | Direct Drive |
| Blade Material | Galvanized Steel |
| Sound Level | 76 dBA |
| Item | Air Circulator |
| Application | Spot Cooling and People Cooling; Air Circulation |
| Thermal Protection | Automatic |
| Watts | 230 W |
| Air Velocity @ 60 Ft. | 200 fpm |
| Mobile/Stationary | Stationary |
| Air Velocity @ 10 Ft. | 800 fpm |
| Hz | 60 |
| Max. Depth | 21 in |
| Motor Type | Permanent Split Capacitor |
| CFM Medium | 4,400 |
| Shaft Dia. | 5/8 in |
| Environmental Applications | Commercial |
| Air Velocity @ 40 Ft. | 200 fpm |
| Includes | Ceiling/Wall Bracket, Secondary Safety Support Cable |
| Air Velocity @ 20 Ft. | 500 fpm |
| NEMA Plug Configuration | 5-15p |
| Fan Mounting Location | Wall, Ceiling |
| Motor Enclosure | Totally Enclosed Air Over |
| Width | 33 in |
| Housing Material | Steel |
| CFM High | 6,100 |
| Height | 96 in |
| Fan Accessory Style | Standard |
| Number of Blades | 3 |
| Fan Style | Standard Duty |
| Number of Conductors | 3 |
| Air Velocity @ 80 Ft. | 100 fpm |
| Bearing Type | Ball |
| Standards | cULus/OSHA |
| CFM Low | 2,700 |
| Motor RPM | 1,100 RPM |
| Motor Insulation | Class B |
| Assembled | No |
| Outside Dia. | 33 in |
| Requires | Assembly |
| Wire Guard Finish | Nickel Chrome |
| Guard Material | Steel |
| Max. Ambient Temp. | 104 deg F |
| Wheeled Base | Stationary |
| Material | Steel |
| Amps | 3.3 |
| Fan Cord Length | 15 ft |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
