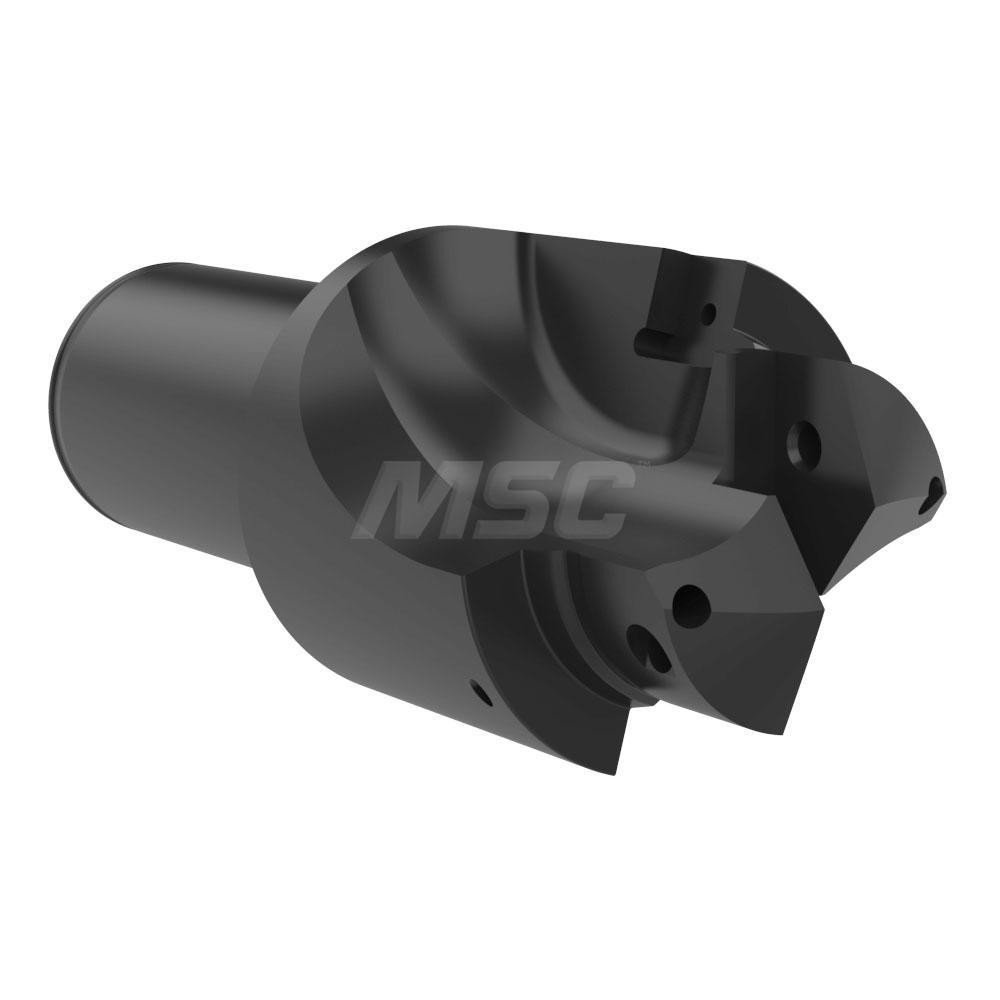

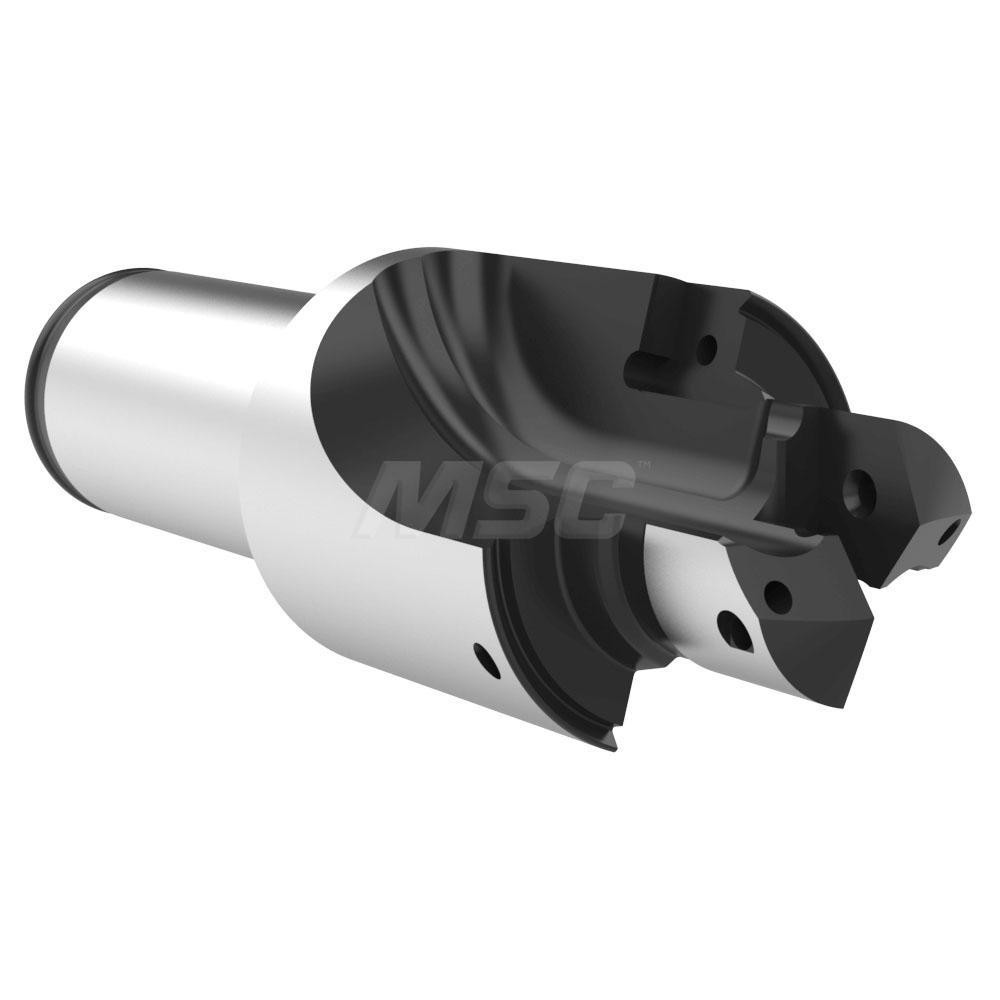

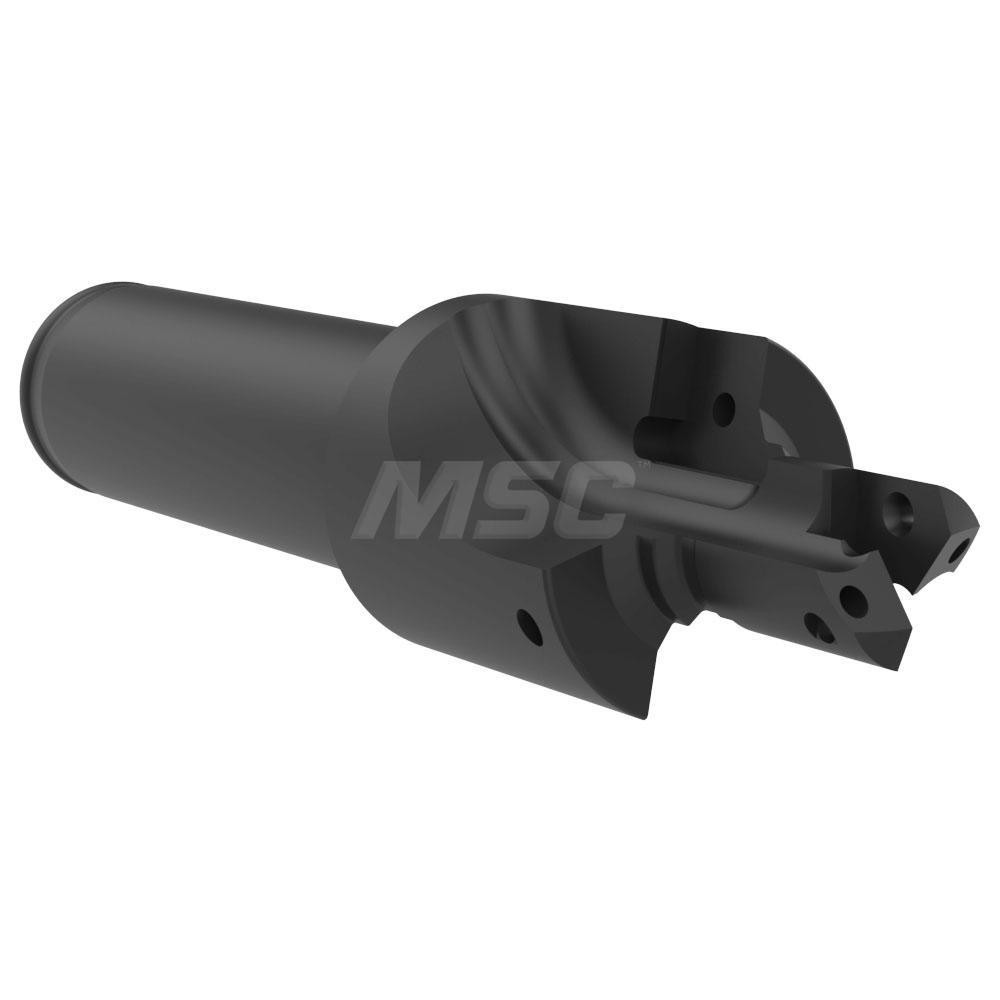

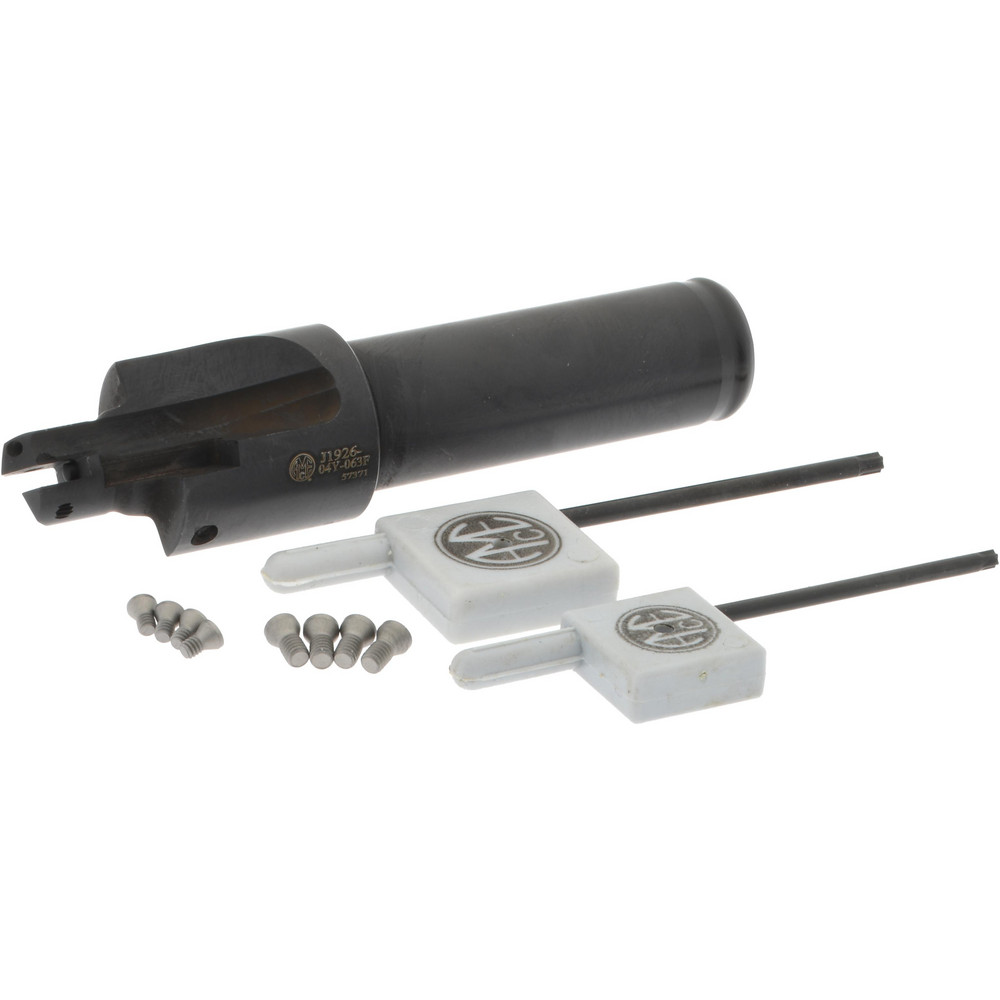

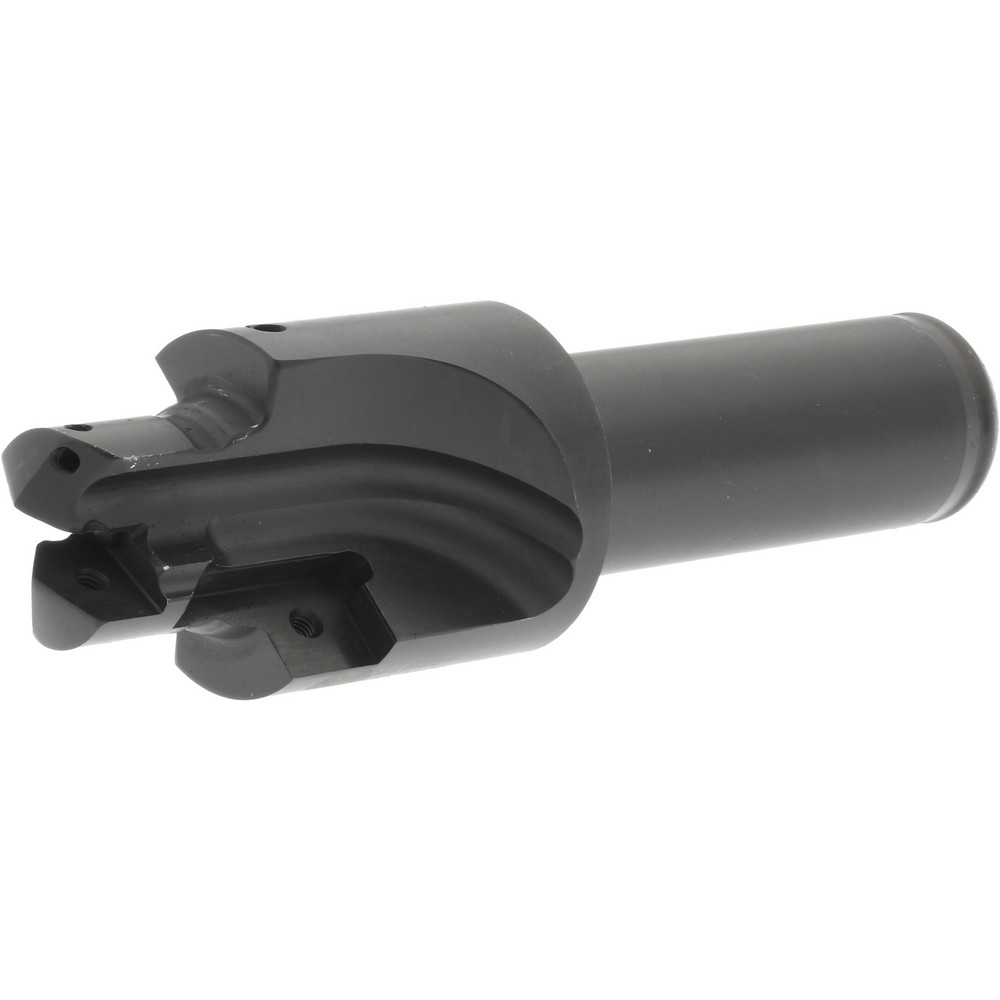

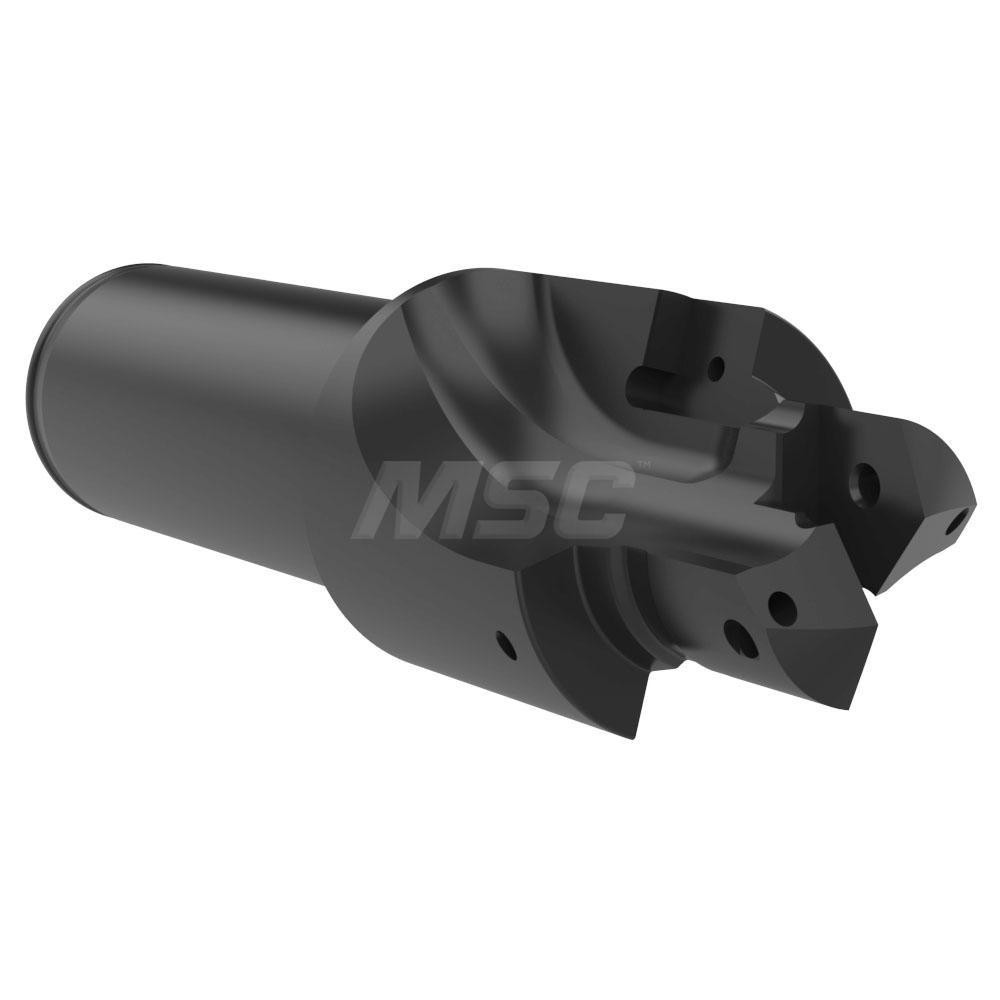

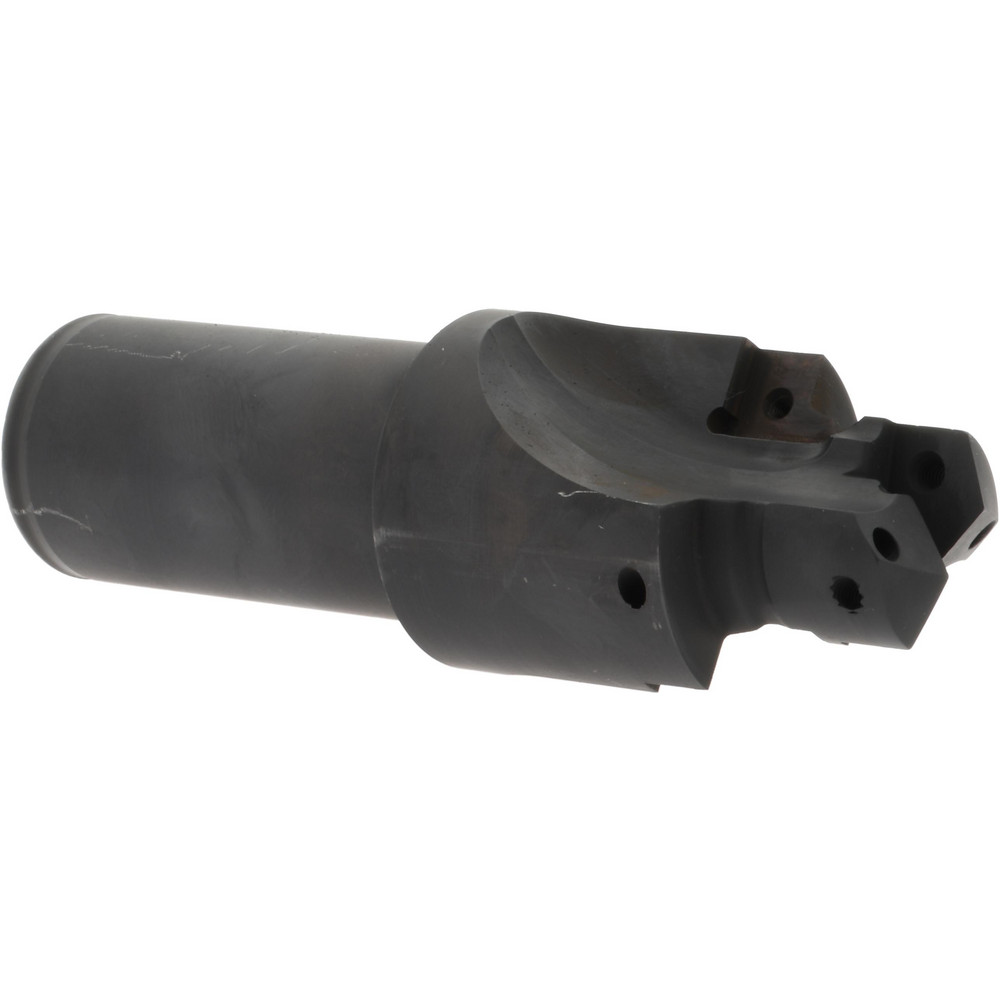

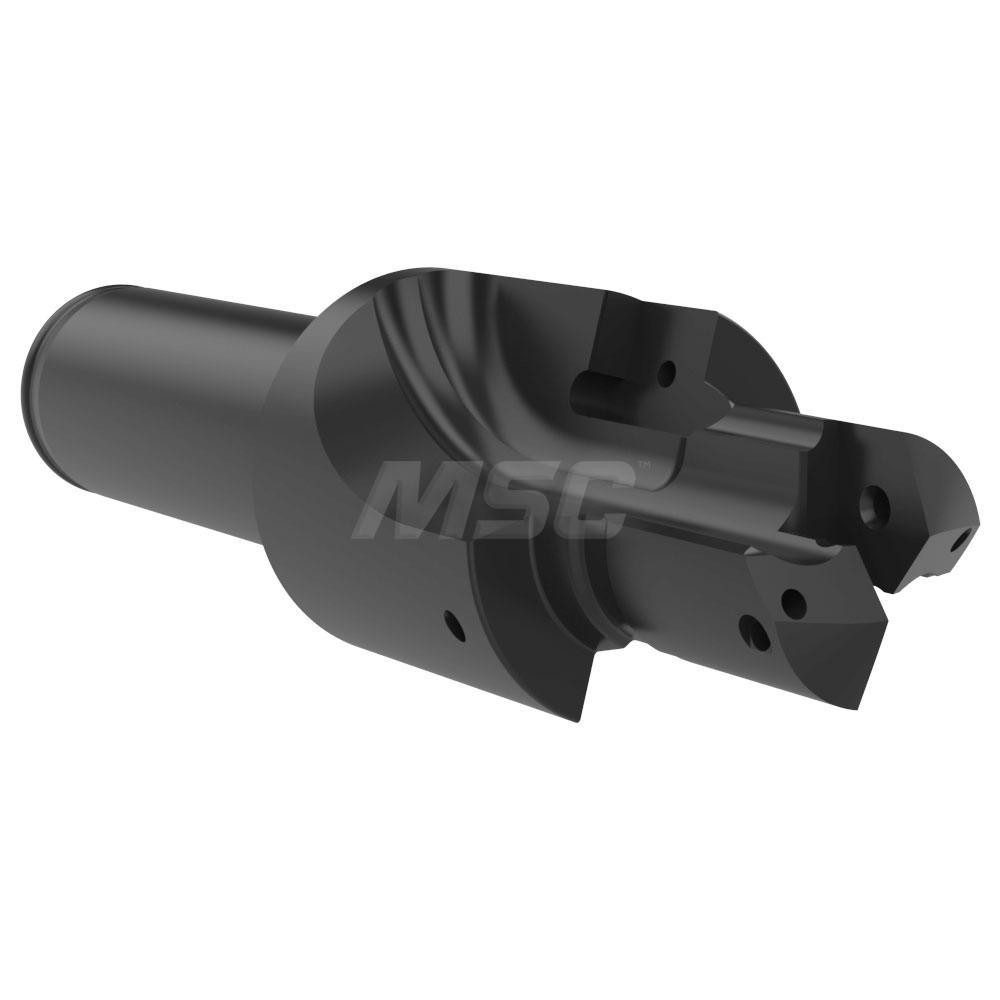

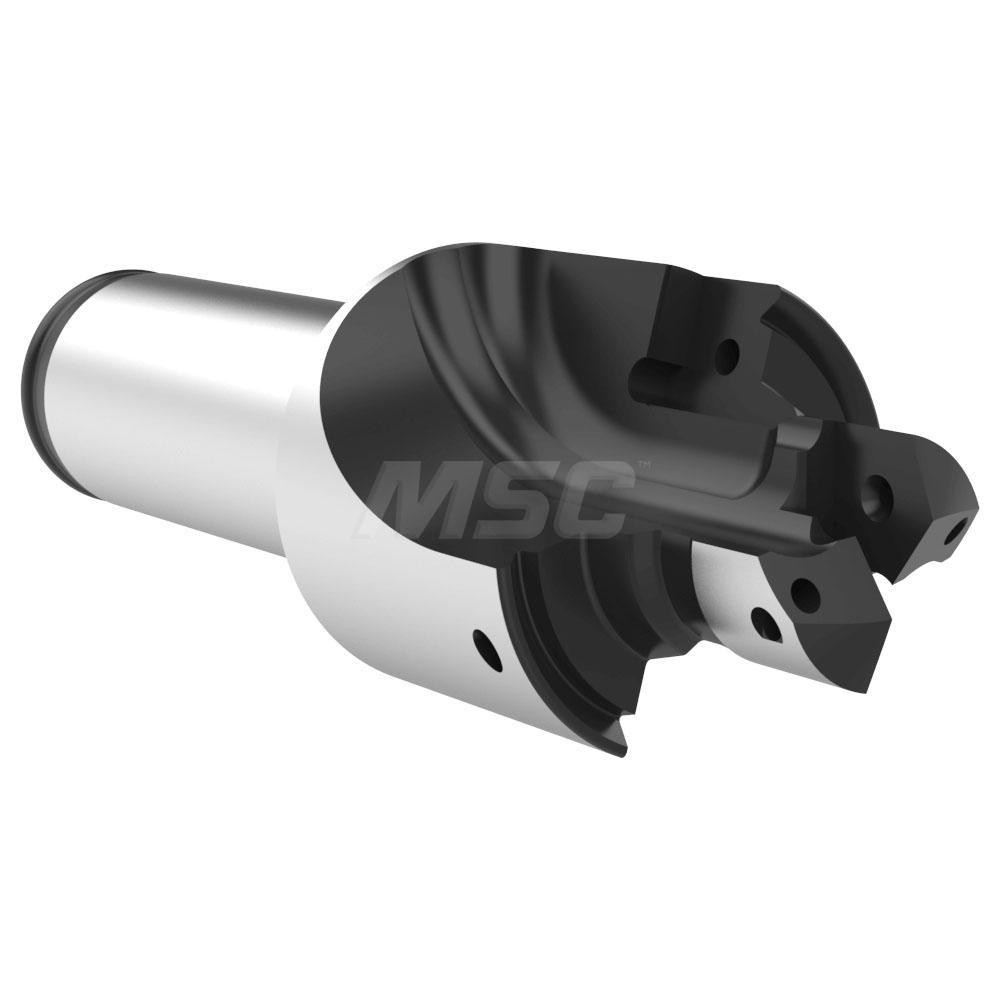

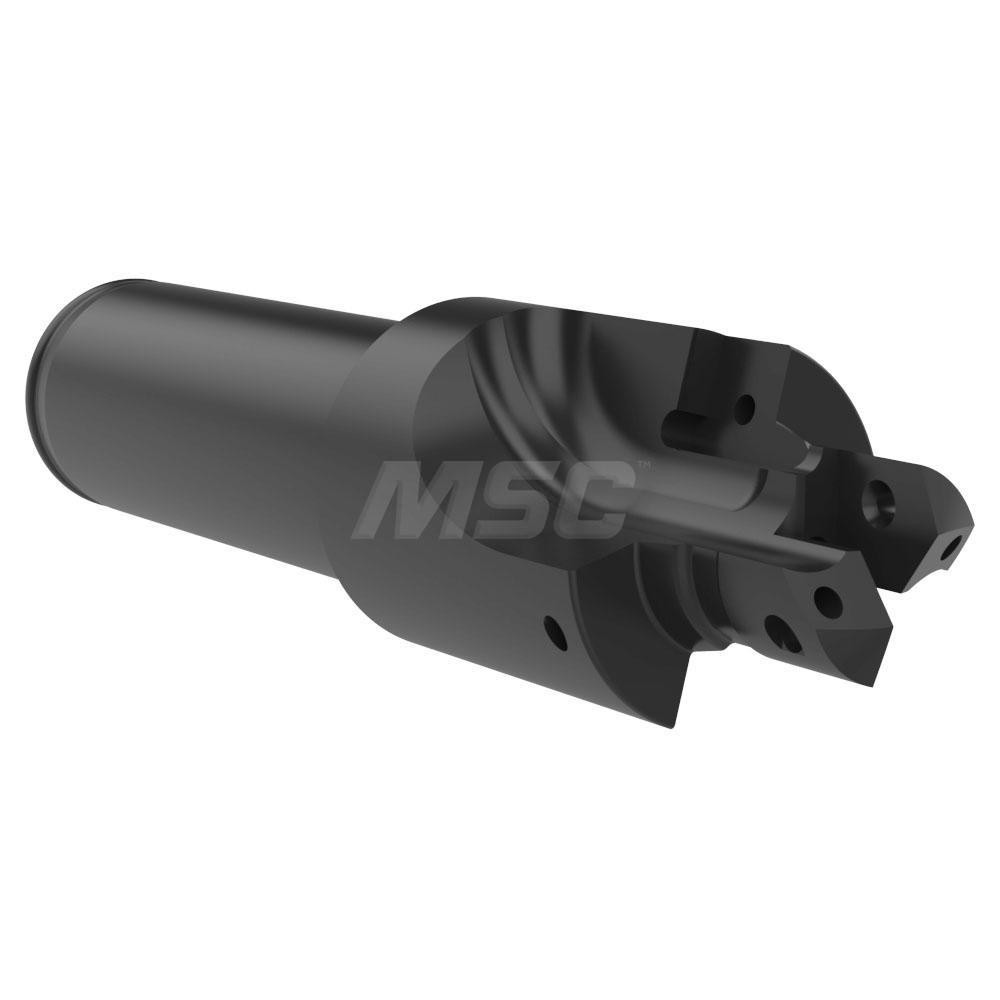

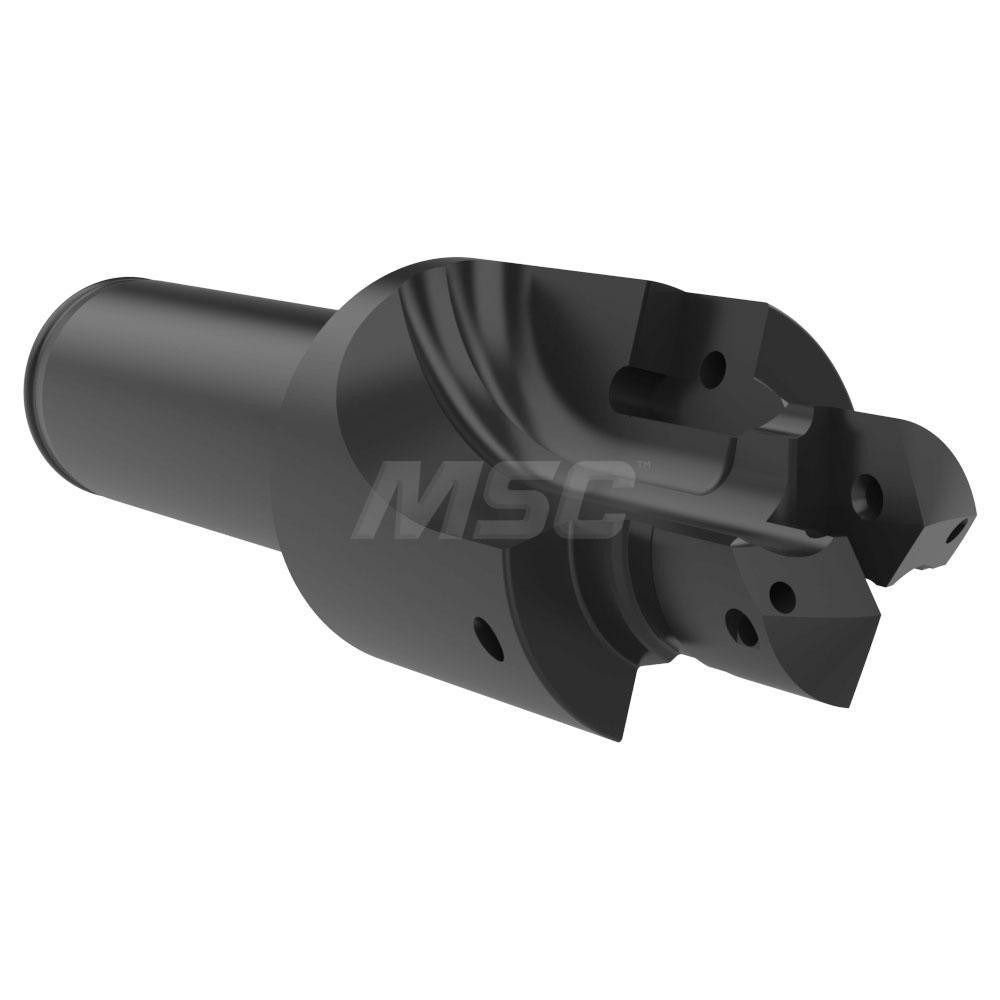

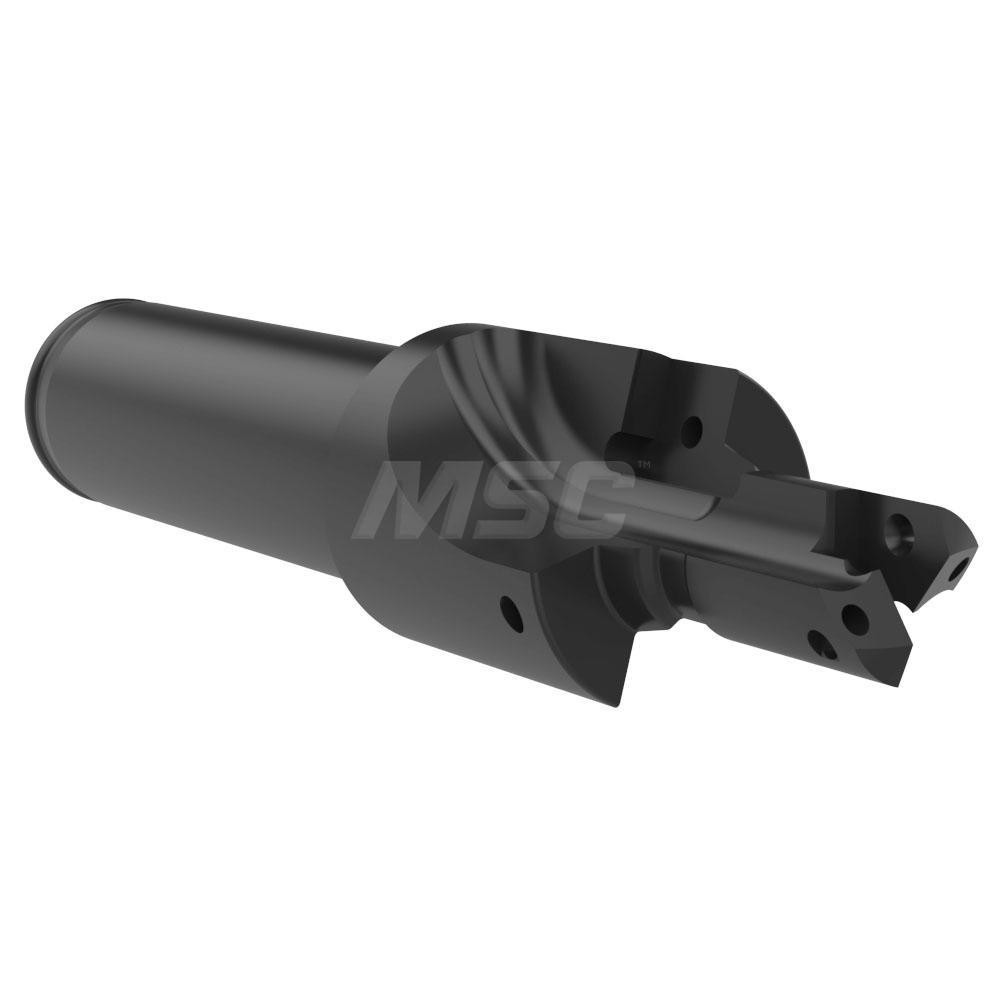

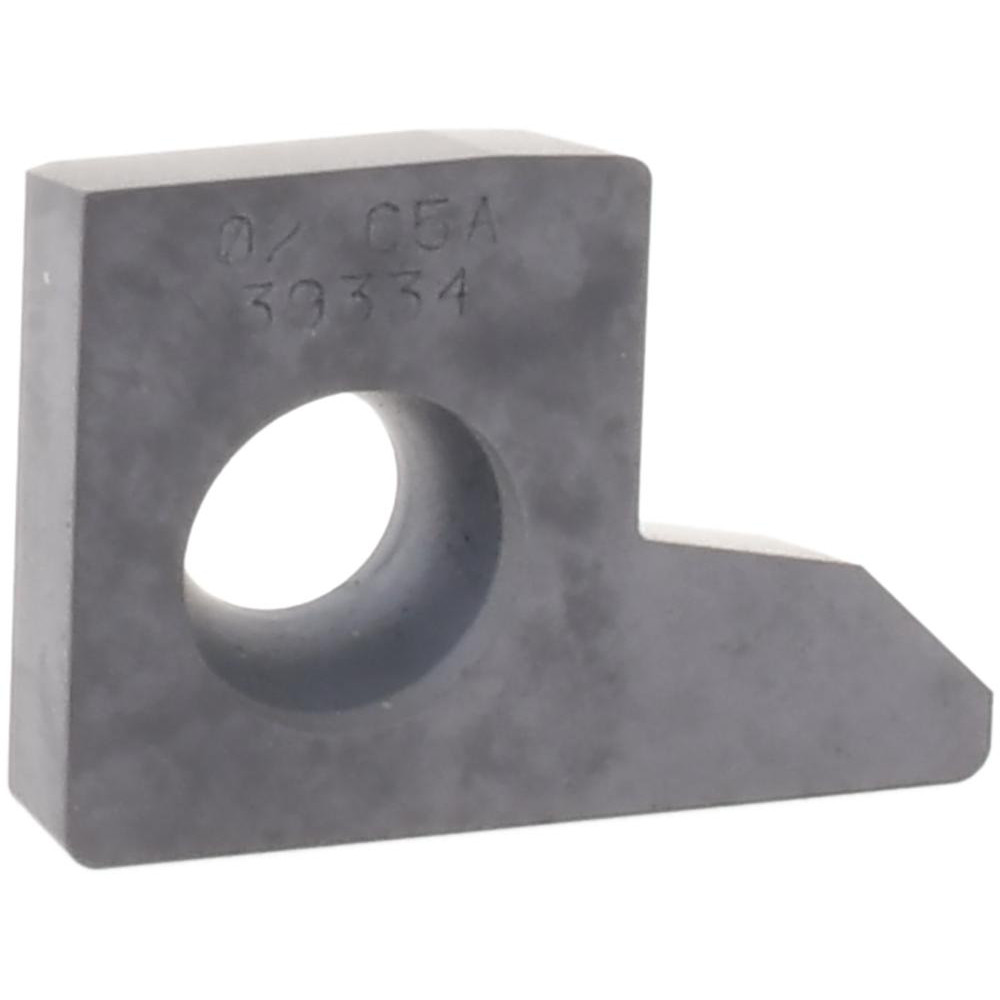

Takes 2 Inserts, J1926-07-C3H, J1926-07-C5A Insert Compatibility, IS0 11926-1, SAE J1926-1/MS-16142
| Port Standard Designation | IS0 11926-1; SAE J1926-1/MS-16142 |
|---|---|

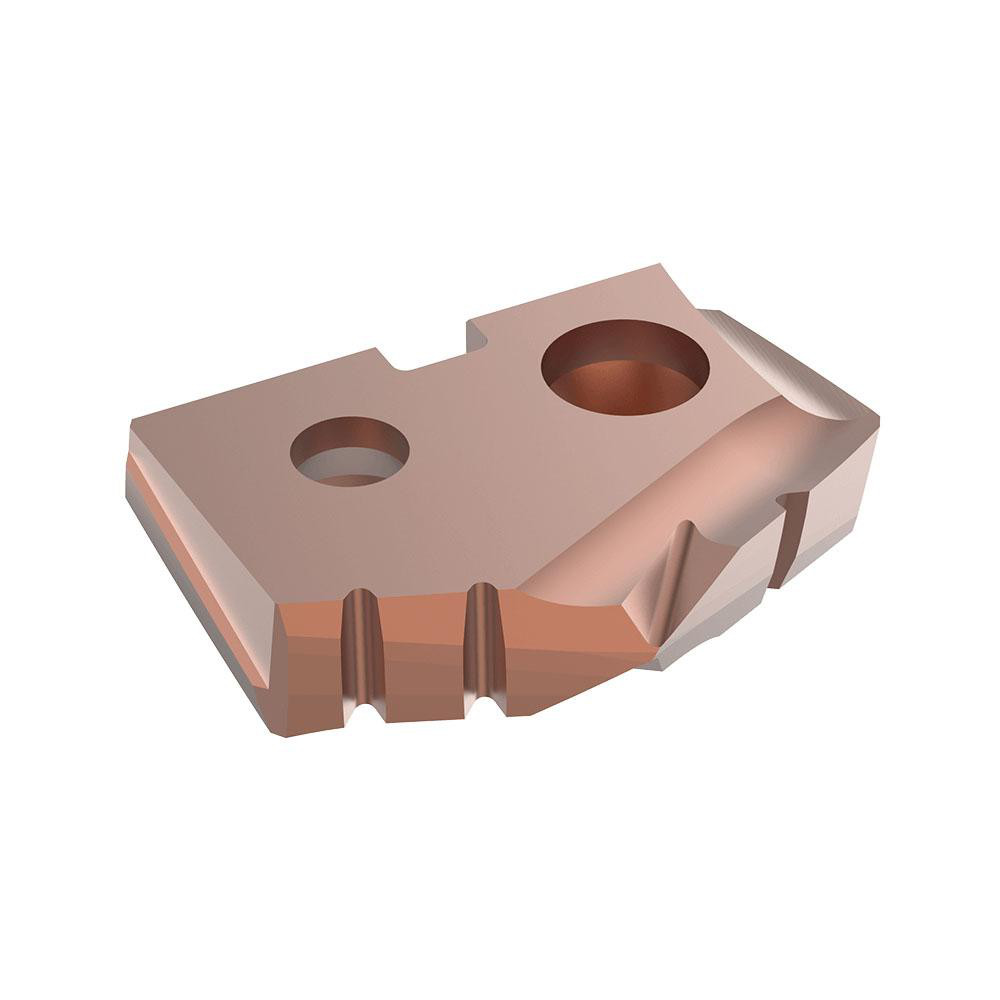

| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 3/4-16 |
| Tube Dash Number | 8 |
| Pilot Diameter (Decimal Inch) | 0.6880 |
| Spotface Diameter (Decimal Inch) | 1.2070 |
| Shank Diameter (Inch) | 0.6875 |
| Compatible Insert Style | J1926 |
| Compatible Insert Size Code | 4C10H-0022; 450H-0022 |
| Number of Porting Inserts | 2 |
| Coated | Coated |
| Porting Diameter (Decimal Inch) | 0.8130 |
| Overall Length (Decimal Inch) | 3.9510 |
| Seal Angle Length | 0.106 in |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; H; K; N |
| Through Coolant | No; Yes |
| Porting Angle | 15 |
| Porting Angle Length (Decimal Inch) | 0.1060 |
| Head Length (Decimal Inch) | 1.9820 |
| Shank Length (Decimal Inch) | 1.9690 |
| Series | AccuPort 432 |
| UNSPSC Code | 23241603 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 76038868 |
