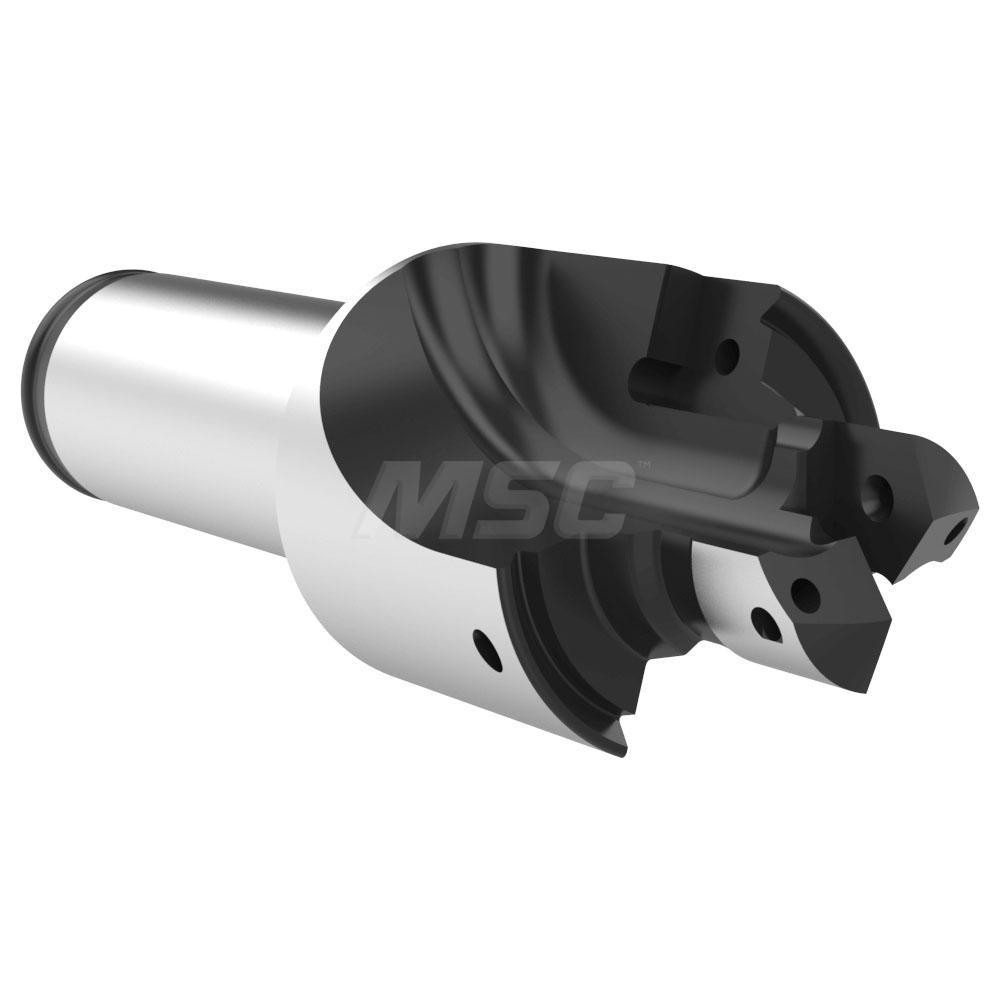

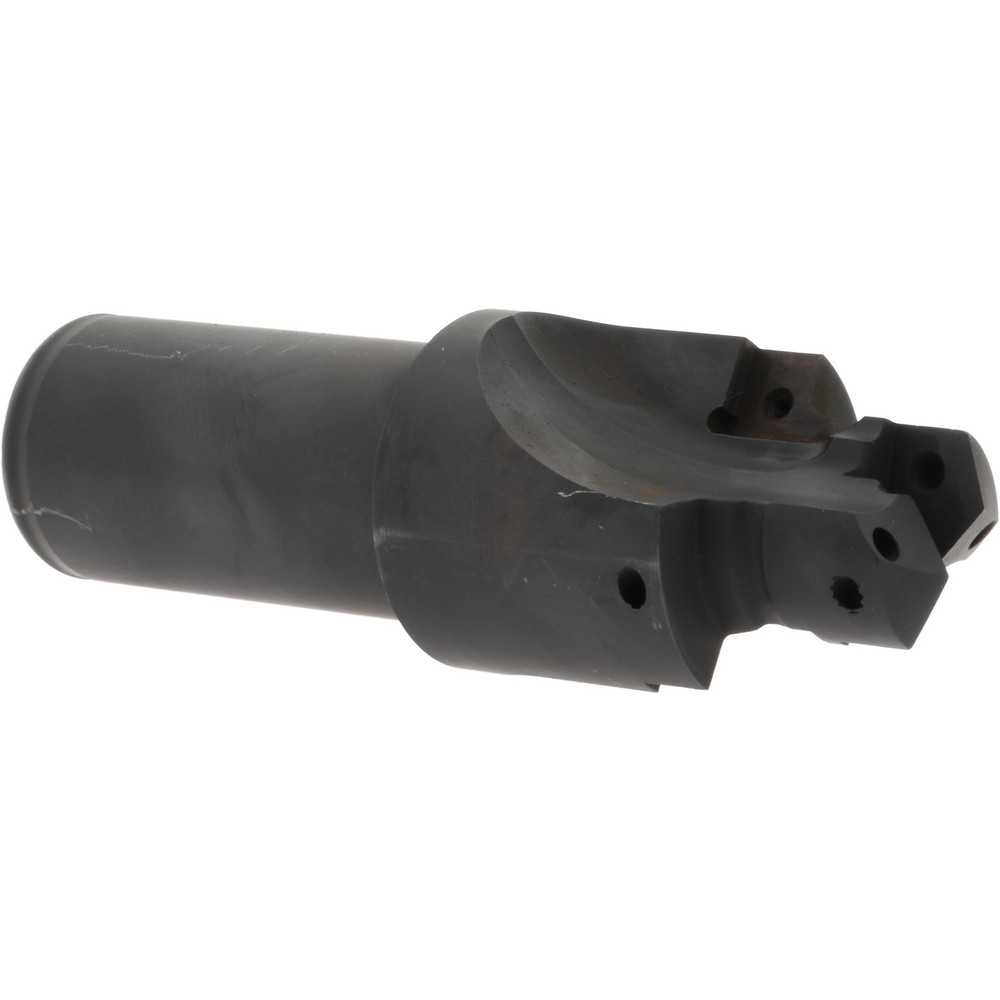

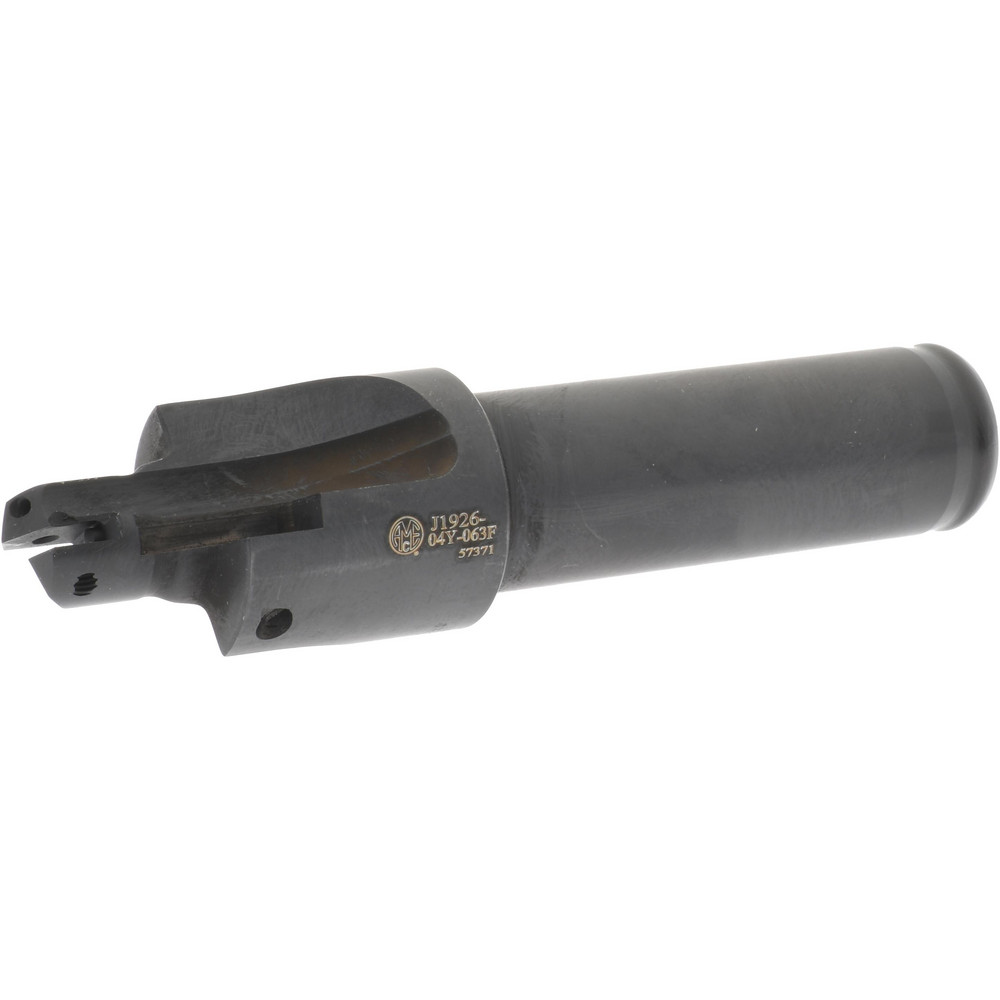

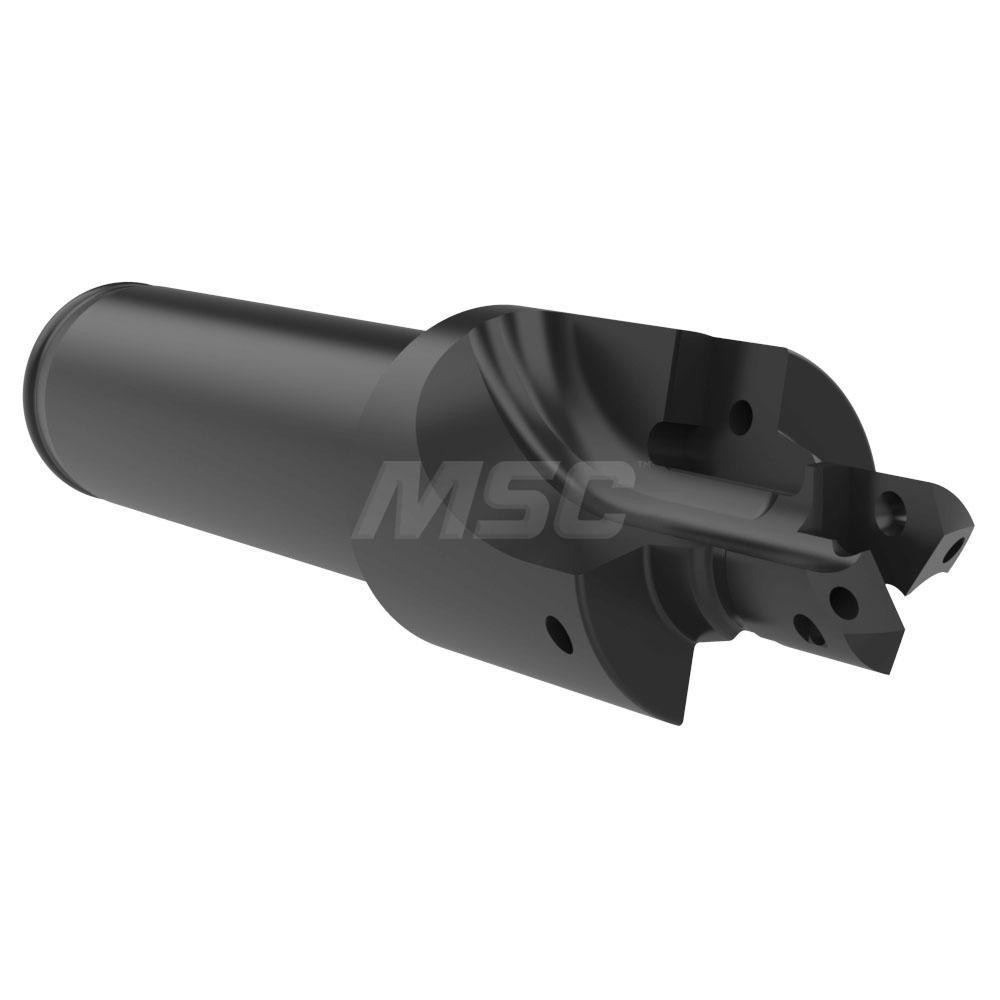

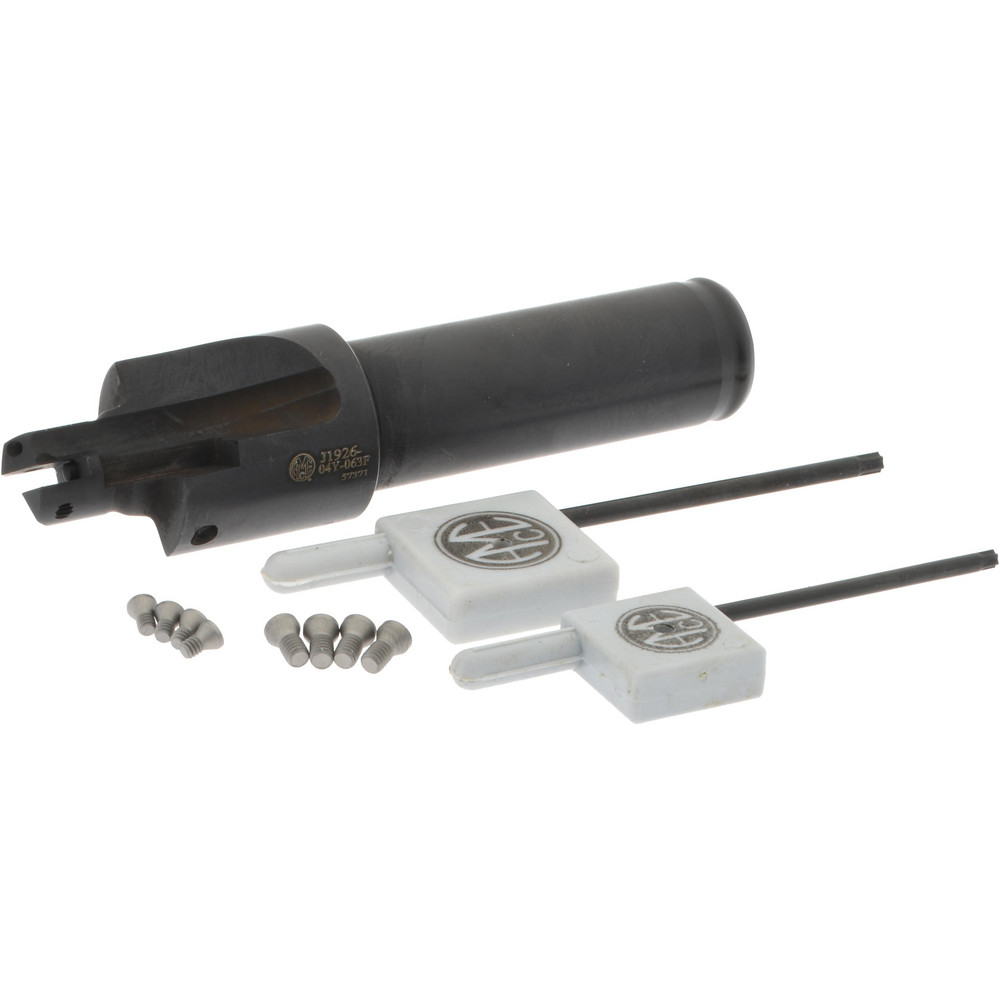

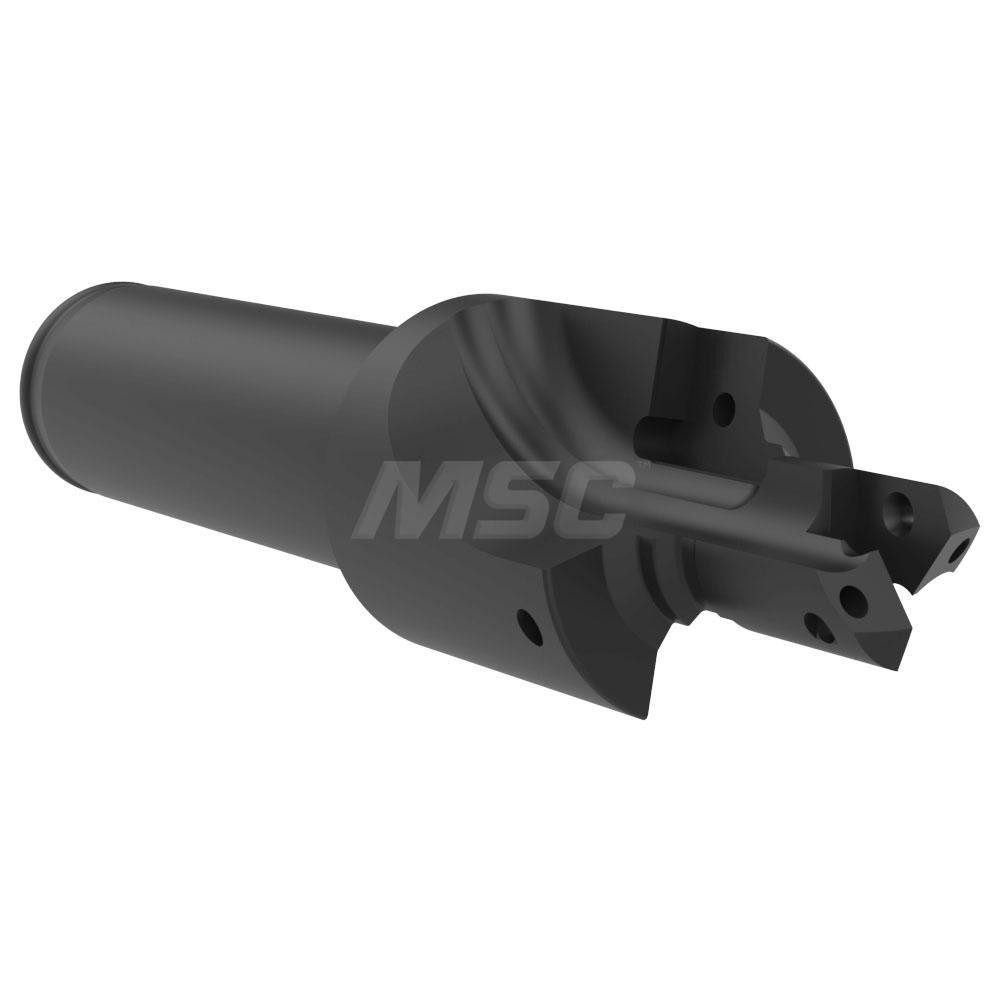

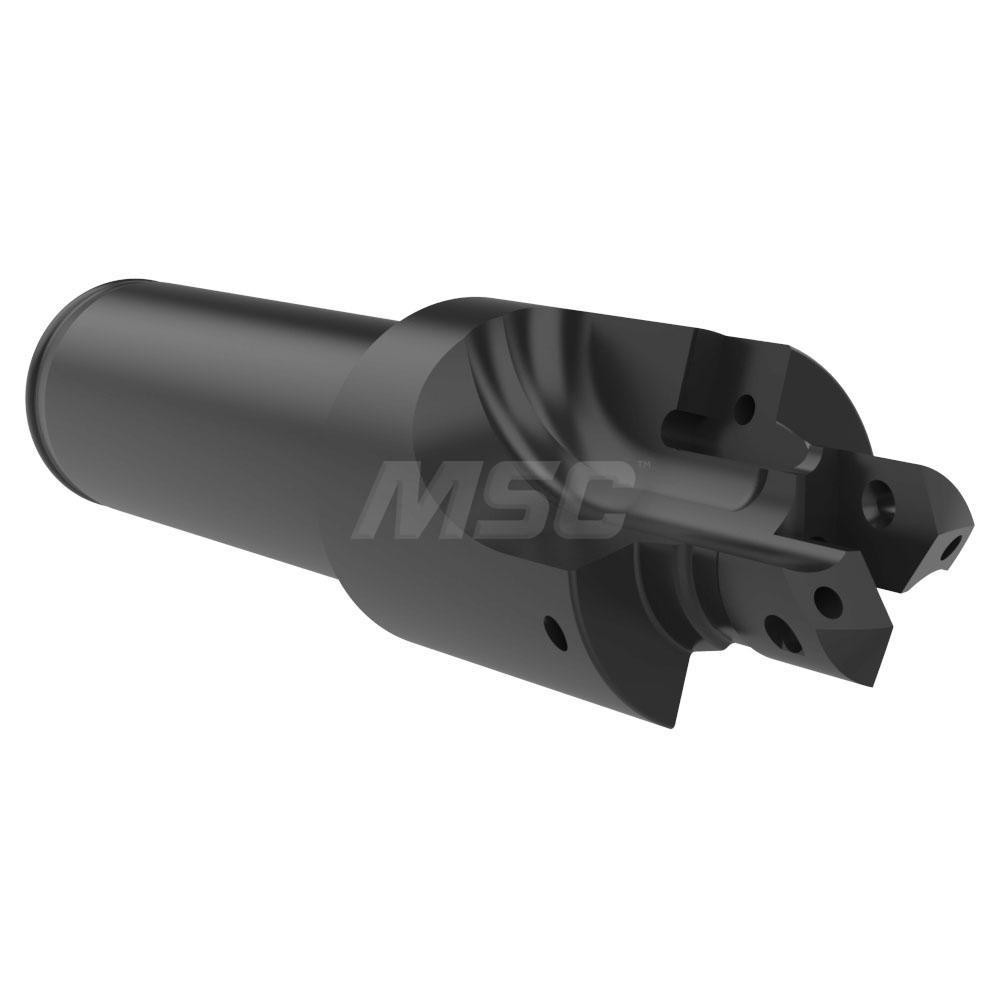

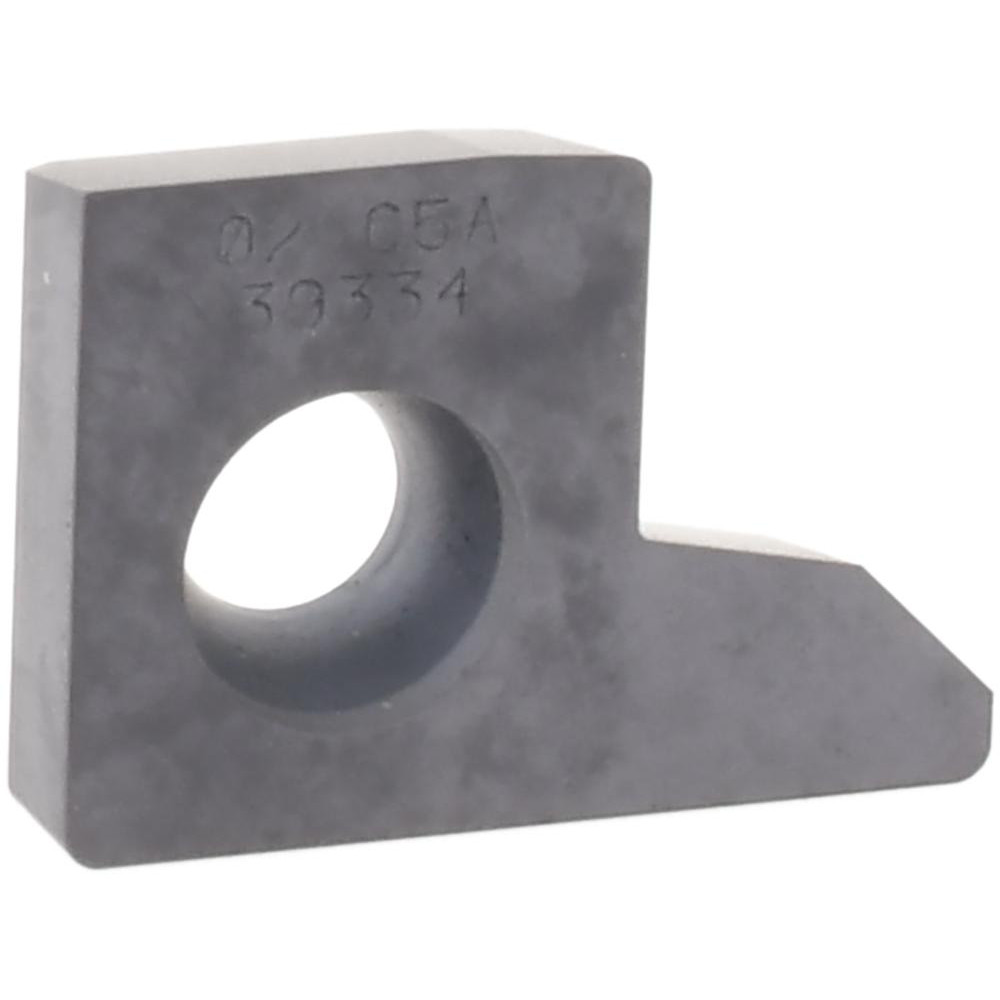

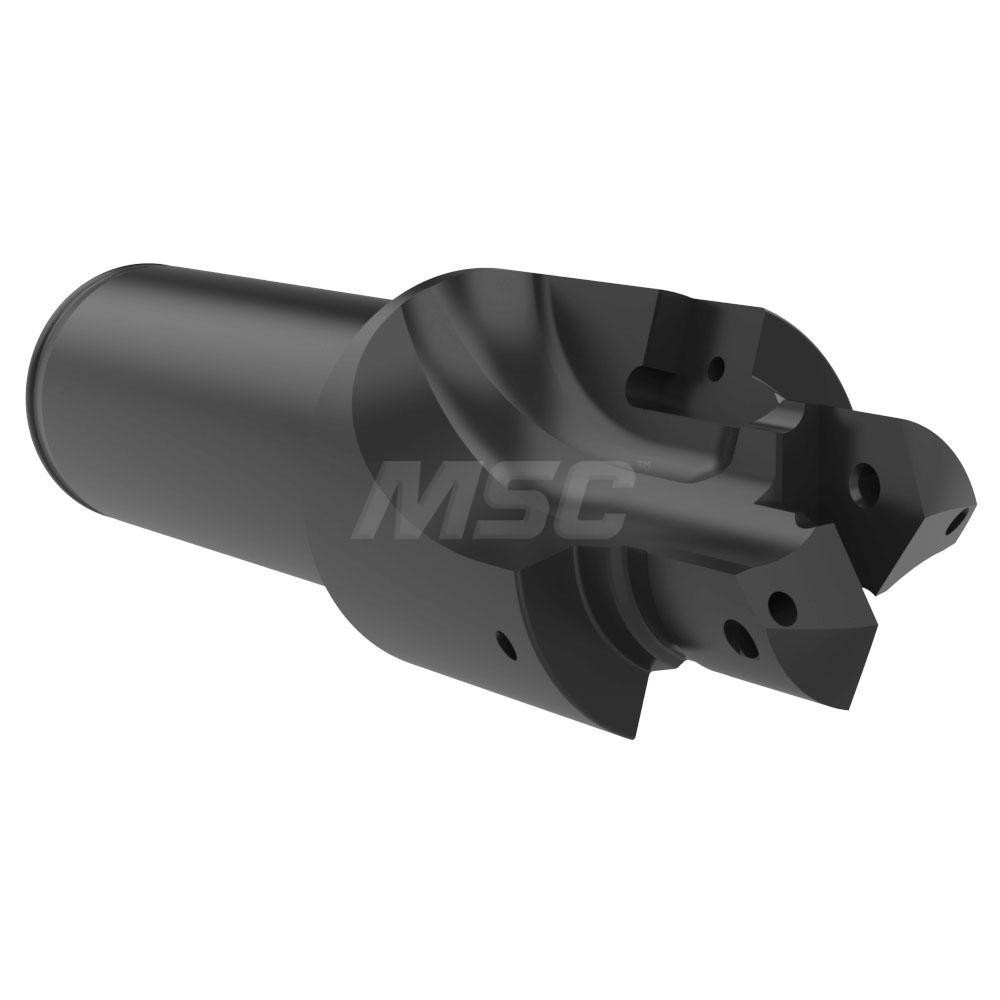

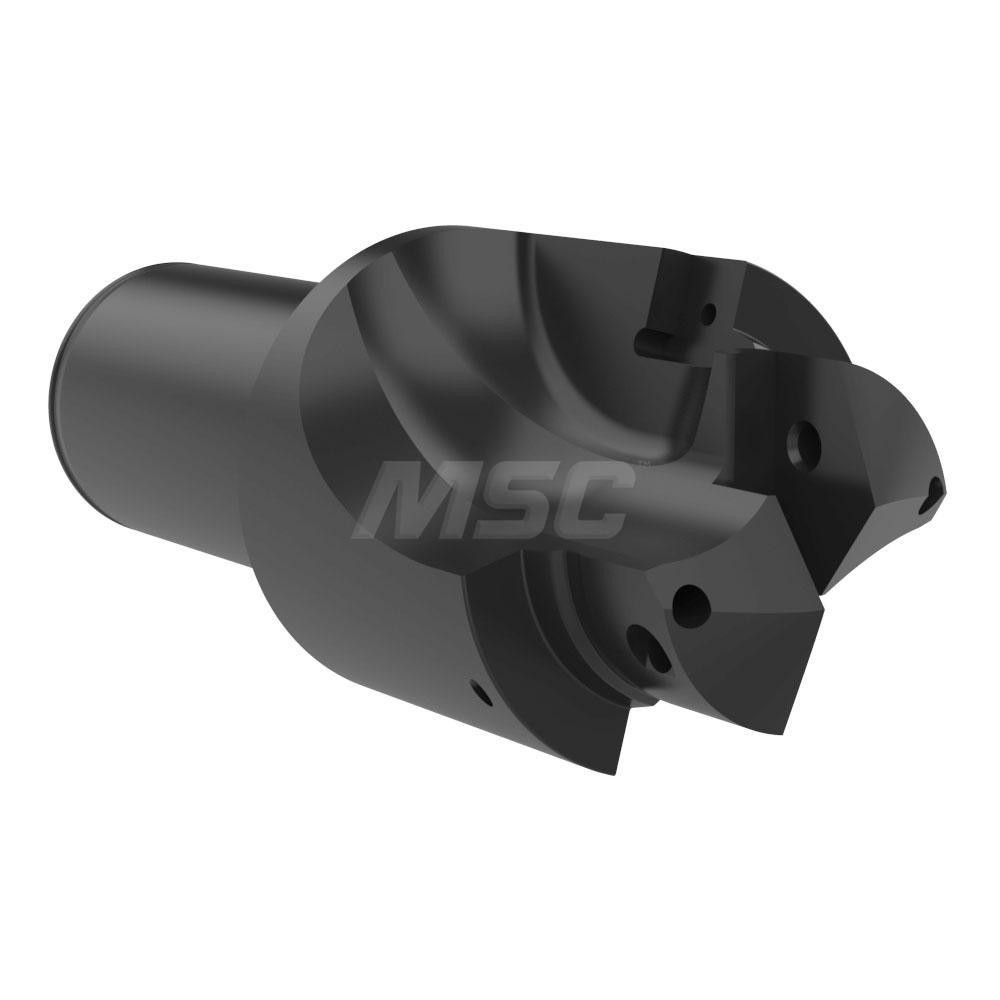

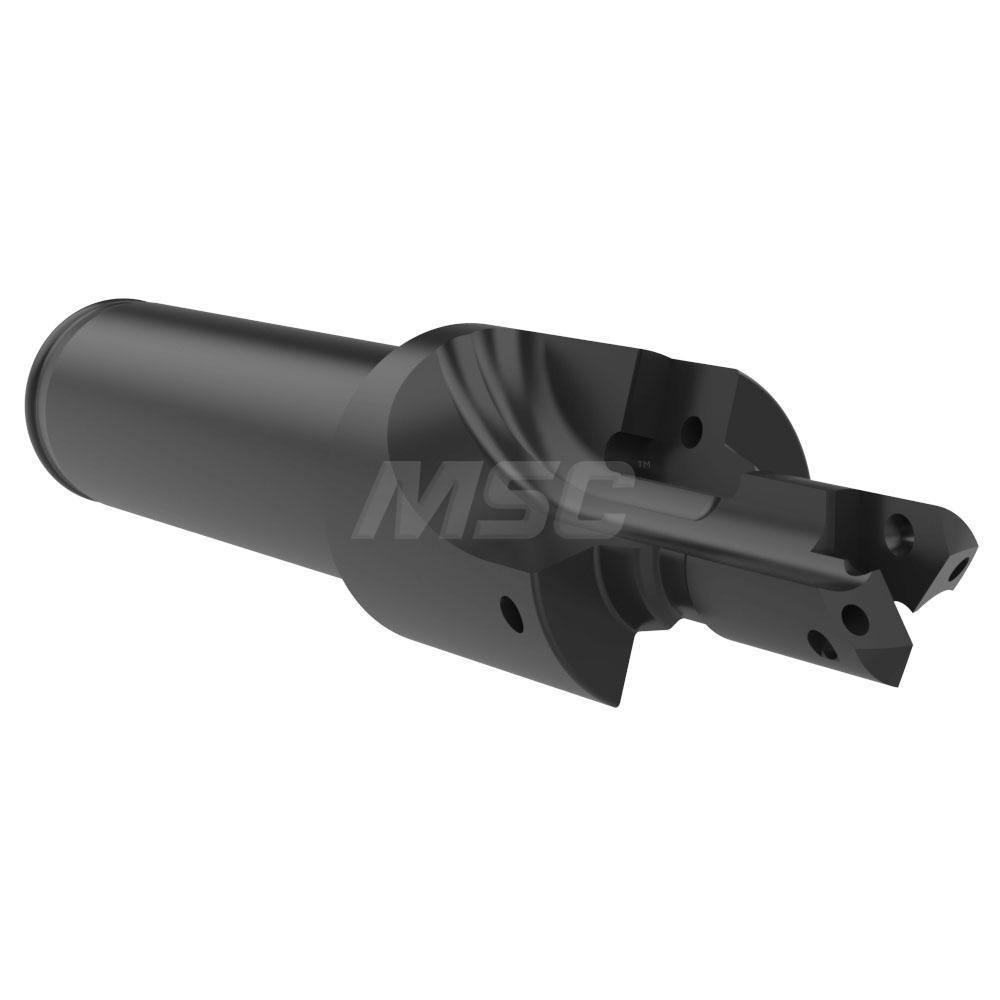

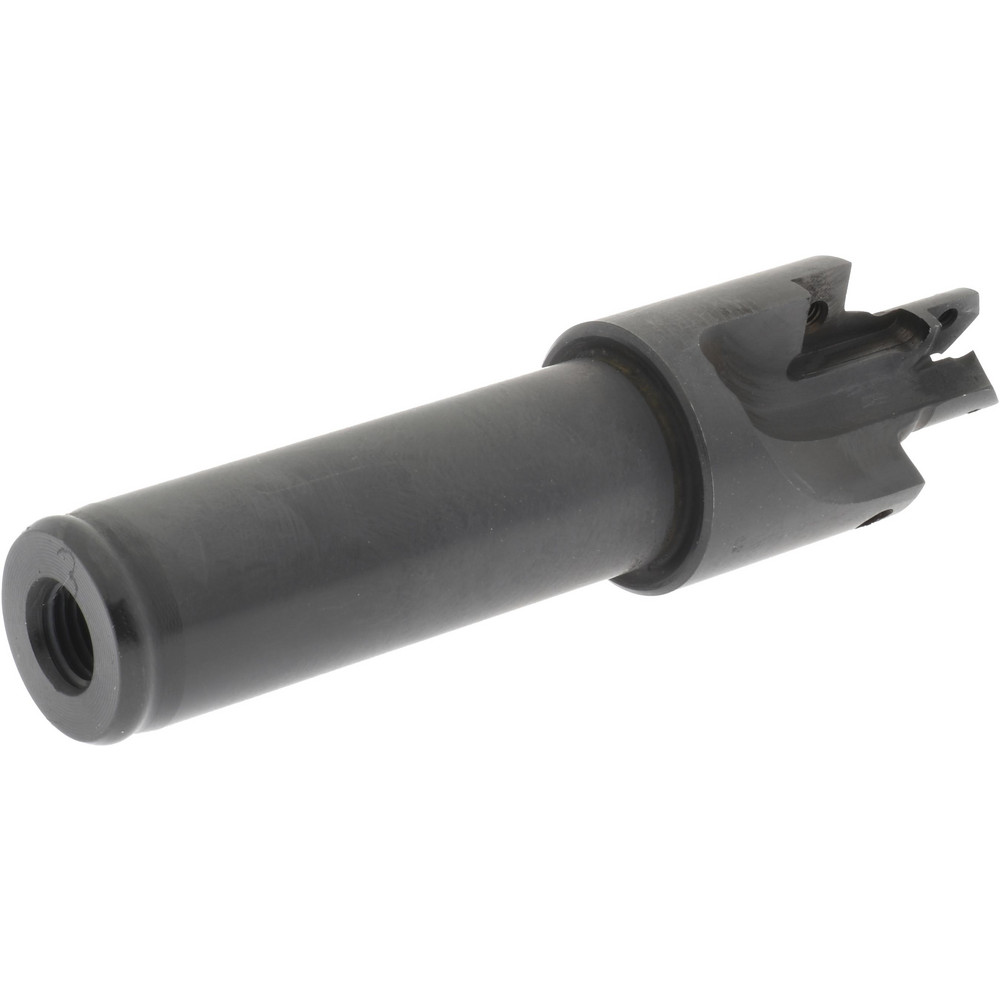

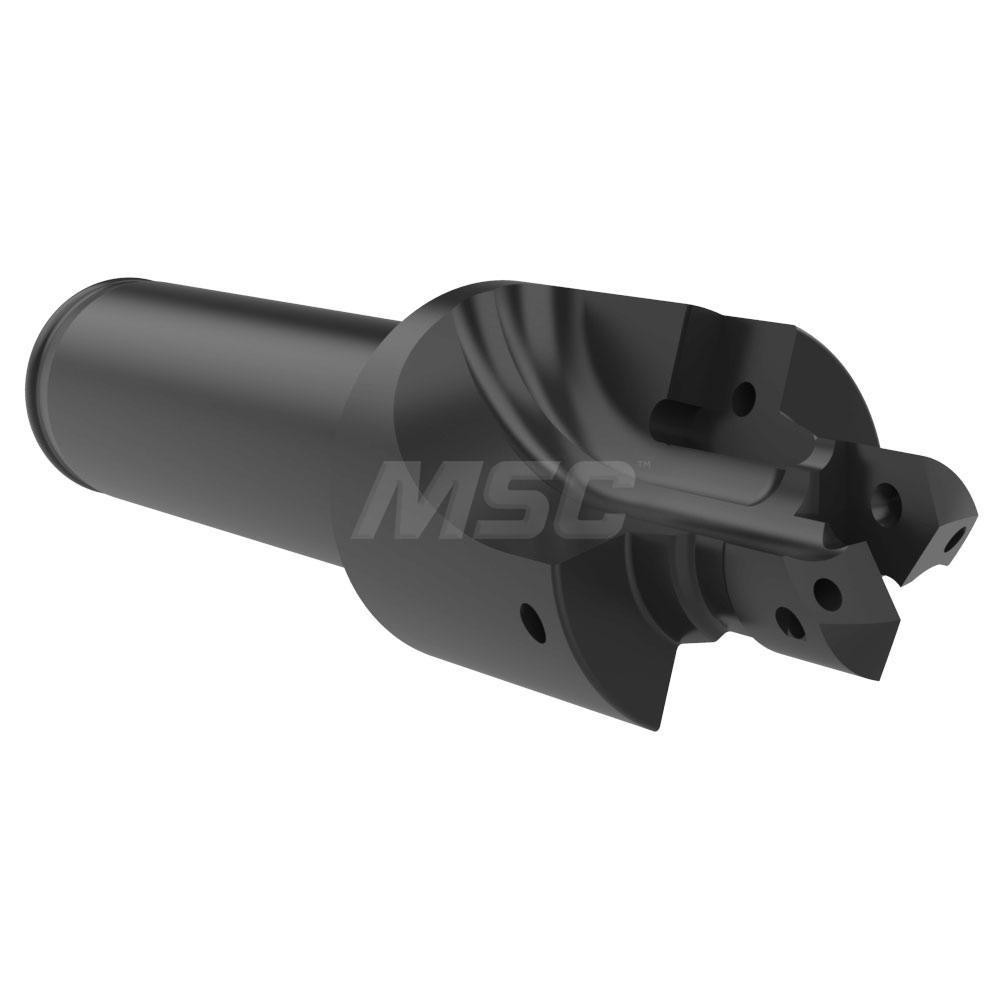

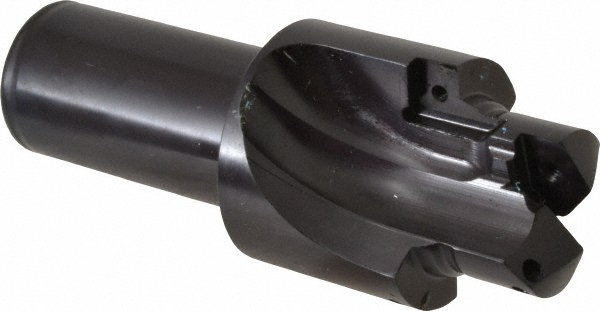

Takes 2 Inserts, J1926-02-C3H, J1926-02-C5A Insert Compatibility, IS0 11926-1, SAE J1926-1/MS-16142
| Port Standard Designation | IS0 11926-1; SAE J1926-1/MS-16142 |
|---|---|
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 7/16-20 |
| Tube Dash Number | 4 |
| Pilot Diameter (Decimal Inch) | 0.3860 |
| Spotface Diameter (Decimal Inch) | 0.8410 |
| Shank Diameter (Inch) | 0.5625 |
| Compatible Insert Style | J1926 |
| Compatible Insert Size Code | 4C1YH-.386; 45YH-.386 |
| Number of Porting Inserts | 2 |
| Coated | Coated |
| Porting Diameter (Decimal Inch) | 0.4900 |
| Overall Length (Decimal Inch) | 3.4020 |
| Seal Angle Length | 0.106 in |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; H; K; N |
| Through Coolant | No; Yes |
| Porting Angle | 12 |
| Porting Angle Length (Decimal Inch) | 0.1060 |
| Head Length (Decimal Inch) | 1.5270 |
| Shank Length (Decimal Inch) | 1.8750 |
| Series | AccuPort 432 |
| UNSPSC Code | 23241603 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 76038314 |
