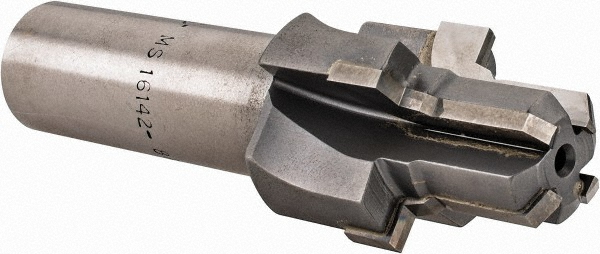

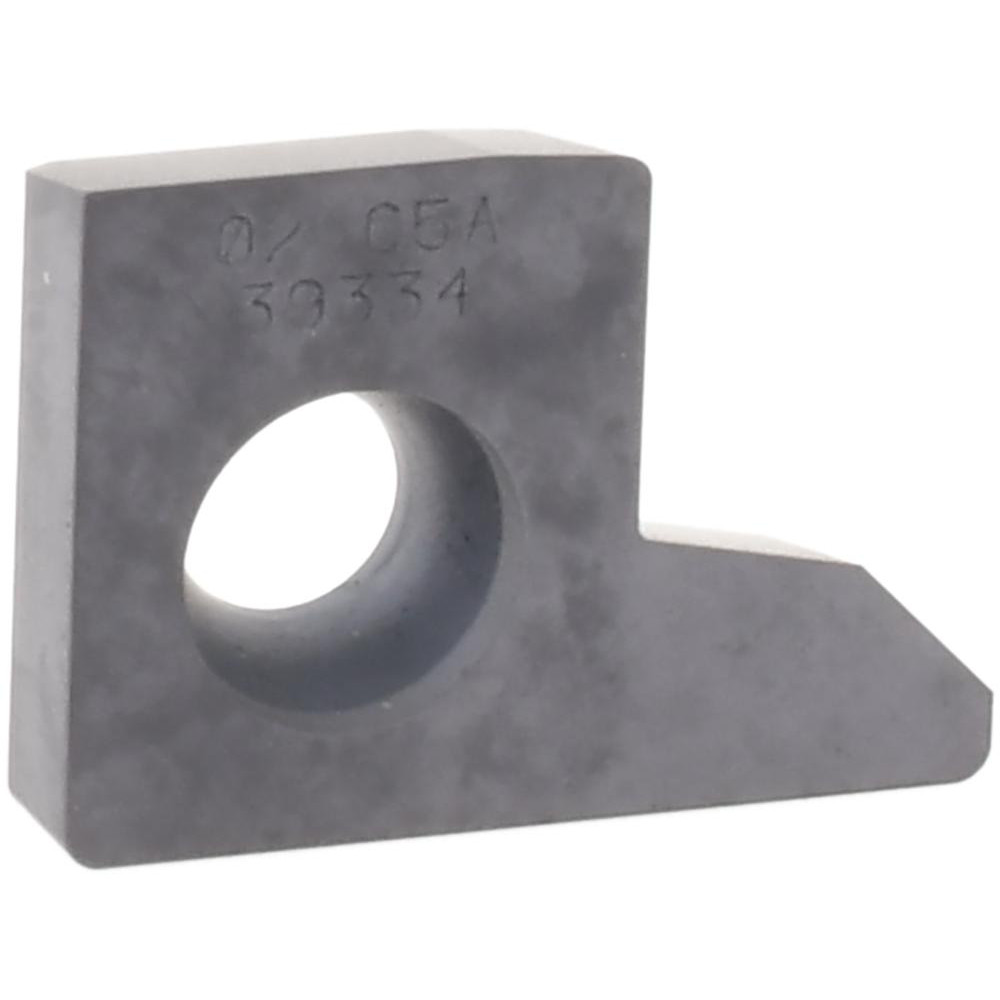

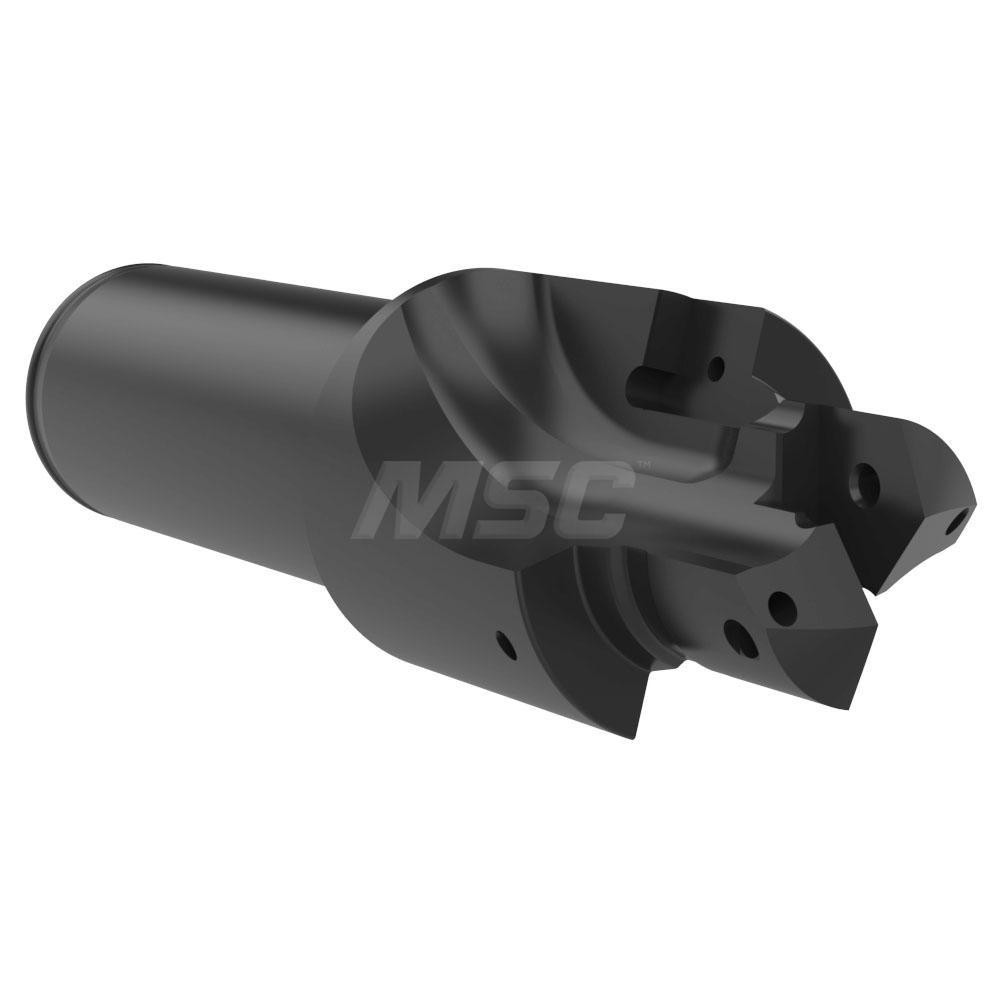

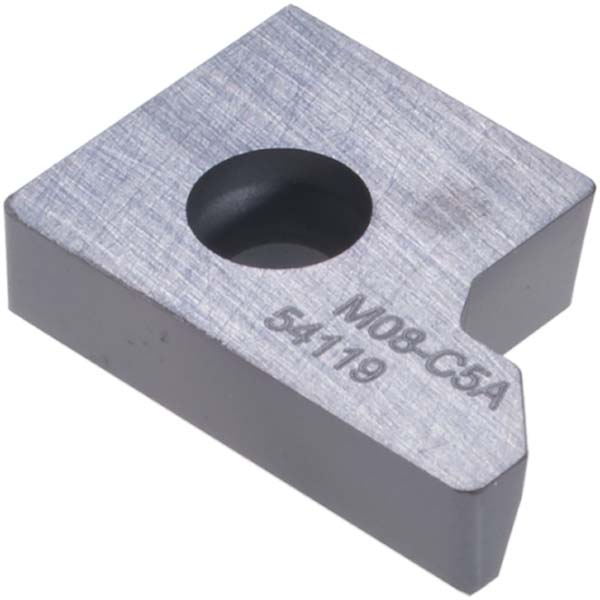

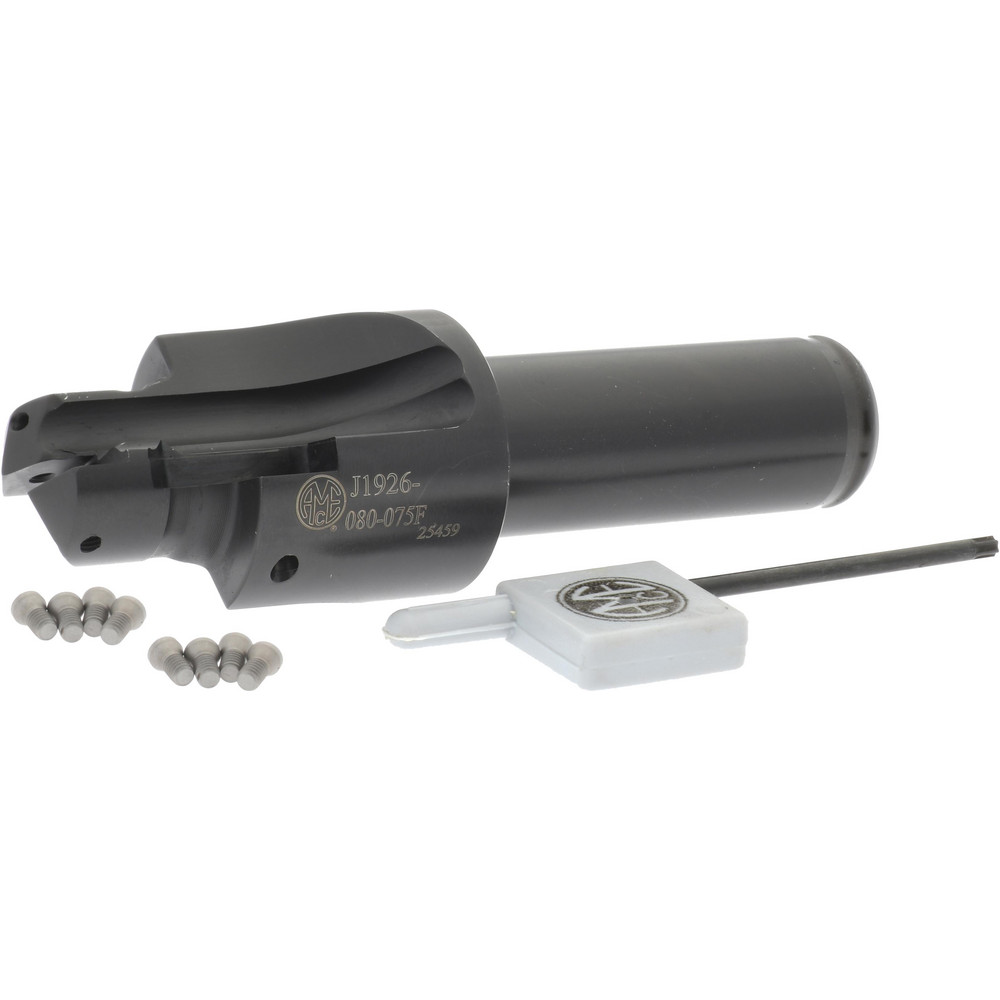

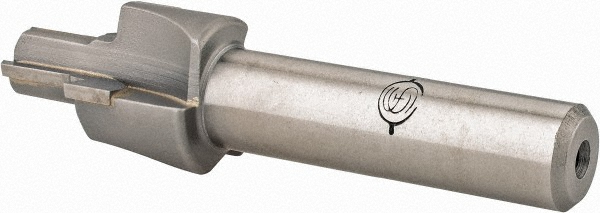

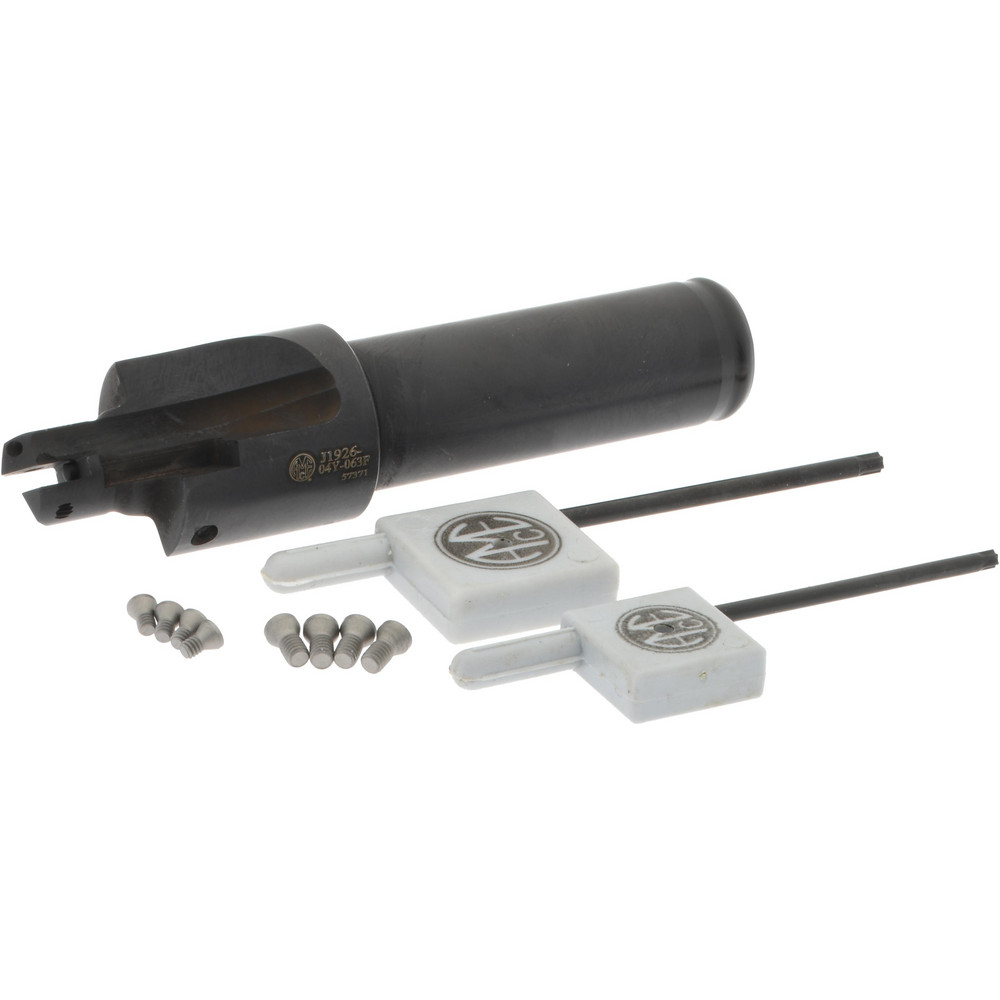

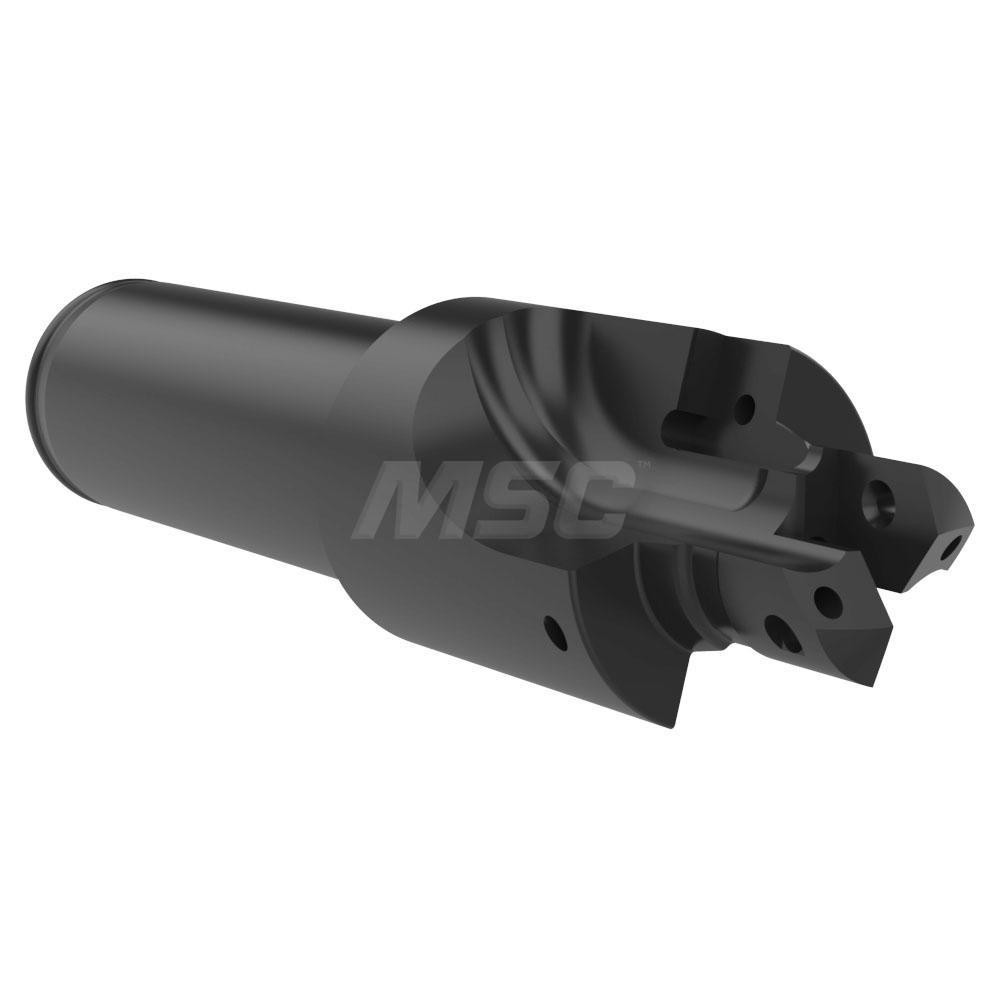

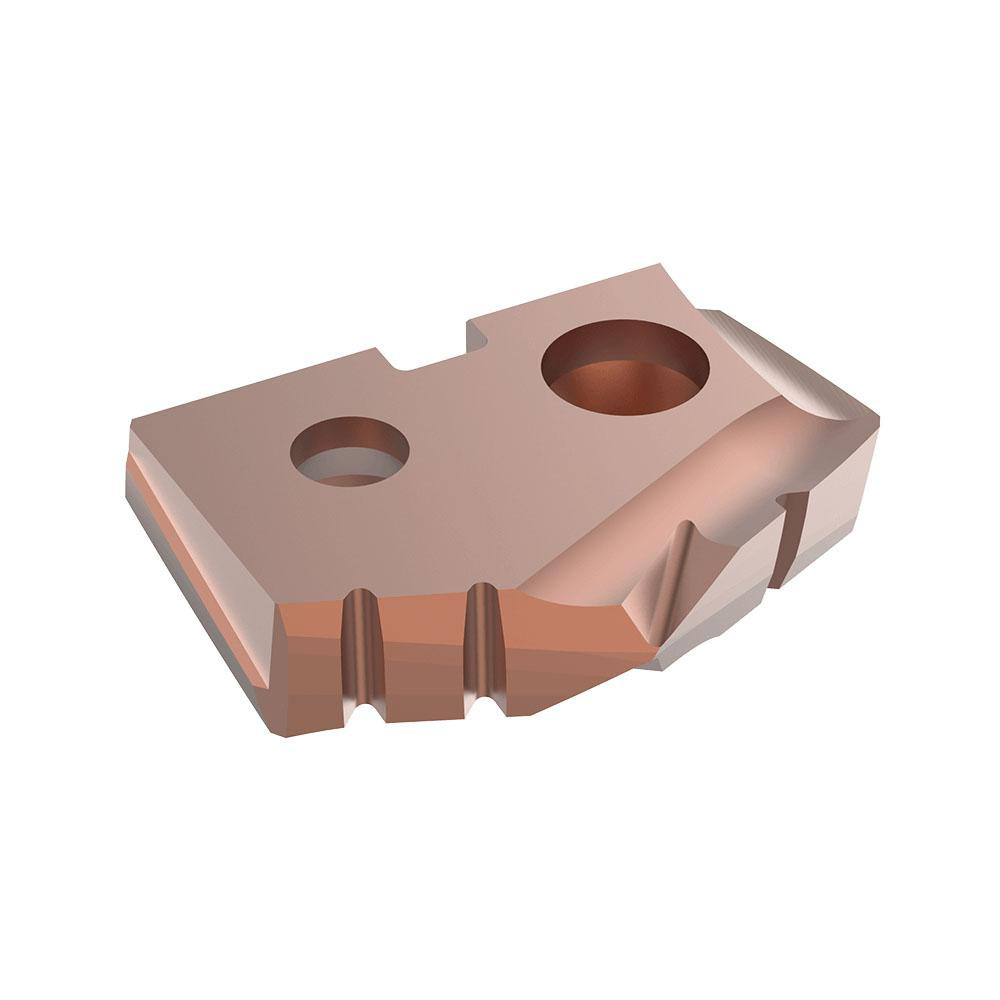

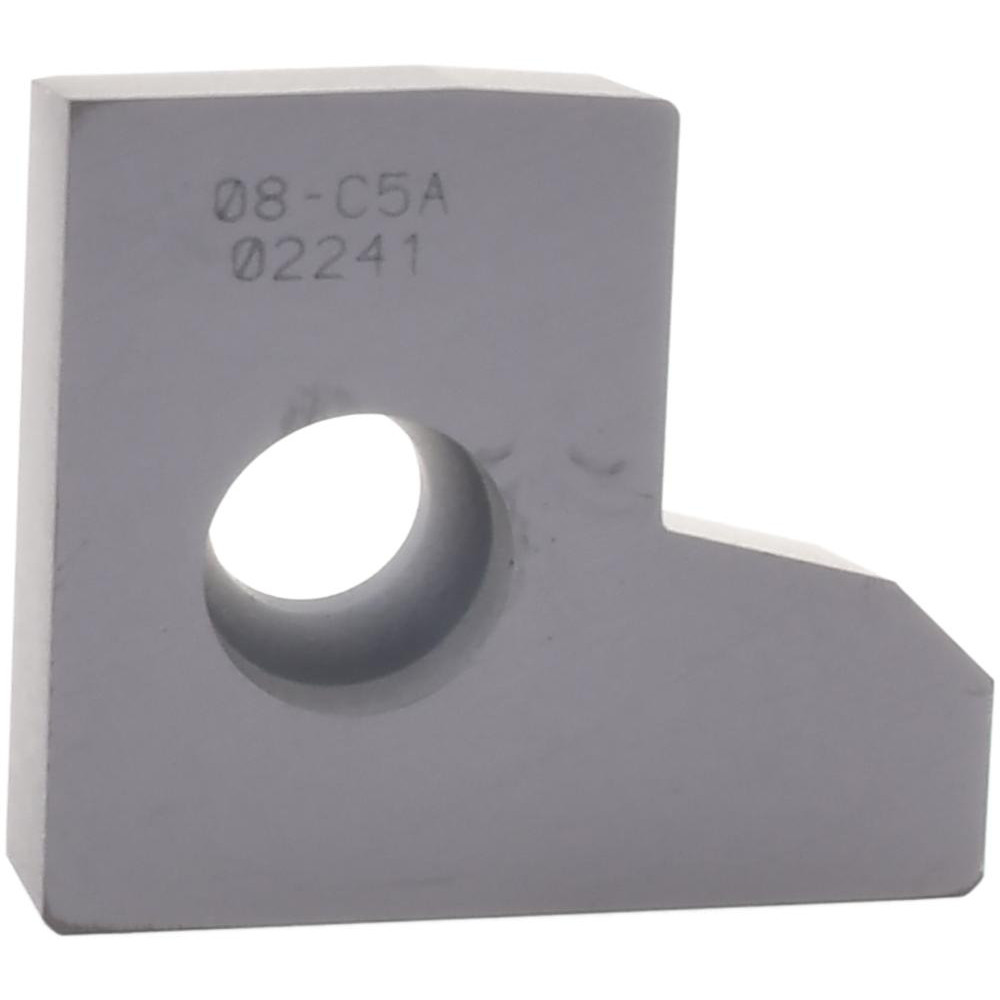

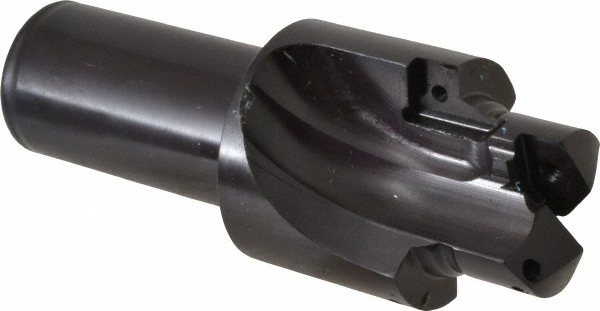

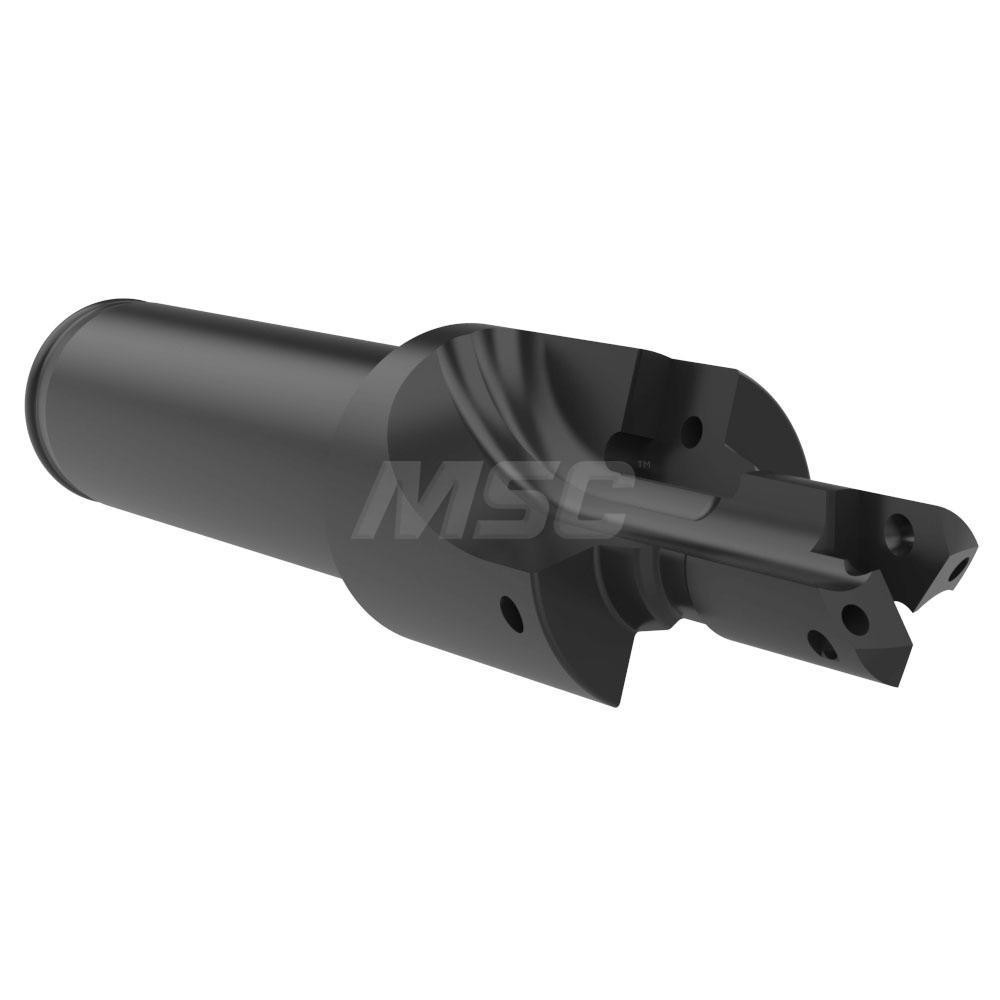

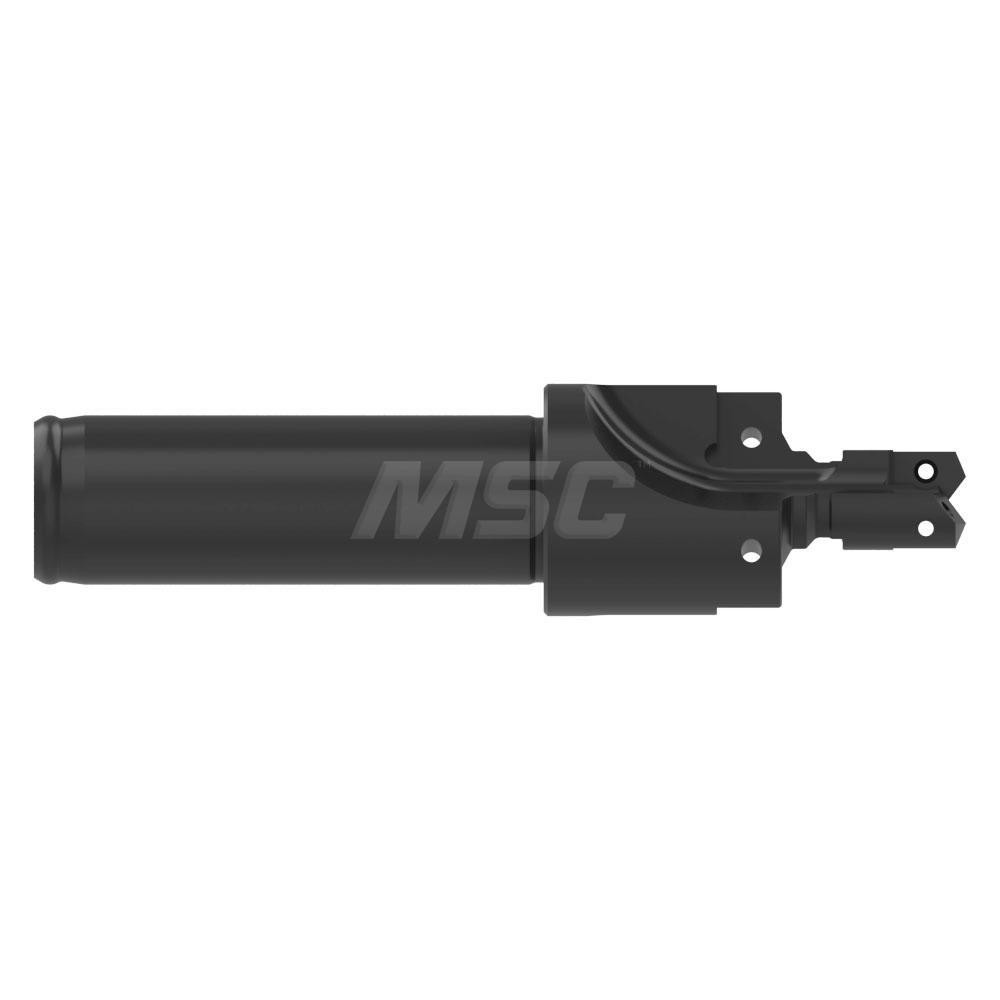

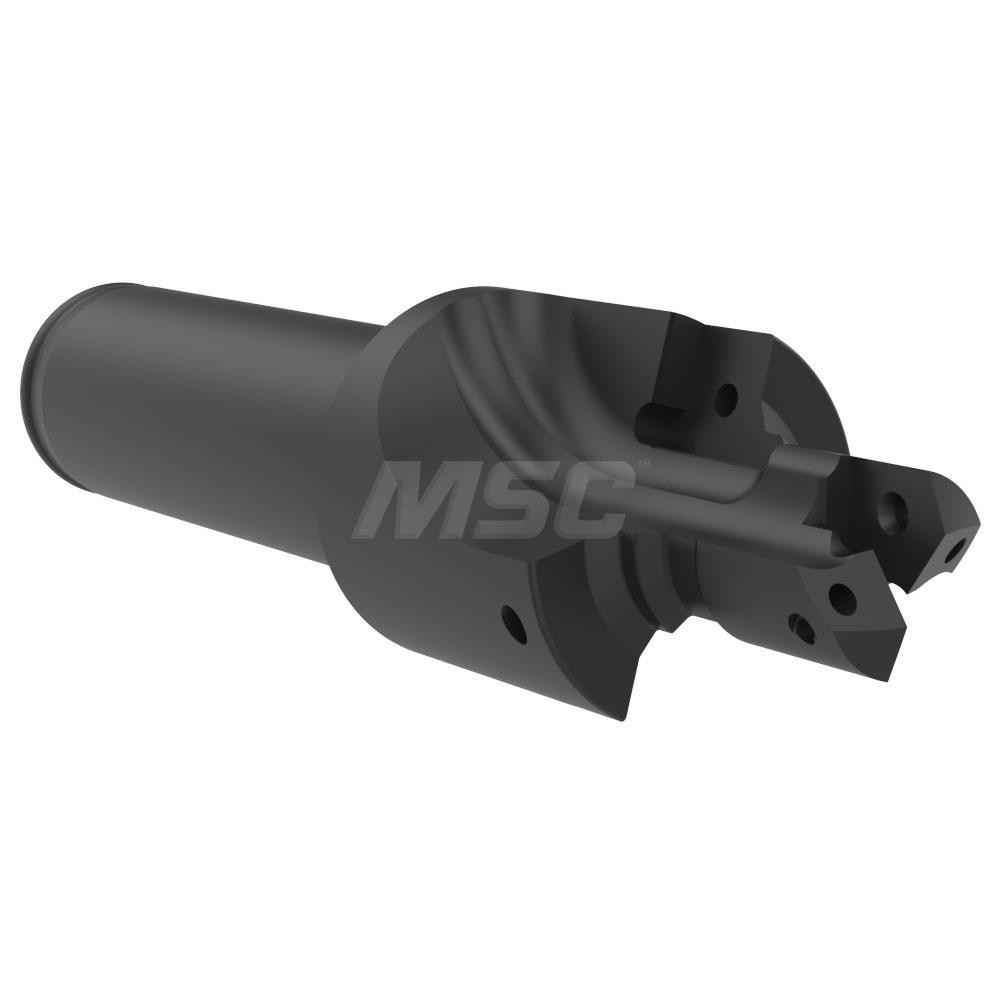

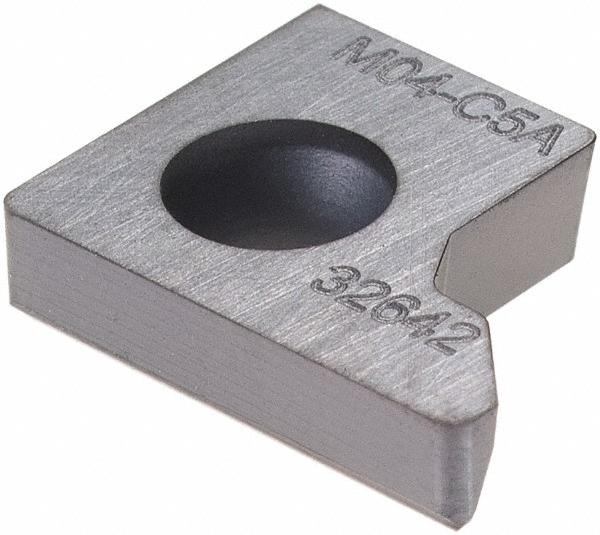

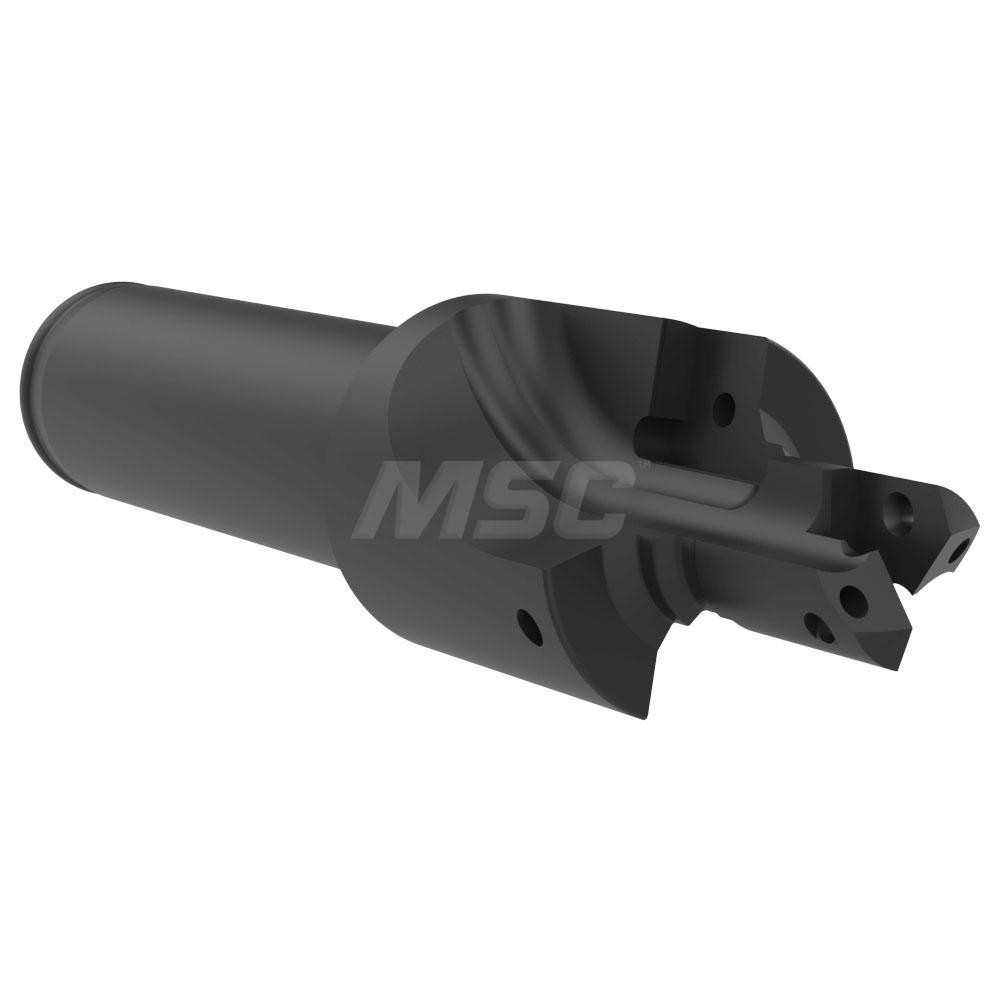

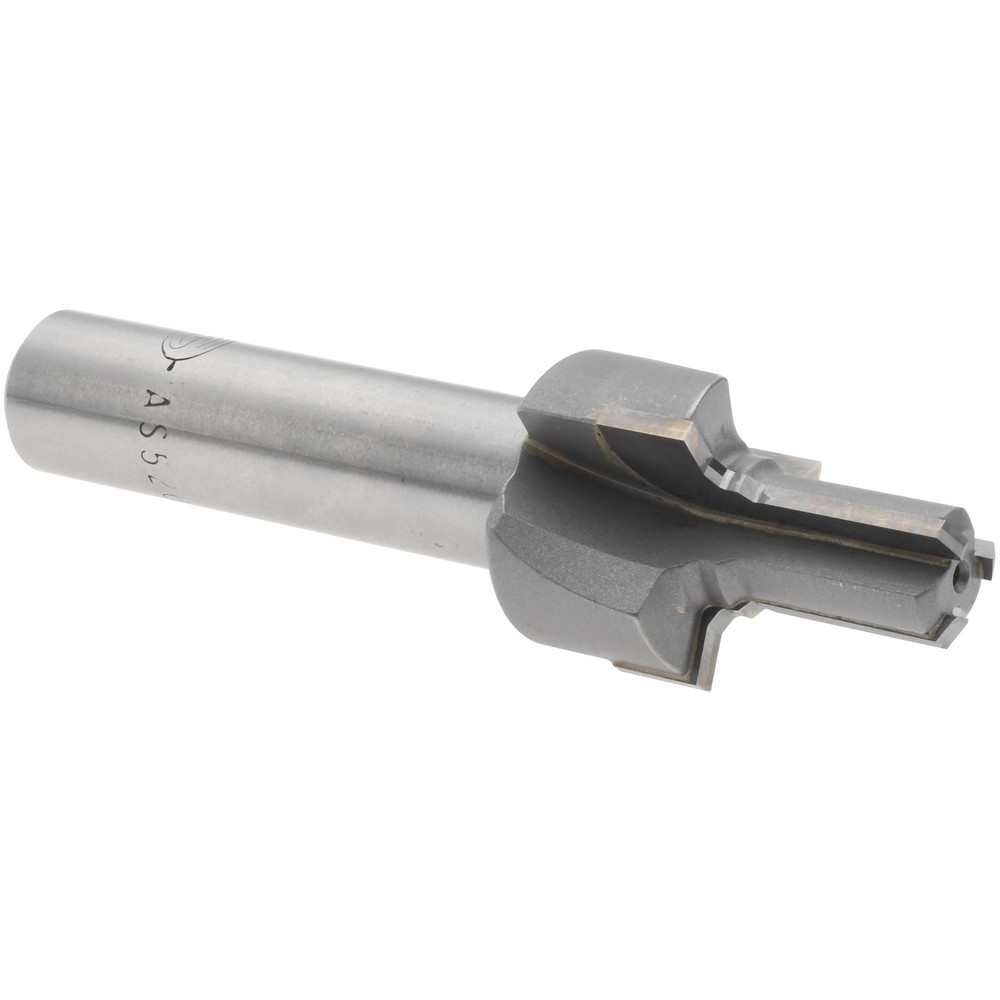

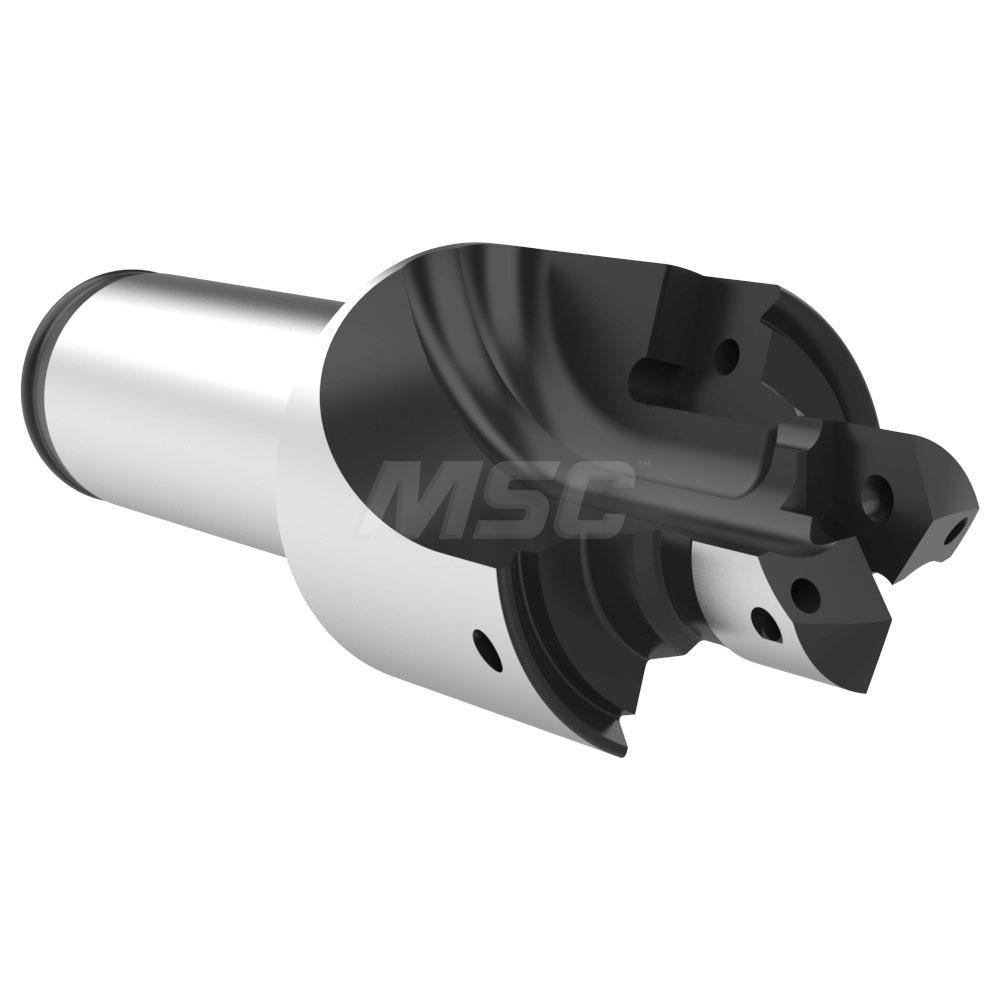

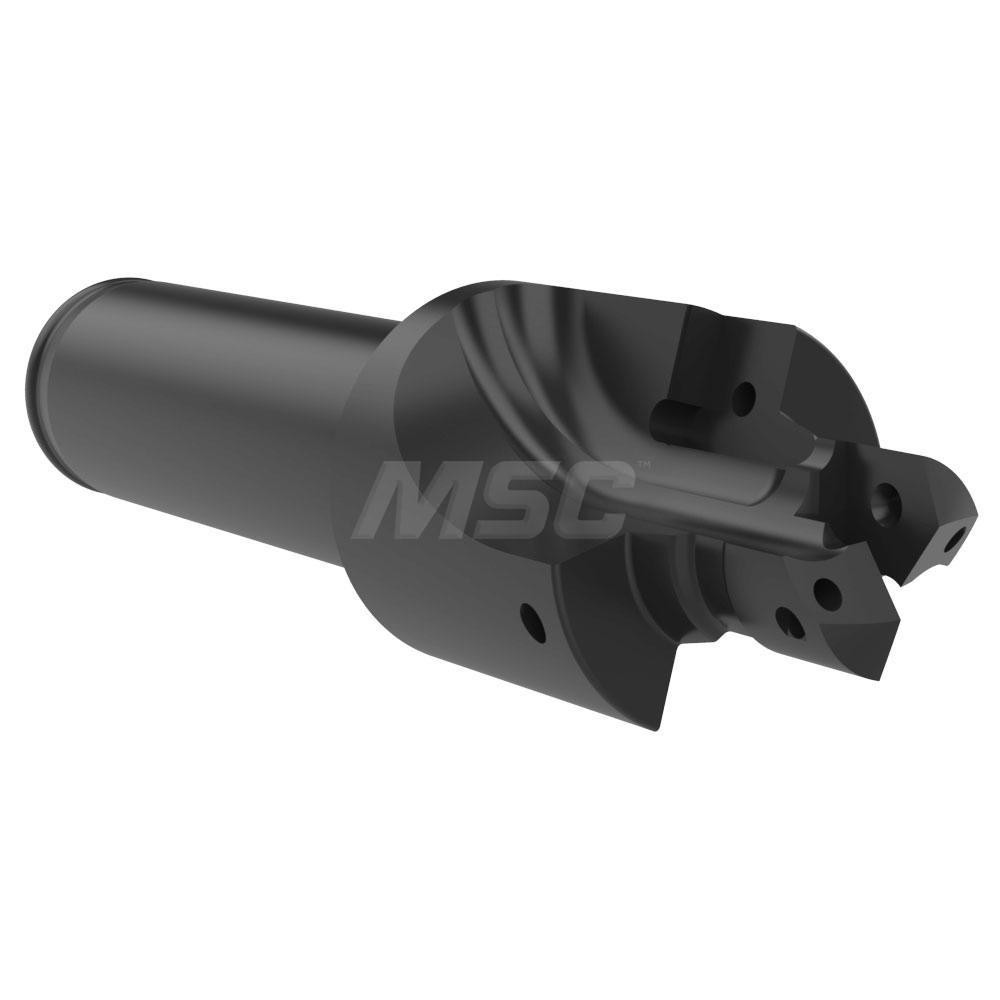

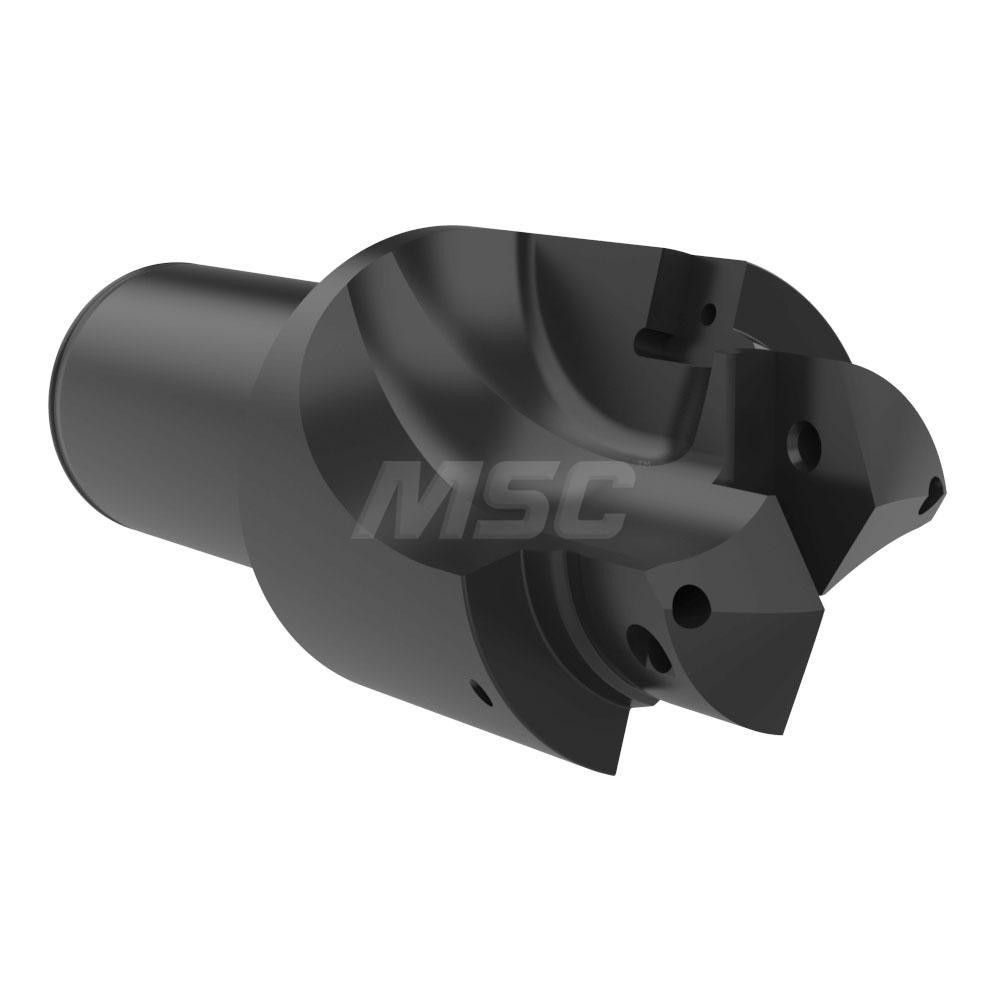

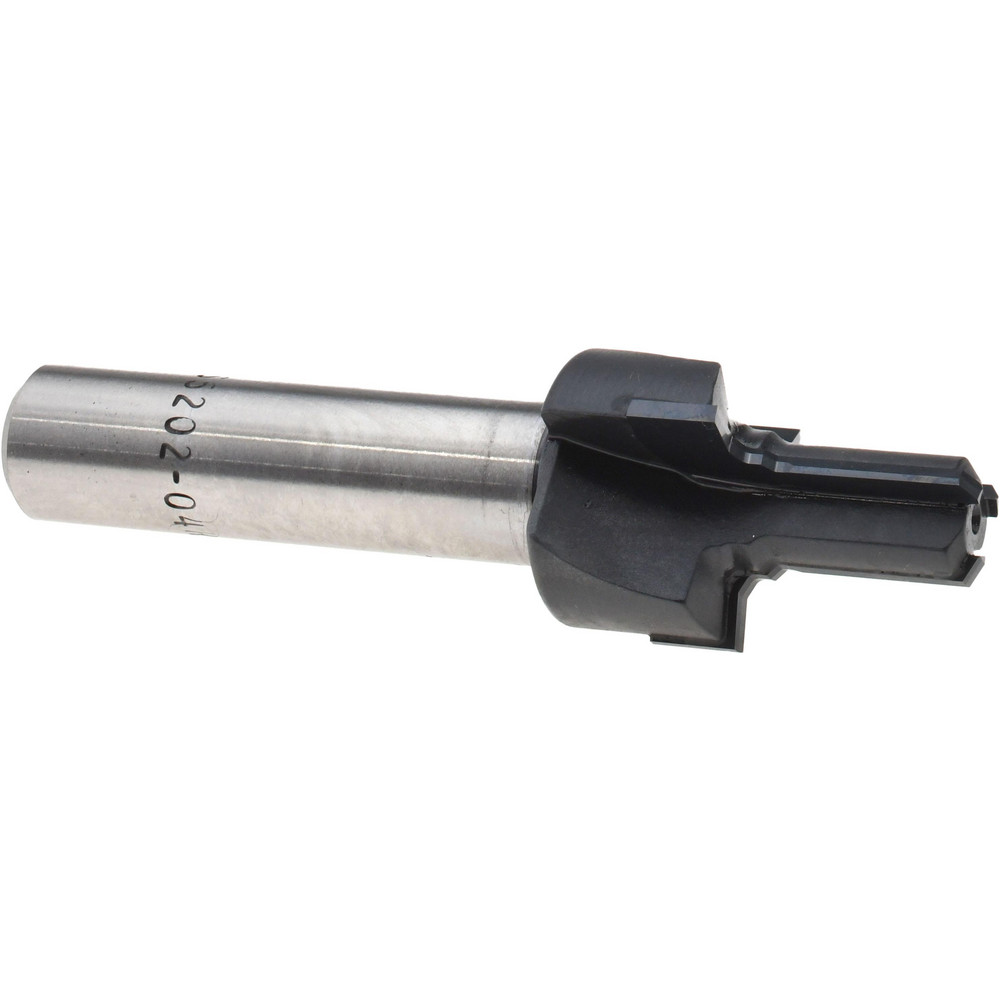

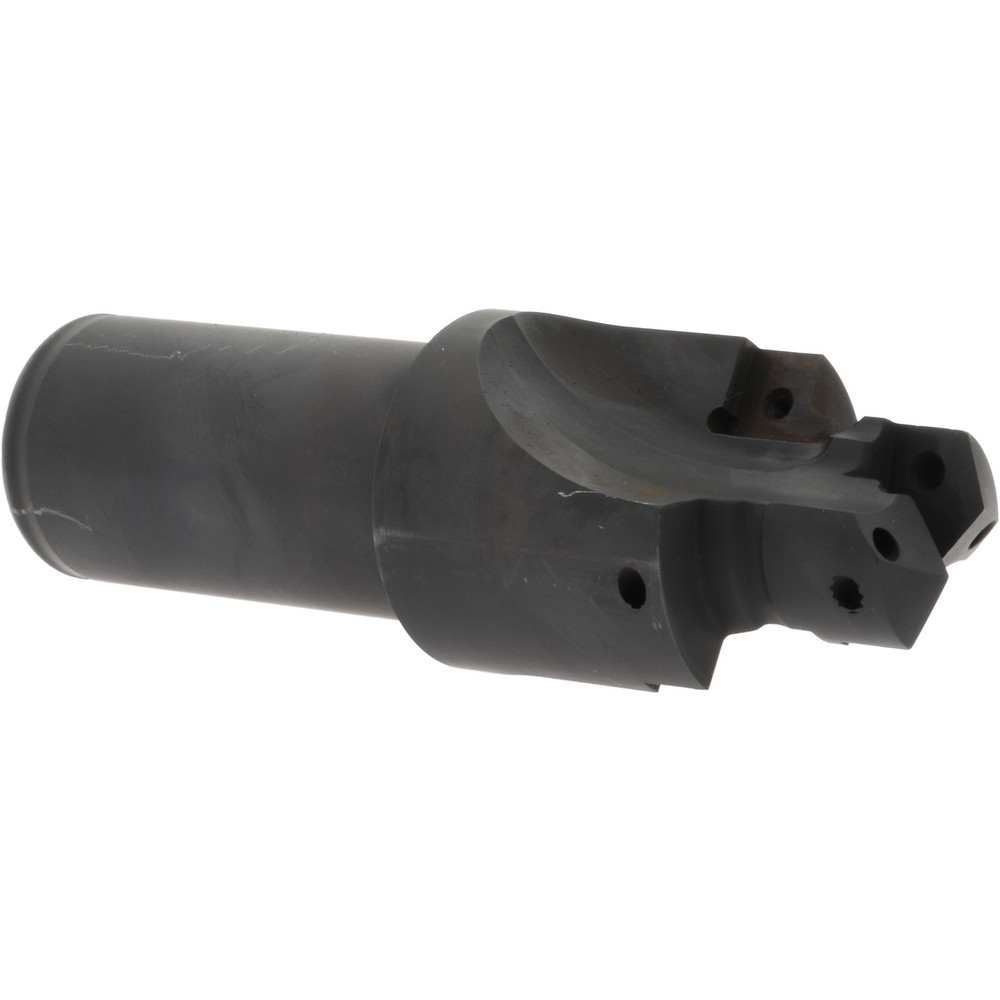

Takes 2 Inserts, AS5202-04-C5A Insert Compatibility, AND10050, MS 33649, SAE AS5202
| Port Standard Designation | AND10050; MS 33649; SAE AS5202 |
|---|---|
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 7/16-20 |
| Tube Dash Number | 4 |
| Pilot Diameter (Decimal Inch) | 0.4540 |
| Spotface Diameter (Decimal Inch) | 0.8750 |
| Shank Diameter (Inch) | 0.6250 |
| Compatible Insert Style | J1926 |
| Compatible Insert Size Code | 45YH-.390; 4C1YH-.390 |
| Number of Porting Inserts | 2 |
| Coated | Coated |
| Porting Diameter (Decimal Inch) | 0.5640 |
| Overall Length (Decimal Inch) | 3.5120 |
| Seal Angle Length | 0.083 in |
| Tool Application | Drilling |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; H; K; N |
| Through Coolant | No; Yes |
| Porting Angle | 60 |
| Head Length (Decimal Inch) | 1.6370 |
| Shank Length (Decimal Inch) | 1.8750 |
| Series | AccuPort 432 |
| UNSPSC Code | 23241603 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 60246345 |
