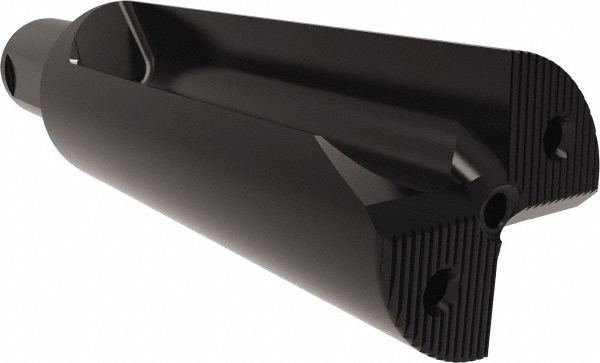

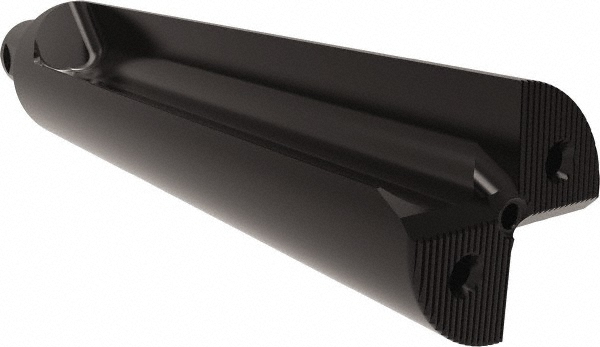

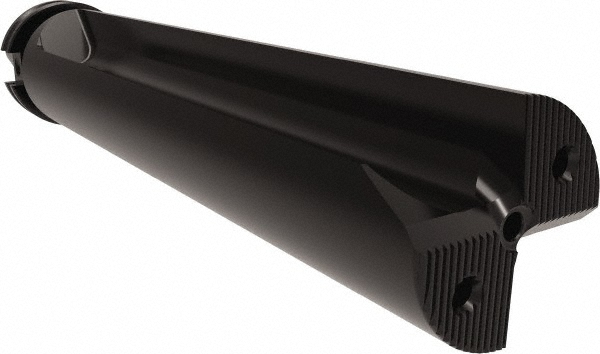

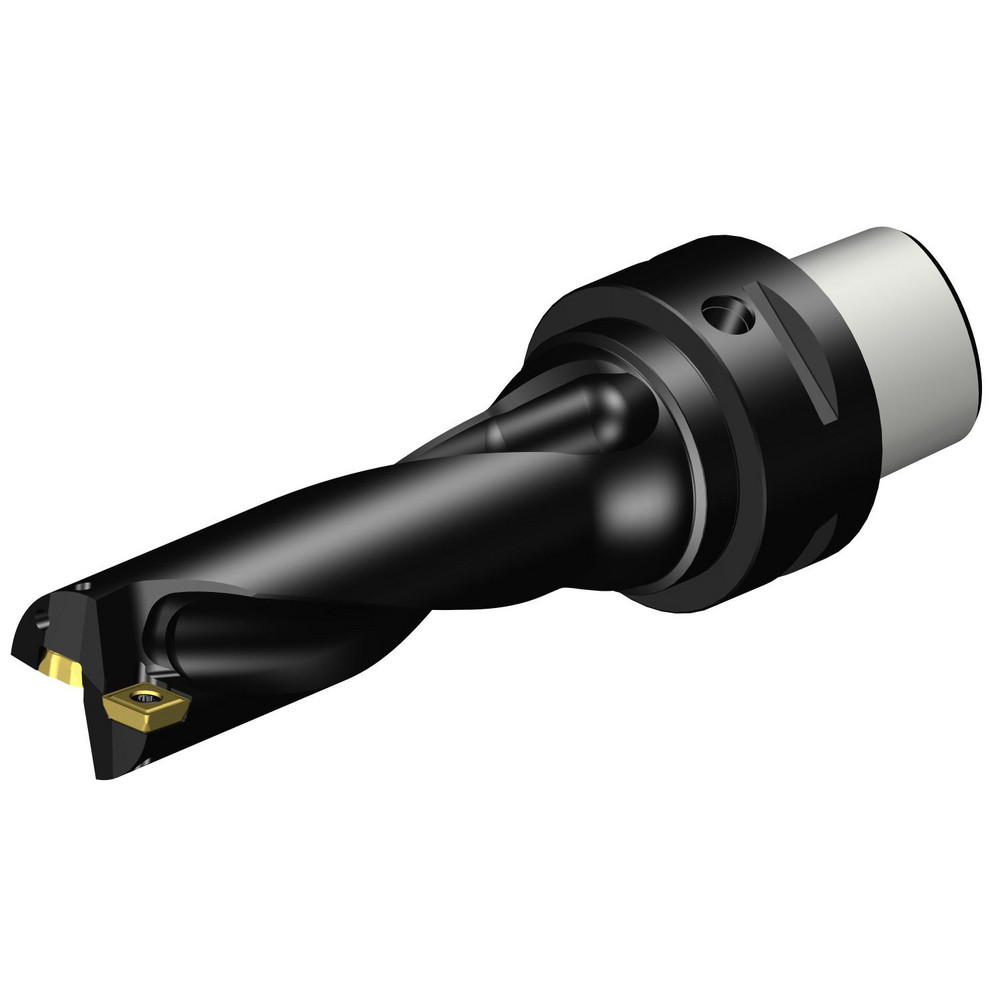

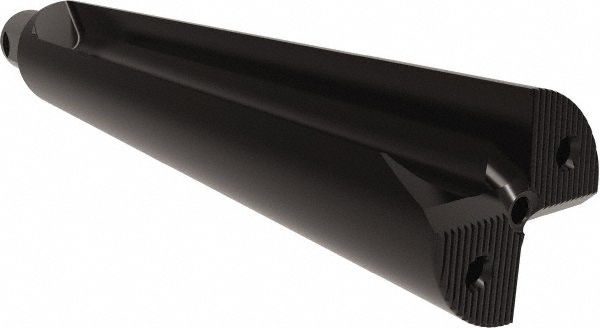

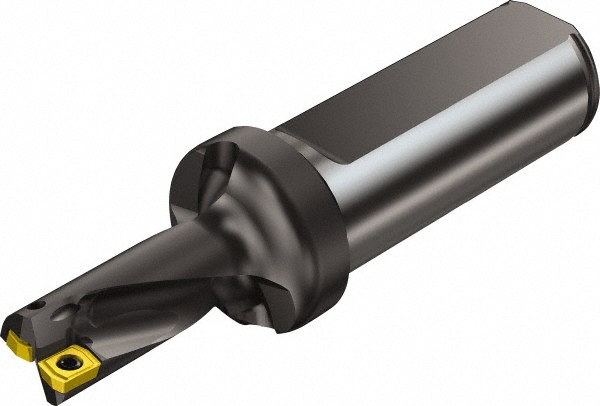

Weldon Flat & Flange Shank, Uses OP 05T308 Inserts, Series R42
| Compatible Drill Style | R |
|---|---|
| Maximum Drill Diameter (mm) | 66.00 |
| Maximum Drill Diameter (Decimal Inch) | 2.6000 |
| Maximum Drill Depth (Decimal Inch) | 5.7480 |
| Maximum Drill Depth (mm) | 144.90 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 4 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Maximum Drill Depth Range (mm) | 100.00 to 150.00 |
| Tool Material | Steel |
| Compatible Insert Style | OP |
| Compatible Insert Size Code | 05T308 |
| Drill Depth by Diameter Ratio | 2.2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | R42 |
| Flute Length (mm) | 144.90 |
| Body Length (mm) | 171.70 |
| Body Length (Decimal Inch) | 6.7520 |
| Shank Length (Decimal Inch) | 2.7559 |
| Shank Length (mm) | 70.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3125 |
| UNSPSC Code | 23291503 |

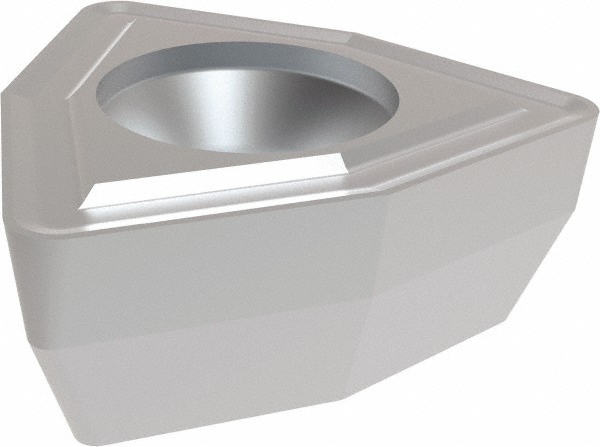

| Insert Compatibility | OP-05T308 |
| Collar Diameter (mm) | 61.00 |
| Insert Lock Screw | IS-10-1 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 89724454 |
