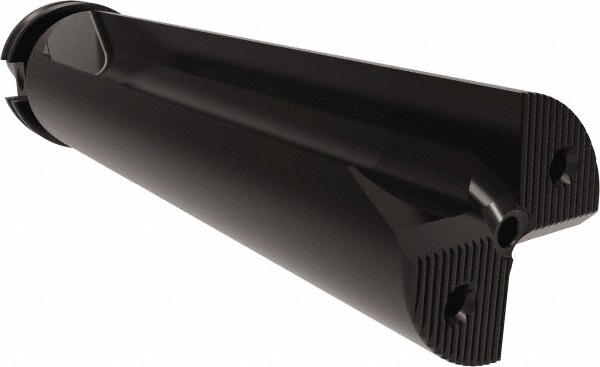

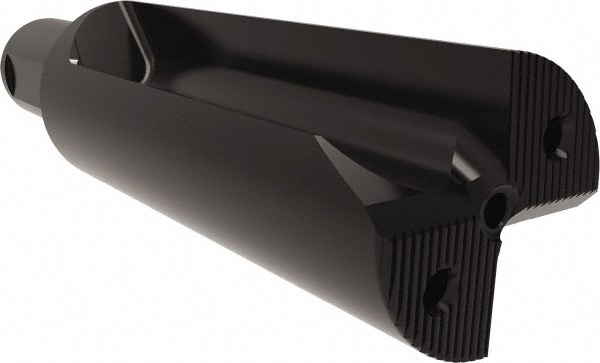

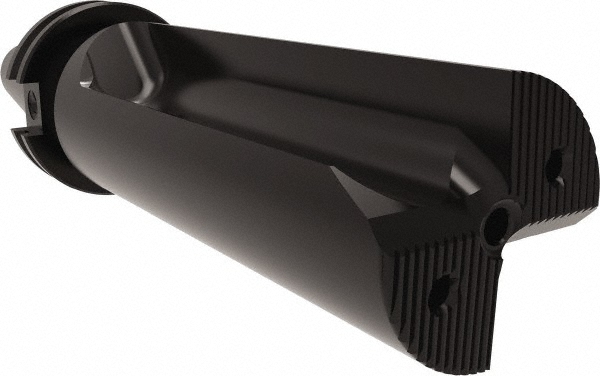

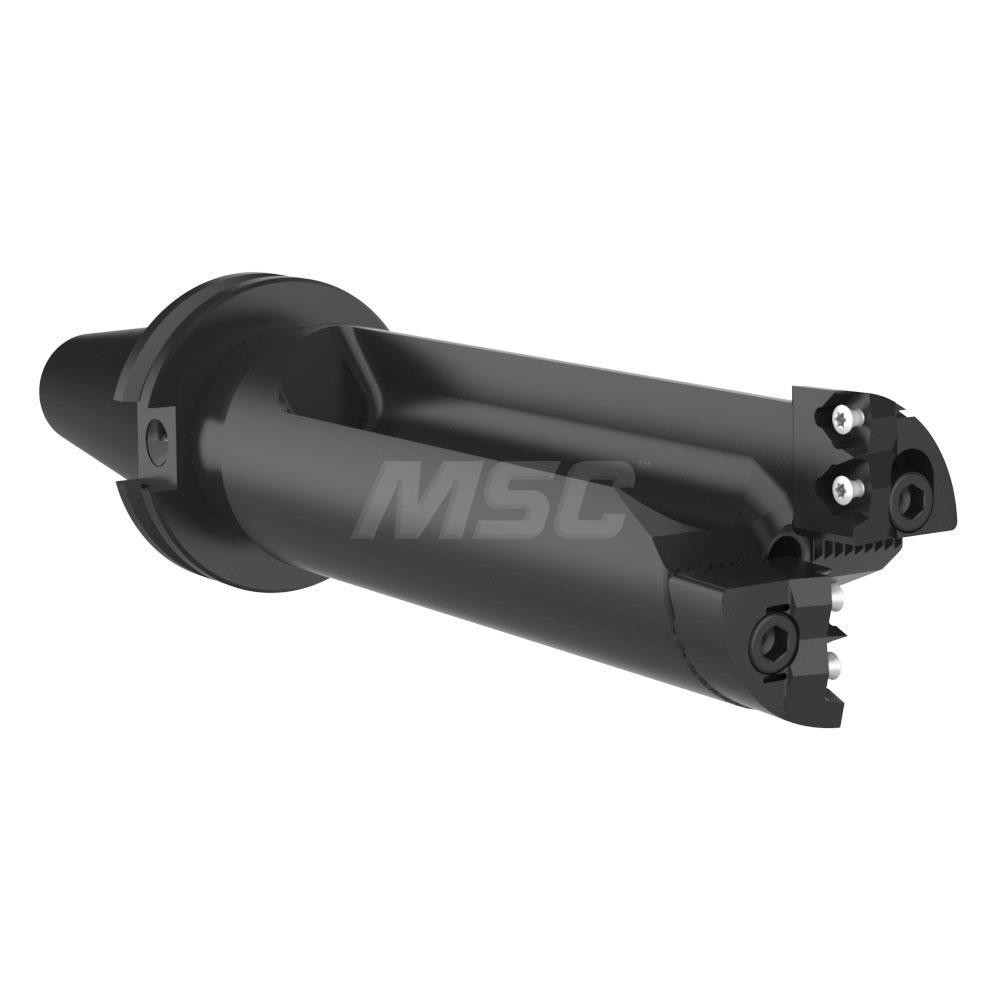

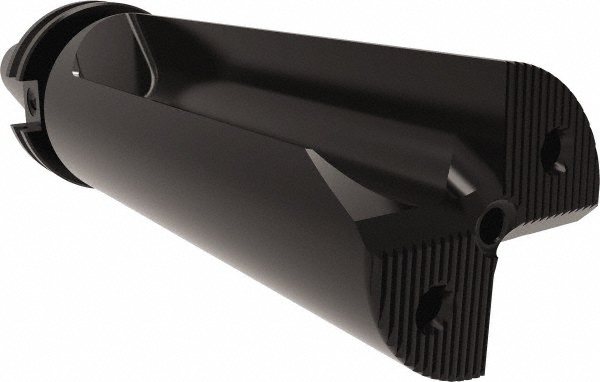

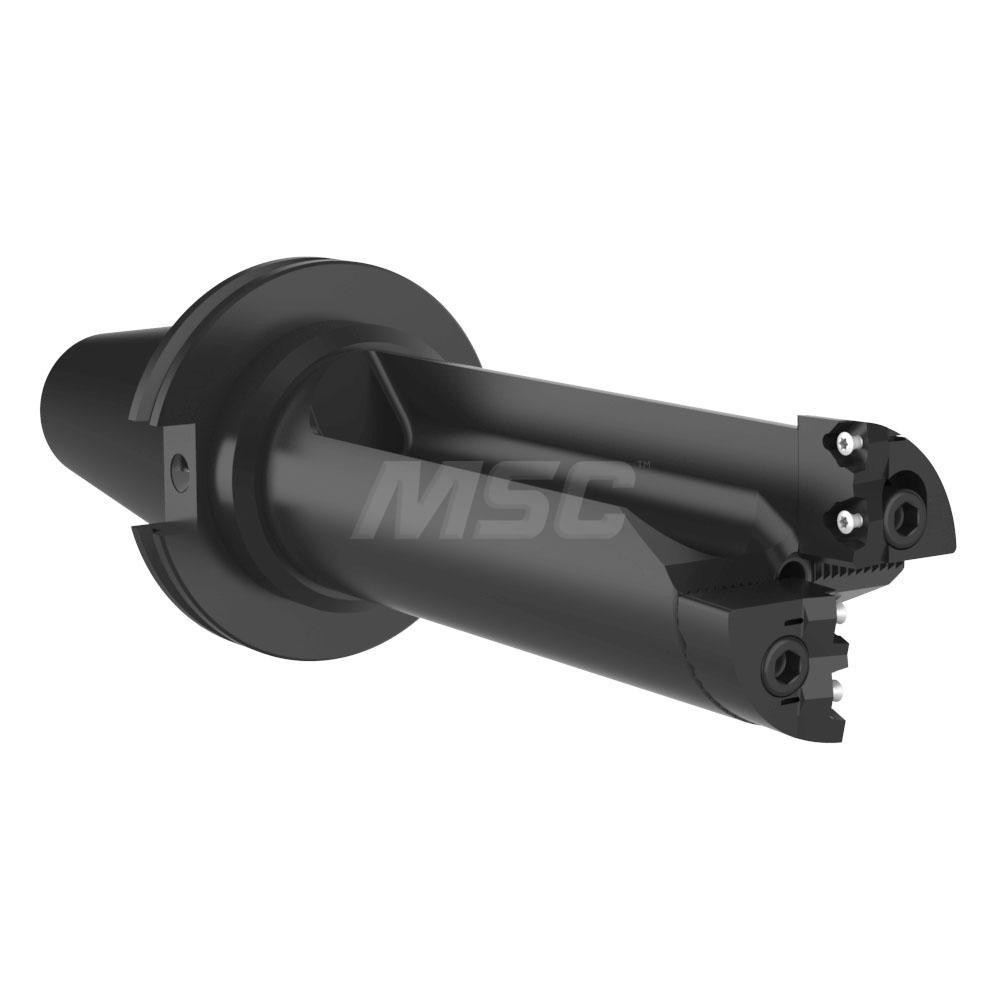

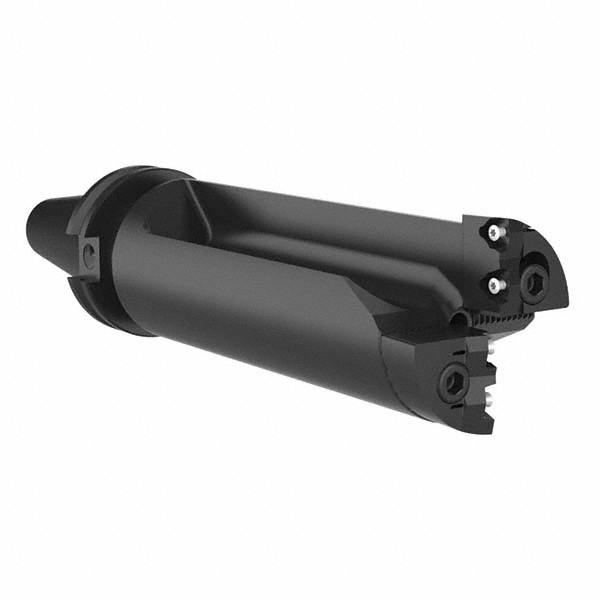

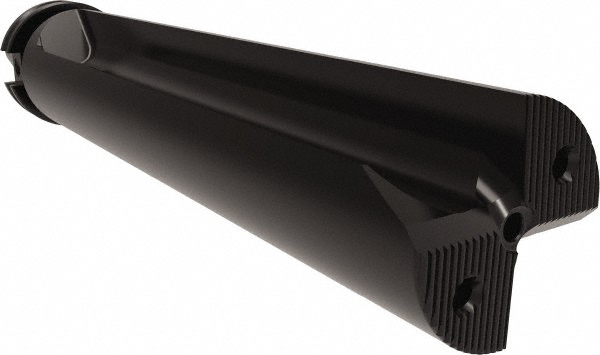

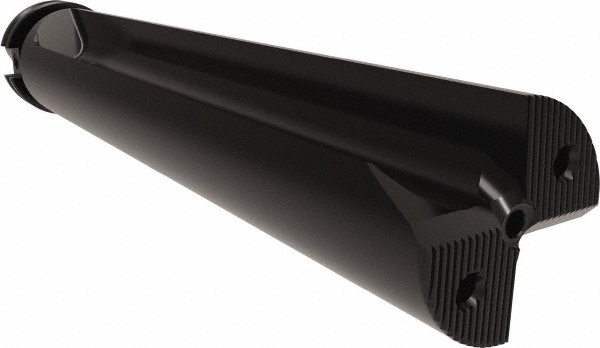

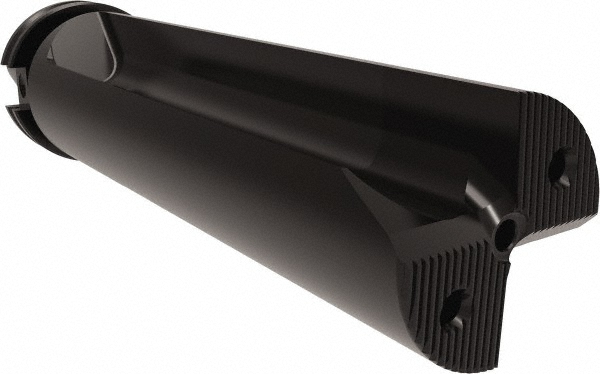

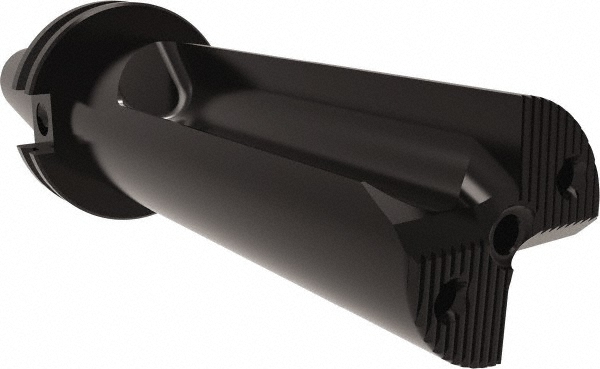

Weldon Flat & Flange Shank, Uses OP 05T308 Inserts, Series R42
| Compatible Drill Style | R |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 2.6000 |
| Maximum Drill Depth (Inch) | 9-13/64 |
| Maximum Drill Depth (Decimal Inch) | 9.2031 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-3/4 |
| Shank Diameter (Decimal Inch) | 1.7500 |
| Number of Drill Inserts | 4 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 7.0000 to 10.0000 |
| Tool Material | Steel |
| Compatible Insert Style | OP |
| Compatible Insert Size Code | 05T308 |
| Drill Depth by Diameter Ratio | 3.5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 14.3281 |
| Overall Length (Inch) | 14-21/64 |
| Series | R42 |
| Flute Length (Decimal Inch) | 9.2031 |
| Body Length (Decimal Inch) | 11.6406 |
| Shank Length (Decimal Inch) | 2.6875 |
| Modular Connection Size | CAT40 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3125 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | OP-05T308 |
| Collar Diameter (Decimal Inch) | 2.5000 |
| Insert Lock Screw | IS-10-1 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
