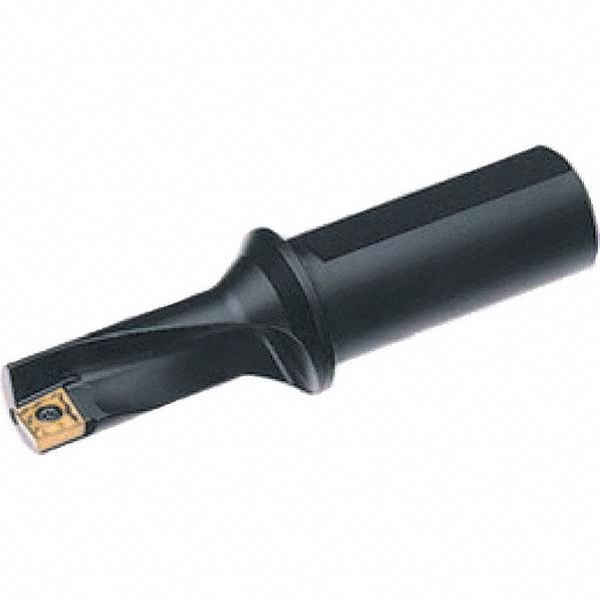

Weldon Flat & Flange Shank, Uses XC.. 1705.. Inserts, Series EC 32
| Compatible Drill Style | EC |
|---|---|
| Maximum Drill Diameter (mm) | 32.00 |
| Maximum Drill Depth (mm) | 72.00 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Left Hand |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | XC.. |
| Compatible Insert Size Code | 1705.. |
| Drill Depth by Diameter Ratio | 2.25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | EC 32 |
| Flute Length (mm) | 72.00 |
| Body Length (mm) | 72.00 |
| Shank Length (mm) | 86.00 |
| Tool Application | Drilling; Boring |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.6300 |
| Insert Size (mm) | 16.00 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | XC..1705.. |
| Collar Diameter (mm) | 50.00 |
| Insert Lock Screw | 11801441 |
| Coolant Through | Yes |
| Country of Origin | Bulgaria |
| undefined | undefined |
| MSC Number | MSC# 92746031 |
