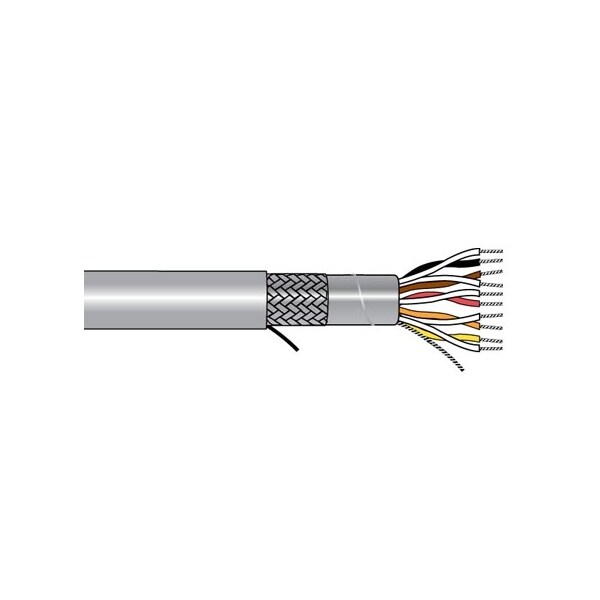

22-1P STR TNC PVC FOIL+70%, BRD SHD PVC JKT CM 300V 75C, 1000FT
| Jacket Color | Slate |
|---|---|
| Jacket Material | PVC |
| Number of Conductors | 1 |
| Standards | CE; CSA FT4; CSA CMG; UL CM; UL AWM 2464; UL AWM 10002; UL VW-1; IEC 60332-1; IEC 60332-2; UL 60C OIL |
| Conductor Size | 22 AWG (AMERICAN WIRE GAUGE) |
| Stranding | 7 x 30 |
| Wire Size | 22 AWG |
| Voltage | 300 V |
| Outside Dia. | 0.196 in |
| Color Code | Gray (Slate) |
| Length | 12 |
| Insulation Material | Pvc-Polyvinyl Chloride |
| Shielding | Braid, FOIL |
| Temperature Rating | 105 Degrees Centigrade |
| Plenum | General Purpose |
| Construction | Overall Foil & Braid |
| CSA | FT4 VERTICAL FLAME TEST - CABLES IN CABLE TRAYS |
| Shield Type | Braid |
| Screen/Shield | Yes |
| Jacketing Material | Pvc-Polyvinyl Chloride |
| Spec Nbr Ul Style | UL STYLE, 2464 |
| Conductor Type | Stranded Conductor |
| Voltage Rating | 300 V AC |
| Material | Tinned Copper |
| Conductor Count | 1 Pair |
| NEC Rating | UL LISTED ART 800 |
| Package Quantity | 1 |
