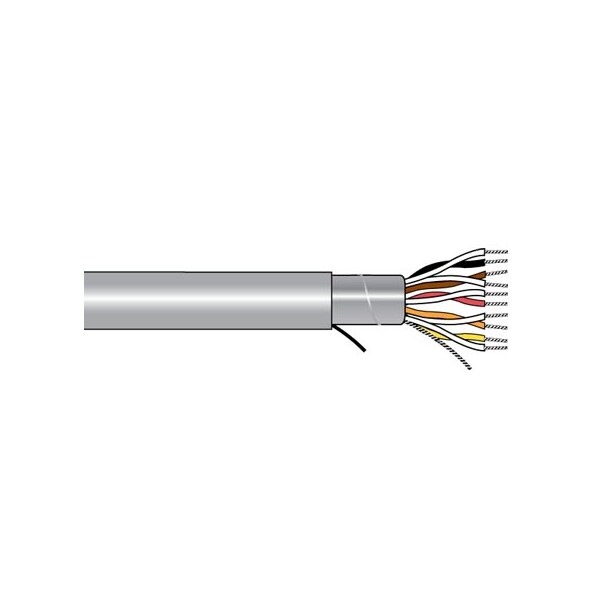

22-3P STR TNC PVC FOIL SHD, PVC JKT CM 300V 75C AWM 80C, ROHS, 1000FT
| Color Code | Gray (Slate) |
|---|---|
| Conductor Size | 22 AWG (AMERICAN WIRE GAUGE) |
| Insulation Material | Srpvc-Semi-Rigid Polyvinyl Chloride |
| Jacketing Material | Pvc-Polyvinyl Chloride |
| Plenum | General Purpose |
| Screen/Shield | Yes |
| Conductor Count | 3 Pairs |
| Conductor Type | Stranded Conductor |
| Construction | Overall Shield & Drain |
| Voltage Rating | 300 V AC |
| NEC Rating | UL LISTED ART 800 |
| Spec Nbr Ul Style | UL STYLE, 2464 |
| Material | Tinned Copper |
| Temperature Rating | 105 Degrees Centigrade |
| CSA | FT4 VERTICAL FLAME TEST - CABLES IN CABLE TRAYS |
| Shield Type | Mylar, Foil Shielded - Alum |
| Package Quantity | 1 |
