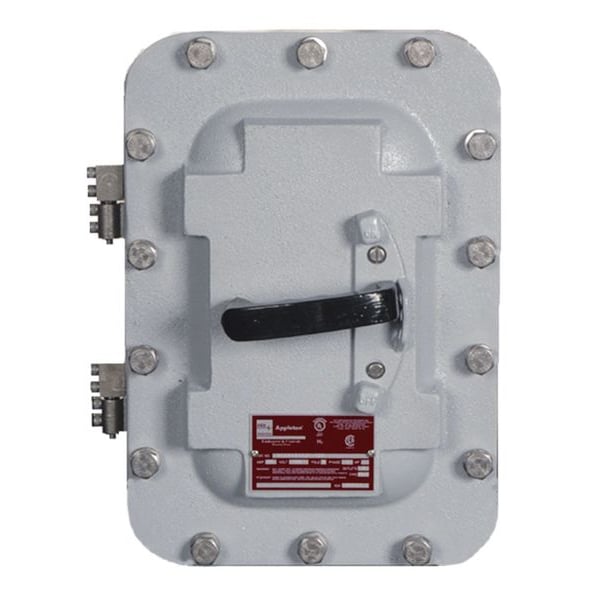

Hazardous Location Circuit Breaker, AE Series, 100A, 3 Pole, 240V AC, 18kA at 240V AC
| Item | Hazardous Location Circuit Breaker |
|---|---|
| Series | AE |
| Amps | 100A |
| Number of Poles | 3 |
| AC Voltage Rating | 240V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Actuator | Non-Interchangeable Trip |
| Max. AIR Rating | 18kA at 240V AC |
| Instantaneous Trip | Fixed |
| Terminal Connection | Lug |
| Frame Size | 100/EHD |
| Width | 11 in |
| Depth | 8.97 in |
| Height | 20-1/2 in |
| DC Voltage Rating | 125/250V DC |
| Features | Dust-Ignitionproof, Explosionproof, External Flange Maximizes Internal Space, External Operating Handle with Stops for Limiting Handle Travel, Standard Outlets Top and Bottom for Line and Load Wiring, Watertight |
| Housing Material | Copper Free Aluminum |
| Conduit Size | 2 in |
| Number of Outlets | 2 |
| AIR @ 240VAC | 18kA |
| Enclosure Rating | NEMA 4, 4X |
| Max. Wire Size | 1/0 AWG |
| Safety Rating | Class I, Division I and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III |
| Min. Wire Size | 14 AWG |
| AIR @ 480VAC | 14 kA |
| Standards | C22.2 No. 25, C22.2 No. 30, C22.2 No. 4, C22.2 No. 5, CSA Certified (800A Max): 1324917, CSA Standard: C22.2 No. 0, UL Classified: E84577, UL Standard: UL 1203 |
| Circuit Breaker Included | Cutler-Hammer |
| Length (Straight Wireway) | 20-1/2 in |
| Switch Type | Non-Interchangable Trip |
| Length | 20-1/2 in |
| Package Quantity | 1 |
