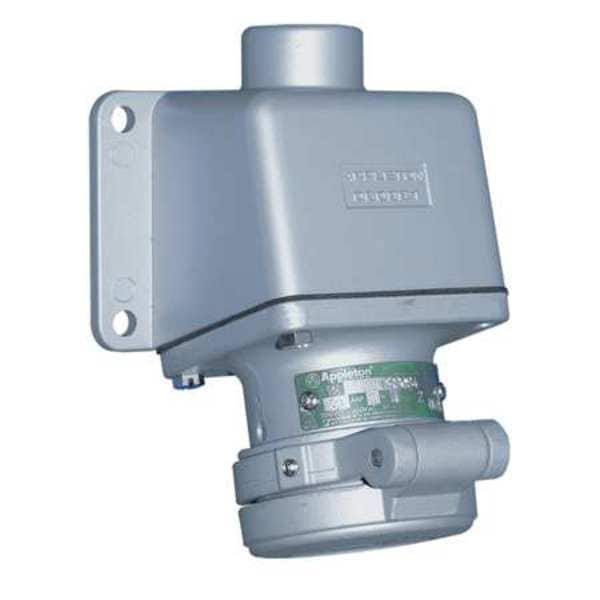

Pin & Sleeve Receptacle, 30 A, 600V AC, Single Phase, 4 Pole, Style 2 Grounding, NEMA 3, 3R, 4, 4X
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 600V AC |
| Phase | Single |
| Number of Poles | 4 |
| Number of Wires | 3 |
| IP Rating | Not Rated |
| NEMA Enclosure Rating | 4X, 4, 3, 3R |
| Wire Connection Type | Screw Terminals |
| Flange Type | Flanged |
| Switch Rated | Not Applicable |
| Grounding Style | Style 2 |
| Housing Color | Gray |
| Cap Type | Screw-On Cap |
| Standards | NEC/CEC |
| Resistance Properties | Corrosion Resistant |
| Material | Copperfree Aluminum |
| Voltage | 600V AC |
| HP | 20 hp |
| Amps | 30 |
| NEMA Rating | 3, 3R, 4, 4X |
| Features | Locking Collar to Secure 60A or 100A Plug/Connector Connections, Plugs May Be Withdrawn in an Emergency Under Full Rated Loads without Separate Disconnect Switch |
| UL 94 Flammability Rating | Not Rated |
| Insulation Material | Fiberglass-Reinforced Polyester |
| Minimum Wire Size | 10 AWG |
| Minimum Operating Temperature | -13 deg F |
| Market | Industrial |
| For Minimum Cable Diameter | 1/2 in |
| Horsepower Rating | 20 HP |
| Hub Type | Dead End, Feed Through |
| Housing Material | Copper-Free Aluminum |
| Flange Height | 3.38 in |
| Flange Width | 3.38 in |
| Connection Orientation | 15 Degrees Elbow |
| Power Indicating Light | No |
| Maximum Wire Size | 6 AWG |
| Includes Mounting Hardware | Yes |
| Maximum Operating Temperature | 104 deg F |
| Shrouded | Yes |
| Face Diameter | 3.38 in |
| Grounding | Grounded |
| Number of Gangs | 1 |
| Flange Diameter | Not Applicable |
| For Maximum Cable Diameter | 1-1/8 in |
| Reverse Service | Yes |
| Contact Material | Copper |
| Package Quantity | 1 |
