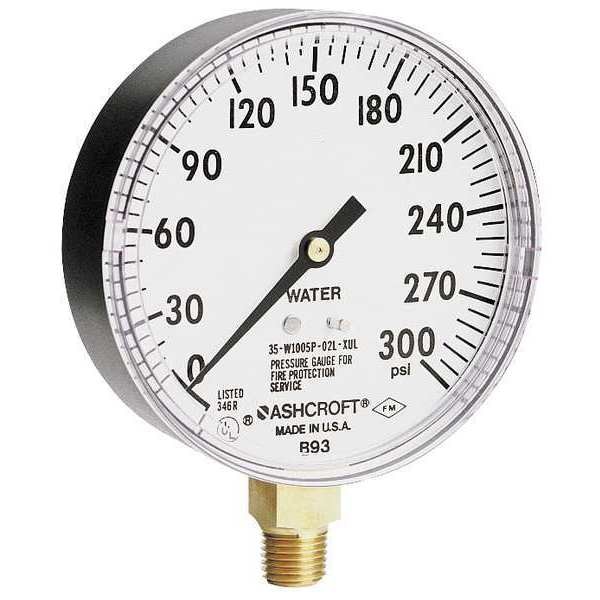

Pressure Gauge, 0 to 300 psi, 1/4 in MNPT, Plastic, Black
| Item | Fire Sprinkler System Pressure Gauge |
|---|---|
| Material | ABS |
| Gauge Lens Material | Polycarbonate |
| Gauge Case Color | Black |
| Liquid Filled | No |
| Gauge Panel Mountable | No |
| Color | Black |
| Gauge Sensor Material | Phosphor Bronze |
| Calibration Certificate Included | No |
| Range | 0 to 300 psi |
| Gauge Primary Range Units | psi |
| Basic Gauge Case Material | Plastic |
| Gauge Case Material | ABS Plastic |
| Gauge Nominal Dial Size | 3 1/2 in |
| Gauge Primary Range Smallest Graduation | 5 |
| Basic Gauge Wetted Parts | Brass / Bronze |
| Pressure and Vacuum Gauge Type | Pressure Gauge |
| Connection Location | Lower |
| Basic Gauge Socket Material | Brass |
| Dial Size (In.) | 3-1/2 |
| Gauge Accuracy | +/-3-2-3% |
| Gauge Primary Range Values | 0 to 300 |
| Gauge Connection Type | MNPT |
| Smallest Graduation | 5 psi |
| Series | 1005P |
| Case Color | Black |
| Basic Gauge Lens Material | Plastic |
| Connection Size | 1/4 in NPT |
| Basic Gauge Sensor Material | Bronze |
| Operating Temp. Range | -40 Degrees to 150 Degrees F |
| Gauge Connection Location | Bottom |
| Gauge Socket Material | Brass |
| Diameter | 3.7 in |
| Graduations | 50 psi |
| Gauge Connection Size | 1/4 in |
| Accuracy | +/-3-2-3% |
| Gauge Application | Fire Sprinkler Systems |
| Max. Pressure (PSI) | 300 |
| Application | Fire Sprinkler Systems |
| Case Material | ABS Plastic |
| Socket Material | Brass |
| Standards | UL 393 |
| Ambient Operating Temperature Range | -40 to 150 deg F |
| Reads Head Pressure | No |
| Accuracy Grade | ASME B40.100 Grade B |
| Pressure Gauge Type | Fire Sprinkler System Gauge |
| Case Diameter | 3.7 in |
| Freeze Resistant Movement | No |
| Movement Material | Polyester |
| Pointer Material | Aluminum |
| Pressure Range Type | Pressure |
| Case Construction | ABS Plastic |
| Primary Scale Units | psi |
| Process Connection Location | Bottom |
| Accuracy Scale | Mid-Scale |
| Compatible Process Media | Air, Water |
| Removable Bezel | No |
| Dial Face Material | Aluminum |
| Hazardous Location Rating | Not Rated |
| Primary Pressure Range | 0 to 300 |
| Process Temperature Range | -40 Degrees to 150 Degrees F |
| Movement Type | PowerFlex |
| Lens Material | Polycarbonate |
| Pointer Color | Black |
| Process Connection Size | 1/4 in |
| Sensor Material | Phosphor Bronze |
| Case Depth | 1.14 in |
| Sensor Type | Bourdon Tube |
| Process Connection Gender | Male |
| IP/NEMA Rating | Not Rated |
| Scale Type | Single |
| Nominal Dial Size | 3 1/2 in |
| Process Connection Type | NPT |
| Dial Color | White |
| Bezel Mounting Type | No Bezel |
| Operating Temperature - Maximum | 150 Degrees F |
| Nominal Dial Diameter | 3 1/2 in |
| Process Media Temperature - Maximum | 150 Degrees F |
| Process Media Temperature - Minimum | -40 Degrees F |
| Operating Temperature - Minimum | -40 Degrees F |
| Country of Origin (subject to change) | Brazil |
| Package Quantity | 1 |
