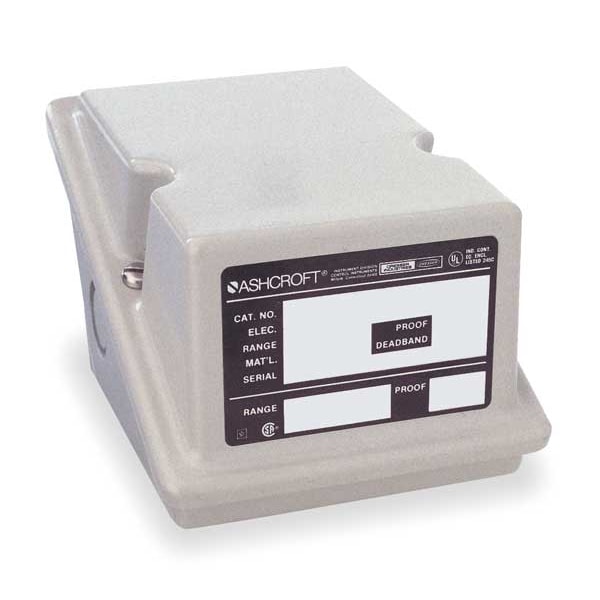

Interruptor de presión, (1) puerto, 1/4 pulg. FNPT, DPST, 20 a 200 psi, acción estándar.
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4 in FNPT |
| Pressure Switch Factory On/Off Setting | 90% of Range |
| Pressure Switch Differential | 18 to 180 psi |
| Pressure Switch Range | 20 to 200 psi |
| Pressure Switch Electrical Contact Form | DPST |
| Pressure Switch Action | Standard |
| Action | Standard |
| Actuation Type | Diaphragm |
| Differential | 18 to 180 psi |
| Factory On/Off Setting | 90% of Range |
| AC Contact Rating | 10A @ 125/250V |
| Series | L |
| NEMA Rating | 4, 4X |
| Range | 20 to 200 psi |
| Port Type | 1/4 in FNPT, Port |
| Contact Form | DPST |
| DC Contact Rating | 0.25A @ 250V, 0.5A @ 125V |
| IP Rating | IP66 |
| Standards | 3A Approved, CE, CRN, CSA, RoHS, UL Listed |
| Overall Depth | 0.24 in |
| NEMA Enclosure Rating | 4X |
| Deadband Adjustability | Adjustable |
| Pressure - Minimum | 20 psi |
| Overall Height | 0.19 in |
| Proof Pressure | 1,000 psi |
| Differential Pressure - Minimum | 18 psi |
| Overall Width | 0.16 in |
| Operating Temperature - Minimum | -20 deg F |
| Pressure - Maximum | 200 psi |
| Number of Pressure Connection Ports | 4 |
| Manufacturer Warranty Length | 1 yr |
| Differential Pressure - Maximum | 180 psi |
| Operating Temperature - Maximum | 150 deg F |
| Pressure Connection Type | 1/4" FNPT, 1/2" FNPT, 1/2" MNPT |
| Media Temperature - Maximum | 70 deg F |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D |
| Media Temperature - Minimum | 50 deg F |
| Package Quantity | 1 |
