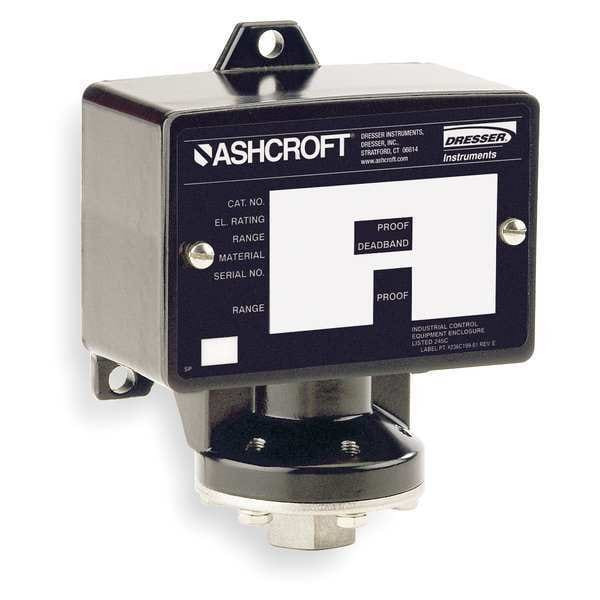

Interruptor de presión, (1) puerto, 1/4 de pulgada de rosca hembra, SPDT, de 100 a 1000 psi, acción estándar
| Item | Pressure Switch |
|---|---|
| Pressure Switch Port Type | (1) Port, 1/4 in FPT |
| Pressure Switch Factory On/Off Setting | 90% of Range |
| Pressure Switch Differential | 30 to 110 psi |
| Pressure Switch Range | 100 to 1,000 psi |
| Pressure Switch Electrical Contact Form | SPDT |
| Pressure Switch Action | Standard |
| Range | 100 to 1,000 psi |
| AC Contact Rating | 15A @ 125/250/480V |
| Factory On/Off Setting | 90% of Range |
| Action | Standard |
| Differential | 30 to 110 psi |
| Series | B |
| NEMA Rating | 13, 3, 4, 4X |
| Contact Form | SPDT |
| Port Type | 1-Port 1/4 in FPT |
| Actuation Type | Diaphragm |
| DC Contact Rating | 0.25A @ 250V, 0.5A @ 125V, 6A @ 30V |
| IP Rating | IP66 |
| Standards | 3A Approved, CE, CRN, FM Listed, RoHS, UL Listed |
| Pressure - Minimum | 10 psi |
| Proof Pressure | 12,000 psi |
| Operating Temperature - Minimum | -20 deg F |
| Deadband Adjustability | Adjustable |
| Media Temperature - Minimum | 50 deg F |
| Pressure Connection Type | 1/4" FNPT |
| Differential Pressure - Minimum | 30 psi |
| Manufacturer Warranty Length | 1 yr |
| Media Temperature - Maximum | 70 deg F |
| Operating Temperature - Maximum | 150 deg F |
| Overall Height | 5.11 in |
| Hazardous Location Specification | Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G |
| NEMA Enclosure Rating | 4X |
| Pressure - Maximum | 1,000 psi |
| Number of Pressure Connection Ports | 4 |
| Differential Pressure - Maximum | 110 psi |
| Overall Width | 4 in |
| Overall Depth | 3.31 in |
| Package Quantity | 1 |
