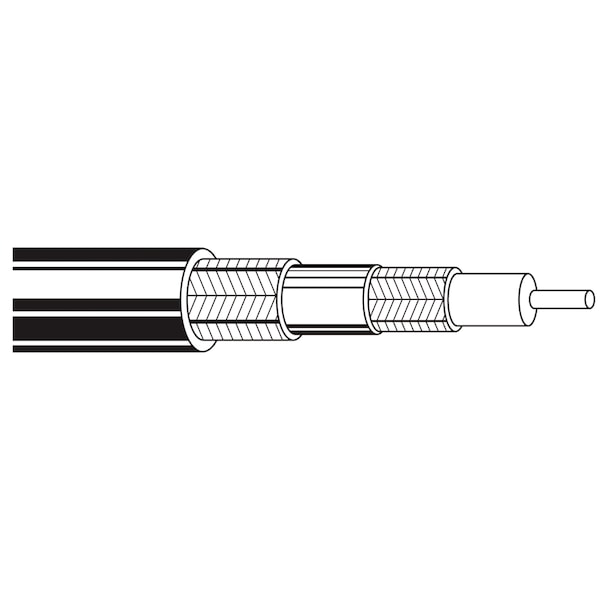

RG59 20 SOL BC FFEP 2-95% BC, BRD SHDS FEP JKT TRIAX, 1000FT
| Shielding | Multiple, Specialty |
|---|---|
| Length | 1,000 ft |
| Color | Black |
| Impedance | 75 ohms (Nominal Impedance) |
| Insulation Material | FEP |
| Conductor Material | Bare Copper |
| Suitability - Indoor | Yes |
| CSA Flammability | FT6 |
| AWG Size | 20 |
| UL voltage rating | 300 V RMS |
| Material@InnerShield01 | Copper |
| UL Temp Rating | 200°C |
| Conductor Count | 1 |
| EU Directive 2015/863/EU | Yes |
| UL Flammability | NFPA 262 |
| Put-Up Type | Reel |
| Conductor Configuration | 1 Coax / Triax |
| Material@Insulation01 | FEP - Fluorinated Ethylene Propylene |
| Jacket | FEP |
| Environmental Space | Indoor - Plenum |
| Stranding@Conductor1 | Solid |
| EU CE Mark | Yes |
| Jacketing Material | Pvdf-Polyvinylidene Fluoride |
| Plenum | Plenum |
| Outdoor | Yes Is Outdoor Grade Material |
| CSA | FT6 HORIZONTAL FLAME & SMOKE TEST |
| Package Quantity | 1 |
