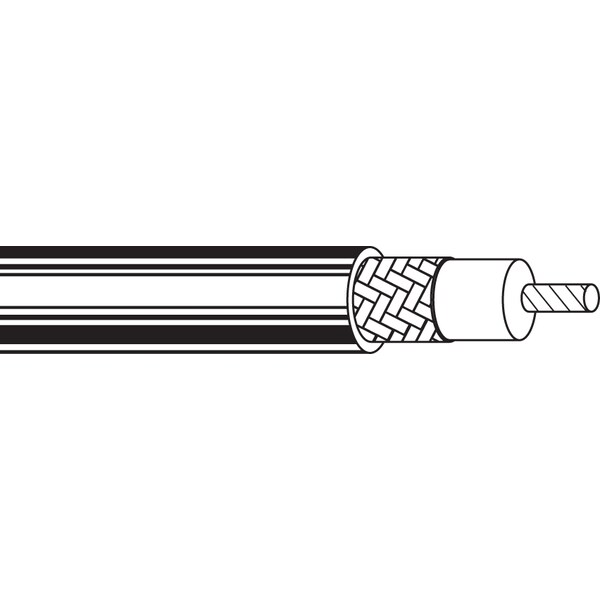

RG59 22 STR BC FFEP 95% BC BRD, SHD FEP JKT CMP, 75 OHM BLK, 1000FT
| Shielding | Braid |
|---|---|
| Length | 1,000 ft |
| Impedance | 75 ohms (Nominal Impedance) |
| Insulation Material | FEP |
| Color | Black |
| Material@Insulation01 | FEP - Fluorinated Ethylene Propylene |
| Conductor Count | 1 |
| Jacket | FEP |
| Environmental Space | Indoor, Outdoor |
| Suitability - Outdoor | Yes |
| Stranding@Conductor1 | 7x30 |
| Conductor Configuration | 1 Coax / Triax |
| UL Flammability | NFPA 262 |
| EU CE Mark | Yes |
| EU Directive 2015/863/EU | Yes |
| AWG Size | 22 |
| CPR Euroclass | Eca |
| Suitability - Aerial | Yes - When supported by messenger wire |
| UL voltage rating | 300 V RMS |
| UV Resistance | Yes |
| Suitability - Indoor | Yes |
| Put-Up Type | Reel |
| Outdoor | Yes Is Outdoor Grade Material |
| Jacketing Material | Fep-Fluorinated Ethylene Propylene |
| Plenum | Plenum |
| Material | Bare Copper |
| CSA | FT6 HORIZONTAL FLAME & SMOKE TEST |
| Package Quantity | 1 |
