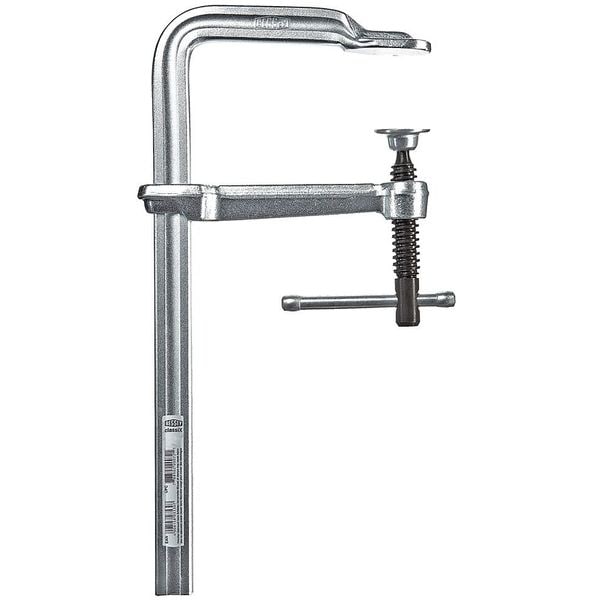

10 in Bar Clamp, Tempered Drop-Forged Steel Handle and 4 3/4 in Throat Depth
| Handle Material | Tempered Drop-Forged Steel |
|---|---|
| Throat Depth (In.) | 4-3/4 |
| Application | Industrial |
| Pad Type | Standard, Swivel |
| Bar Width (In.) | 13/32 |
| Swivel Pad (In.) | 1-1/4 |
| Screw Size (In.) | 5/8 |
| Type | ClassiX(R) - Standard Pad |
| Bar Thickness (In.) | 55/64 |
| Handle Length (In.) | 3-3/8 |
| Swivel Type | Non-Replaceable |
| Clamping Surface D (In.) | 15/16 |
| Item | Bar Clamp |
| Clamping Surface W (In.) | 1-15/16 |
| Clamp Face (In.) | 15-16 x 1-15/16 |
| Nominal Clamping Pressure | 1,000 |
| Max. Jaw Opening (In.) | 10 |
| Load Capacity (Lb.) | 1,000 |
| Bar Size (In.) | 5/16 in |
| Nominal Rail Size (In.) | 55/64 x 13/32 |
| Spindle Dia. (In.) | 5/8 |
| Bar Material | Steel |
| Opening (In.) | 10 |
| Clamping Force1 | 1,000 lb |
| Bar Width | 7/16 in |
| Clamping Capacity1 | 10 in |
| Spindle Diameter1 | 5/8 in |
| Bar Thickness | 7/8 in |
| Handle Length | 3-3/8 in |
| Throat Depth1 | 4-3/4 in |
| Jaw Pad Type | Standard |
| Jaw Pad Width | 1-1/4 in |
| Sliding Mechanism | Bar Slide |
| Package Quantity | 1 |
