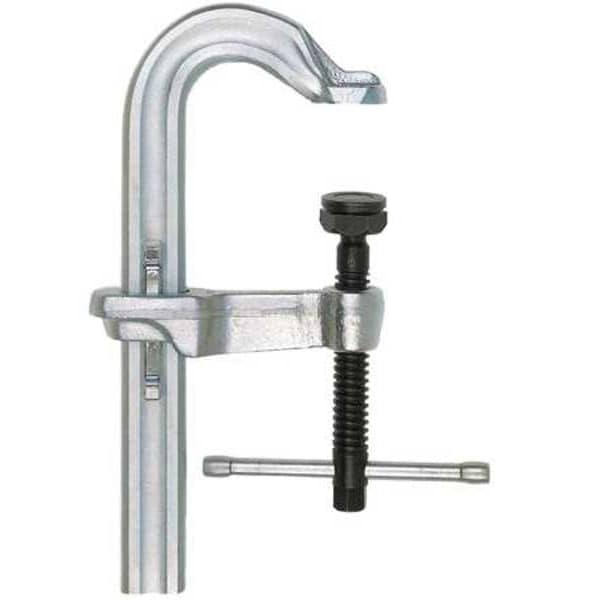

14 in Bar Clamp, Tempered Drop-Forged Steel Handle and 4 in Throat Depth
| Handle Material | Tempered Drop-Forged Steel |
|---|---|
| Throat Depth (In.) | 4 |
| Application | Industrial |
| Includes | Standard Rail Profile, MorPad |
| Clamping Surface W (In.) | 2-3/4 |
| Nominal Clamping Pressure | 8,500 |
| Opening (In.) | 14 |
| Pad Type | Swivel Morpad |
| Bar Thickness (In.) | 1-1/2 |
| Item | Bar Clamp |
| Type | Extra High Pressure 8500HPC |
| Handle Length (In.) | 6-7/8 |
| Load Capacity (Lb.) | 8,500 |
| Nominal Rail Size (In.) | 1-1/2 x 3/4 |
| Bar Width (In.) | 3/4 |
| Screw Size (In.) | 0.85 |
| Clamping Surface D (In.) | 1-3/4 |
| Bar Material | Steel |
| Swivel Type | 35 Degrees Tilt, Replaceable |
| Swivel Pad (In.) | 1-1/2 |
| Max. Jaw Opening (In.) | 14 |
| Spindle Dia. (In.) | 0.85 |
| Bar Size (In.) | 7/16 in |
| Clamp Face (In.) | 1-3/4 x 2-3/4 |
| Function | Clamp |
| Bar Width | 3/4 in |
| Handle Length | 6-7/8 in |
| Spindle Material1 | High Carbon |
| Bar Thickness | 1-1/2 in |
| Throat Depth1 | 4 in |
| Jaw Pad Width | 1-1/2 in |
| Bar Type | Rail |
| Clamping Capacity1 | 14 in |
| Jaw Pad Type | Swivel |
| Clamping Force1 | 8,500 lb |
| Spindle Finish1 | Spatter-Resistant |
| Spindle Diameter1 | 7/8 in |
| Handle Style | Sliding T |
| Sliding Mechanism | Bar Slide |
| Package Quantity | 1 |
